![[IMAGE] of](P_2x5_012_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_012_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_012-2x5 |
| VHDI | 2x5_608 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W48_DVLQDVT | 74B |
| ROC1 | W48_DVLQDVT | 74A |
| ROC2 | W48_DVLQDVT | 73D |
| ROC3 | W48_DVLQDVT | 73B |
| ROC4 | W48_DVLQDVT | 73A |
| ROC5 | W48_DVLQDVT | 41B |
| ROC6 | W48_DVLQDVT | 41C |
| ROC7 | W48_DVLQDVT | 41D |
| ROC8 | W48_DVLQDVT | 42A |
| ROC9 | W48_DVLQDVT | 42B |
Inspected by Lockwood Gale on date 5/31/2007
| LR_dev | 0.043 |
| LL_dev | 0.046 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems, ROC 8, Ch 6,7 ROC 5 Ch 2 |
PLAQUETTE made READY for ENCAPSULATION on 5/31/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/31/2007 by Kozak Brian
PLAQUETTE made READY for testing on 5/31/2007 by Kozak Brian
P_2x5_012_Aon 6/1/2007 9:36 AM
P_2x5_012_A-1on 6/1/2007 3:33 PM
P_2x5_012_A-1on 6/1/2007 3:33 PM
PLAQUETTE TESTED on 2007-06-01 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 172 | 158 | 158 | 154 | 150 | 160 | 160 | 150 | 150 | 158 | |
| Vana | 142 | 144 | 138 | 138 | 144 | 145 | 140 | 134 | 137 | 149 | |
| Cal_Del | 66 | 78 | 68 | 80 | 87 | 100 | 94 | 92 | 89 | 86 | |
| Vthrs_Comp | 92 | 76 | 85 | 88 | 90 | 87 | 84 | 78 | 93 | 89 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 2 | 0 | 4 | 10 | 2 | 1 | 6 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 2 | 0 | 4 | 10 | 2 | 1 | 6 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

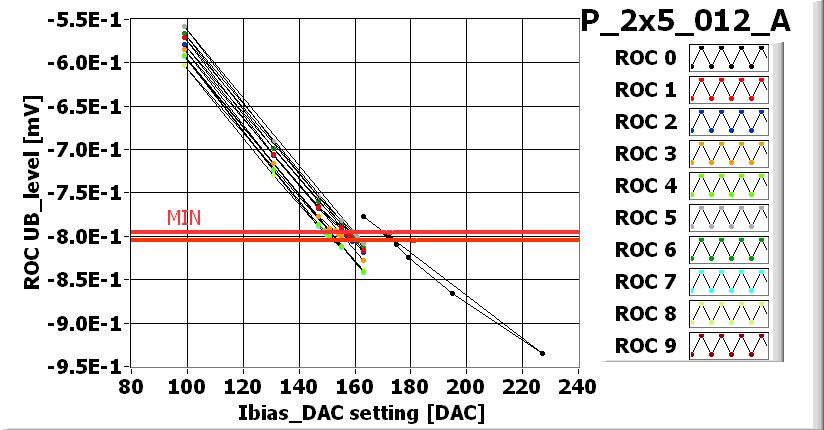

![[IMAGE] of](P_2x5_012_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

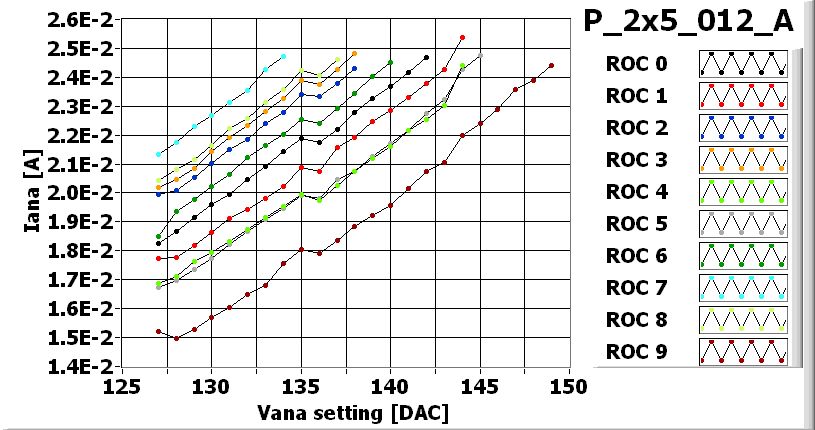

![[IMAGE] of](P_2x5_012_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_012_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_012_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_012_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_012_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 95 | 90 | 115 | 90 | 90 | 95 | 95 | 100 | 95 |
| Vsf | 145 | 150 | 145 | 140 | 145 | 145 | 145 | 140 | 140 | 145 |
| VoffsetOp | 125 | 100 | 90 | 110 | 90 | 85 | 100 | 90 | 125 | 120 |
| VIbias_PH | 100 | 100 | 105 | 100 | 110 | 95 | 100 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_012_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_012_A-1-580-efficiency.jpg)

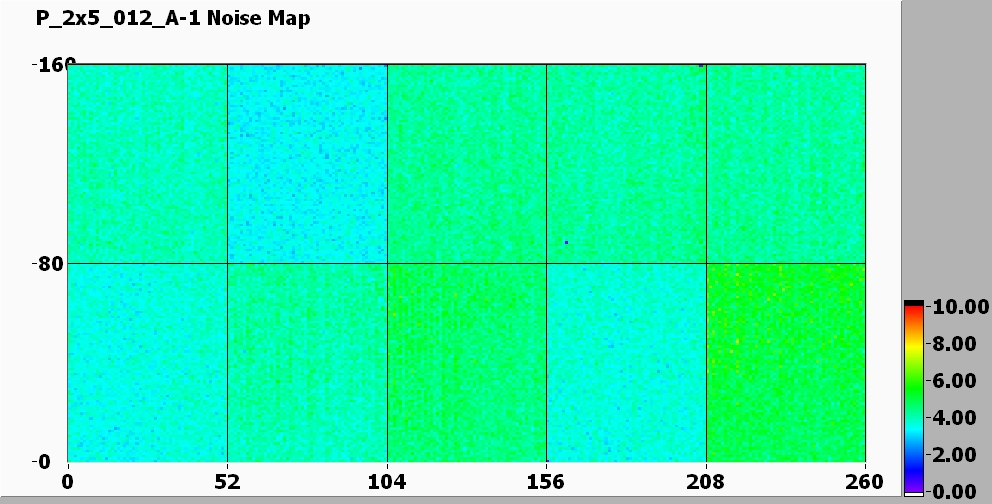

Noise MAP at -200 V
![[IMAGE] of](P_2x5_012_A-1-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_012_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
