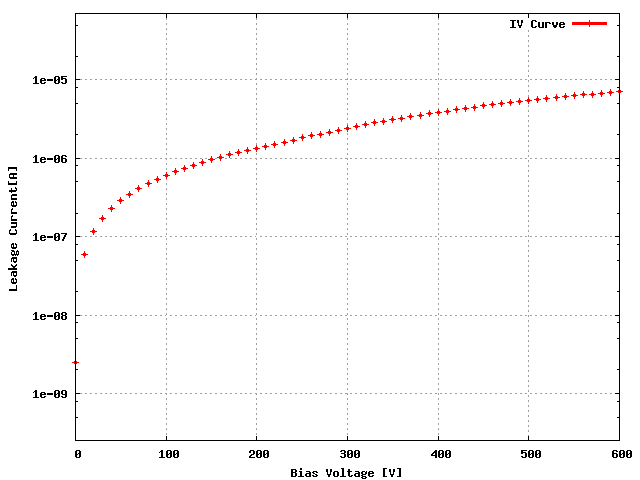

Sensor: S_2x5_012, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W48_DVLQDVT	74B
ROC1	W48_DVLQDVT	74A
ROC2	W48_DVLQDVT	73D
ROC3	W48_DVLQDVT	73B
ROC4	W48_DVLQDVT	73A
ROC5	W48_DVLQDVT	41B
ROC6	W48_DVLQDVT	41C
ROC7	W48_DVLQDVT	41D
ROC8	W48_DVLQDVT	42A
ROC9	W48_DVLQDVT	42B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	172	158	158	154	150	160	160	150	150	158
Vana, VanaData	142	144	138	138	144	145	140	134	137	149
CalDelData and plots	66	78	68	80	87	100	94	92	89	86
VthrCompData and plots	92	76	85	88	90	87	84	78	93	89
TestDdata ,TestD Plots	0	0	6	4	9	652	583	601	340	586
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	BAD	BAD	BAD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.586781 SIGMA = 0.274854
ROC1 NOISE			MEAN = 4.019025 SIGMA = 0.348063
ROC2 NOISE			MEAN = 4.509889 SIGMA = 0.372350
ROC3 NOISE			MEAN = 3.645321 SIGMA = 0.283918
ROC4 NOISE			MEAN = 4.934757 SIGMA = 0.420745
ROC5 NOISE			MEAN = 4.188651 SIGMA = 0.323133
ROC6 NOISE			MEAN = 4.161849 SIGMA = 0.336779
ROC7 NOISE			MEAN = 4.230681 SIGMA = 0.343972
ROC8 NOISE			MEAN = 3.382265 SIGMA = 0.265427
ROC9 NOISE			MEAN = 3.904727 SIGMA = 0.322079
