P_2x5_010

P_2x5_010_A

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_010-2x5
VHDI	2x5_325

ROC ROC wafer Label

ROC0 X54JP2T 17D

ROC1 X54JP2T 17C

ROC2 X54JP2T 17B

ROC3 X54JP2T 17A

ROC4 X54JP2T 16D

ROC5 X54JP2T 03C

ROC6 X54JP2T 03D

ROC7 X54JP2T 04A

ROC8 X54JP2T 04B

ROC9 X54JP2T 04C

ROC	ROC wafer	Label
ROC0	X54JP2T	17D
ROC1	X54JP2T	17C
ROC2	X54JP2T	17B
ROC3	X54JP2T	17A
ROC4	X54JP2T	16D
ROC5	X54JP2T	03C
ROC6	X54JP2T	03D
ROC7	X54JP2T	04A
ROC8	X54JP2T	04B
ROC9	X54JP2T	04C

Inspected by Arndt Kirk on date 2006-07-18

LR_dev 0.035

LL_dev 0.050

FINAL COMMENT by Arndt Kirk No problem assembly. No wirebonding problem

PLAQUETTE made READY for testing on 2006-07-18 by Arndt Kirk

PLAQUETTE TESTED on 2006-7-19 by Stacy Kouba

IV_XML-File

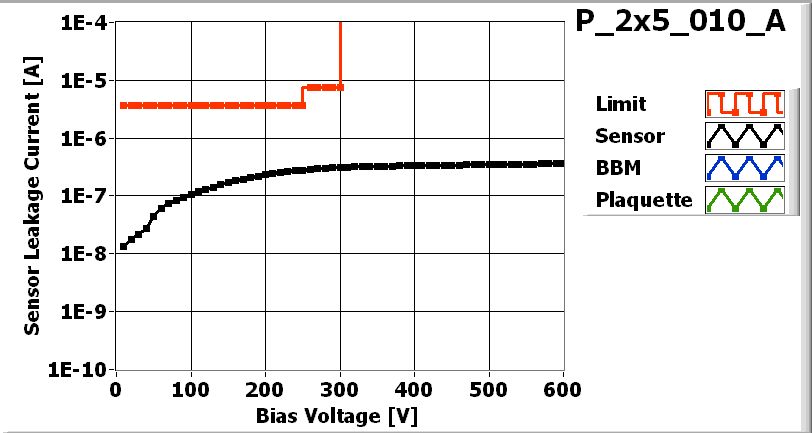

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

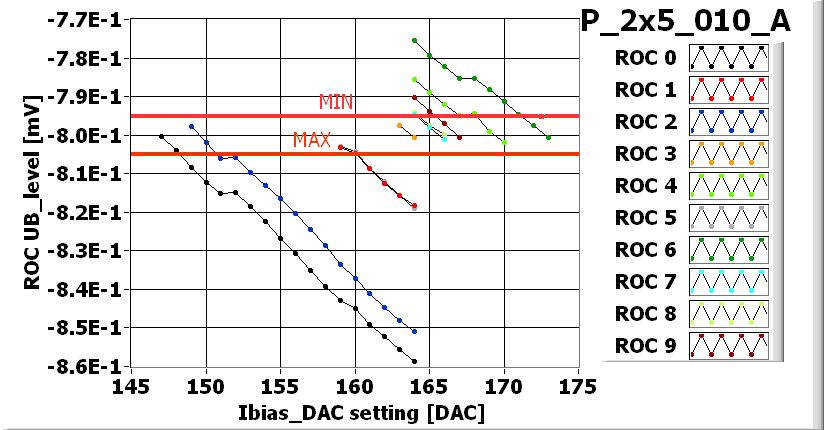

Ibias_DAC	147	159	149	163	170	159	173	166	166	167

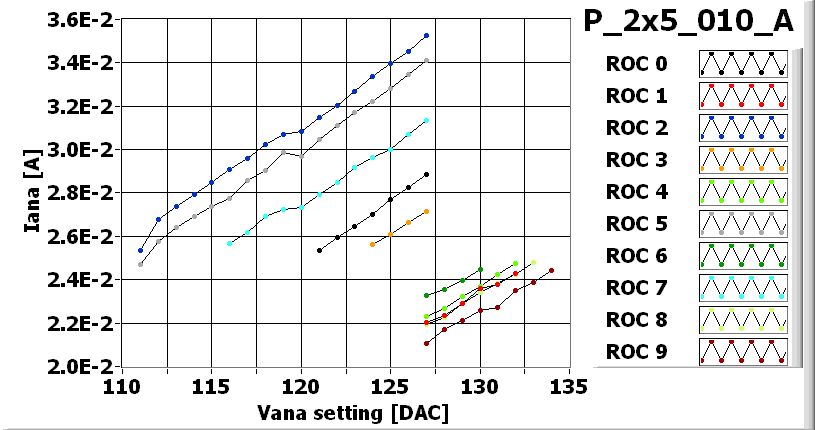

Vana	121	132	111	124	132	111	130	116	133	134
Cal_Del	92	82	80	72	79	95	85	92	86	80
Vthrs_Comp	88	86	77	88	76	77	86	85	77	85
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-07-20

Plaquette assigned to panel P3R_015
