![[IMAGE] of](P_2x5_003_A_IV.jpg)

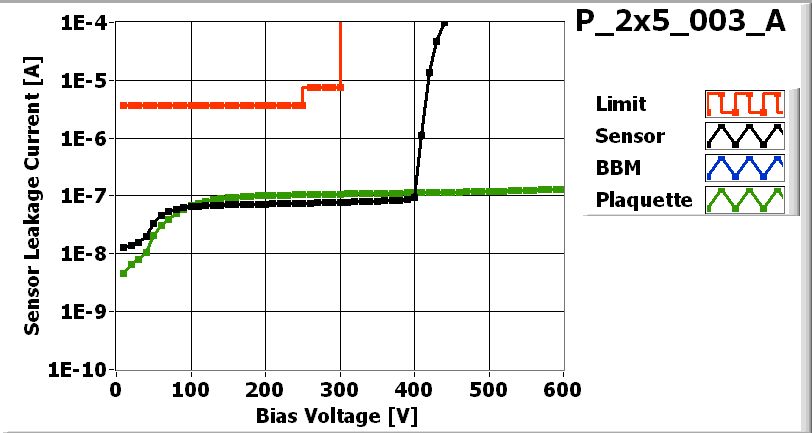

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_003_A_LASER.jpg)

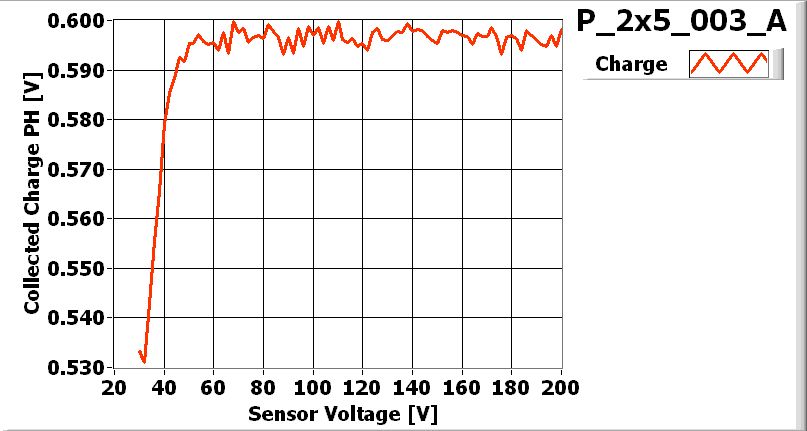

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/18/2008
| Part | ID |
|---|---|
| BBM | BBM_003-2x5 |
| VHDI | 2x5_722 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W53_DXLQY9T | 64C |
| ROC1 | W53_DXLQY9T | 64B |
| ROC2 | W53_DXLQY9T | 64A |
| ROC3 | W53_DXLQY9T | 63B |
| ROC4 | W53_DXLQY9T | 63A |
| ROC5 | W53_DXLQY9T | 38A |
| ROC6 | W53_DXLQY9T | 38B |
| ROC7 | W53_DXLQY9T | 39B |
| ROC8 | W53_DXLQY9T | 20A |
| ROC9 | W53_DXLQY9T | 22A |
Inspected by Lockwood Gale on date 2/22/2008
| LR_dev | 0.054 |
| LL_dev | 0.040 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 9, Ch 34, 2 tries, ROC 8, Ch 17, 3 tries, ROC 6, CH 2,1, 3 tries, ROC 5 Ch 35 5 tries, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/22/2008 by Lockwood Gale
PLAQUETTE encapsulated on 2/23/2008 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/23/2008 by Ozhan Koybasi
P_2x5_003_Aon 2/23/2008 5:44 PM
P_2x5_003_A-1on 2/23/2008 6:04 PM
P_2x5_003_A-2on 2/25/2008 11:05 AM
P_2x5_003_A-2on 2/25/2008 11:05 AM
PLAQUETTE TESTED on 2008-02-25 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 158 | 158 | 154 | 150 | 146 | 142 | 156 | 152 | 148 | 174 | |
| Vana | 149 | 147 | 140 | 146 | 132 | 145 | 138 | 134 | 138 | 135 | |
| Cal_Del | 86 | 79 | 89 | 80 | 93 | 95 | 79 | 88 | 95 | 68 | |
| Vthrs_Comp | 87 | 90 | 85 | 87 | 83 | 88 | 84 | 79 | 80 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 5 | 16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_003_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_003_A_Vana.jpg) |

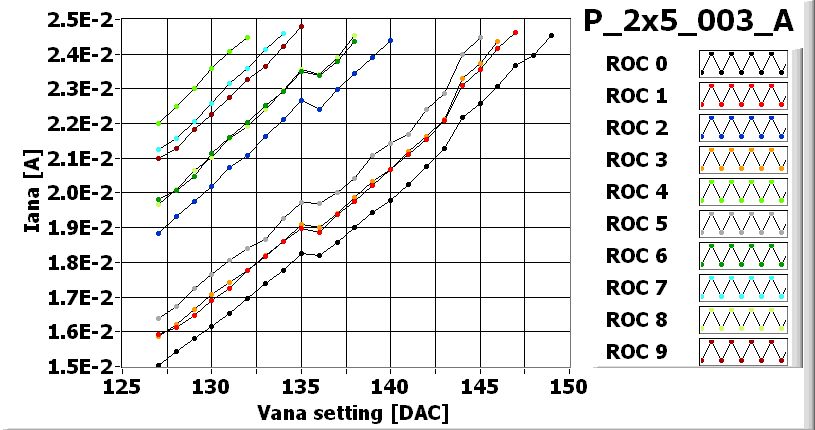

VANA_XML-File |
![[IMAGE] of](P_2x5_003_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_003_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_003_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_003_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 100 | 90 | 100 | 120 | 90 | 90 | 105 | 100 | 140 |
| Vsf | 145 | 150 | 165 | 145 | 140 | 145 | 140 | 140 | 140 | 140 |
| VoffsetOp | 110 | 100 | 95 | 110 | 90 | 95 | 90 | 80 | 90 | 125 |
| VIbias_PH | 105 | 105 | 100 | 105 | 105 | 100 | 110 | 105 | 105 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_003_A-2-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_003_A-2-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x5_003_A-2-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_003_A-2-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
