Sensor: S_2x5_003, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W53_DXLQY9T	64C
ROC1	W53_DXLQY9T	64B
ROC2	W53_DXLQY9T	64A
ROC3	W53_DXLQY9T	63B
ROC4	W53_DXLQY9T	63A
ROC5	W53_DXLQY9T	38A
ROC6	W53_DXLQY9T	38B
ROC7	W53_DXLQY9T	39B
ROC8	W53_DXLQY9T	20A
ROC9	W53_DXLQY9T	22A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	158	158	154	150	146	142	156	152	148	174
Vana, VanaData	149	147	140	146	132	145	138	134	138	135
CalDelData and plots	86	79	89	80	93	95	79	88	95	68
VthrCompData and plots	87	90	85	87	83	88	84	79	80	84
TestDdata ,TestD Plots	1	5	16	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.116441 SIGMA = 0.309458

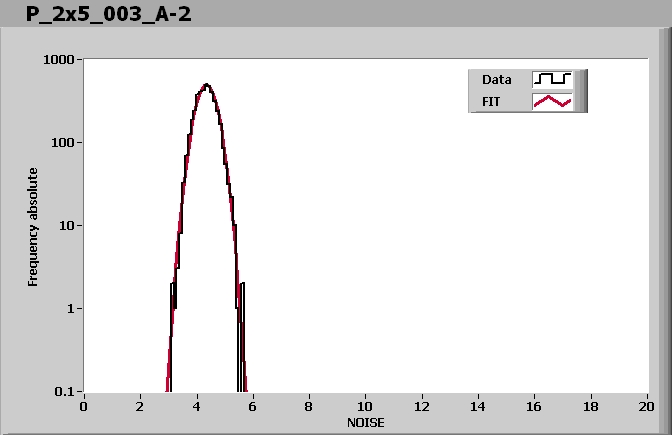

ROC1 NOISE			MEAN = 4.335622 SIGMA = 0.339735

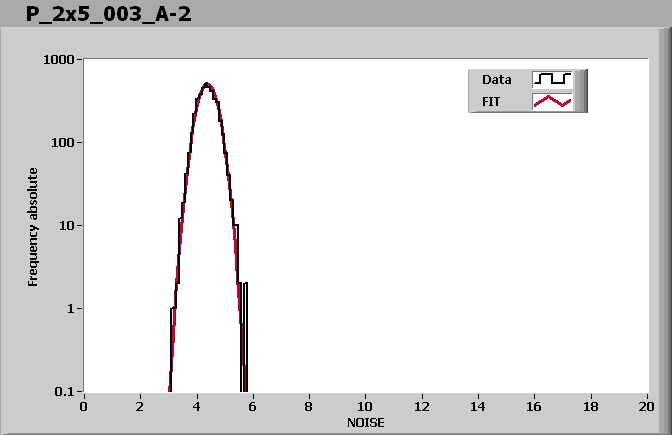

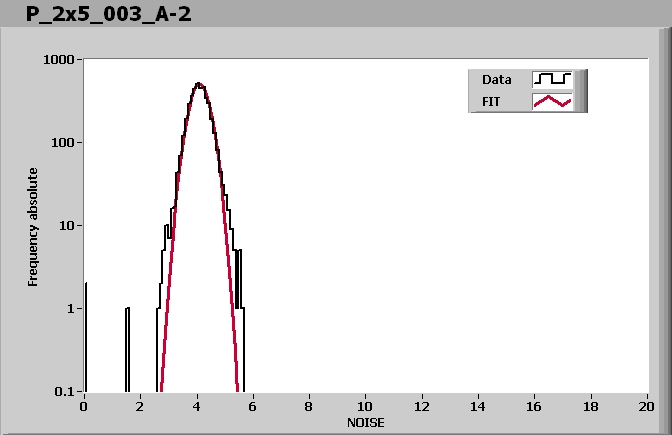

ROC2 NOISE			MEAN = 4.095144 SIGMA = 0.326459
ROC3 NOISE			MEAN = 4.373791 SIGMA = 0.326885
ROC4 NOISE			MEAN = 4.422001 SIGMA = 0.331121

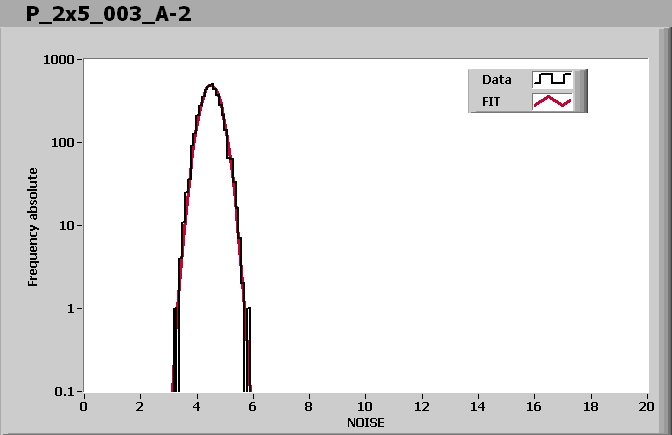

ROC5 NOISE			MEAN = 4.502080 SIGMA = 0.336191
ROC6 NOISE			MEAN = 4.705468 SIGMA = 0.360869
ROC7 NOISE			MEAN = 4.586751 SIGMA = 0.361831
ROC8 NOISE			MEAN = 4.228281 SIGMA = 0.334683
ROC9 NOISE			MEAN = 3.934723 SIGMA = 0.294424

Comment (if any):

P_2x5_003_A-1.html,

P_2x5_003_A.html,

End testing time: 11:34 AM
