P_2x4T_181_C-7

Production testing

Date:5/21/2007

Operator: Emily Grace

start testing time:11:23 AM

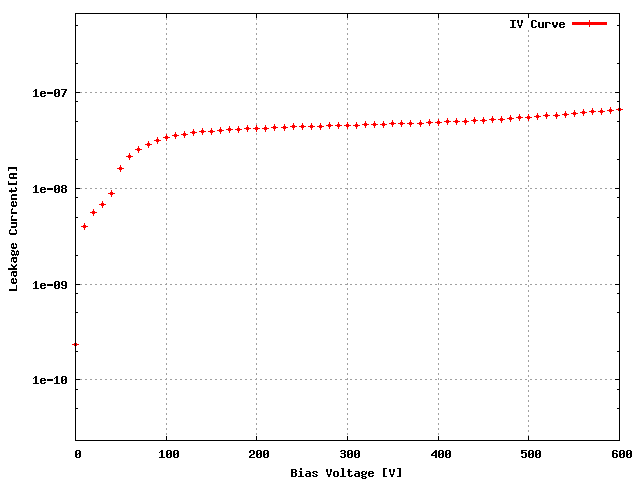

Sensor: S_2x4T_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KBNG0QT37C
ROC1KBNG0QT76D
ROC2KBNG0QT66B
ROC3KBNG0QT58D
ROC4KBNG0QT57B
ROC5KBNG0QT68D
ROC6KBNG0QT58B
ROC7KBNG0QT27C

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 150 174 152 162 160 144 160 154
Vana, VanaData 131 134 137 134 144 144 135 151
CalDelData and plots9779758081807476
VthrCompData and plots7474767881818687
TestDdata ,TestD Plots00020000
LightData ,Light Plots000306600
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD BAD GOOD GOOD

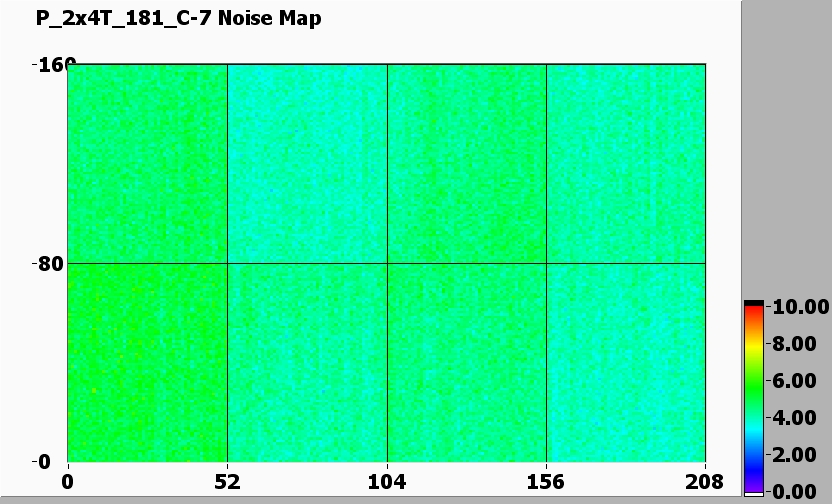

Noise MAP at VMAX

[IMAGE] of

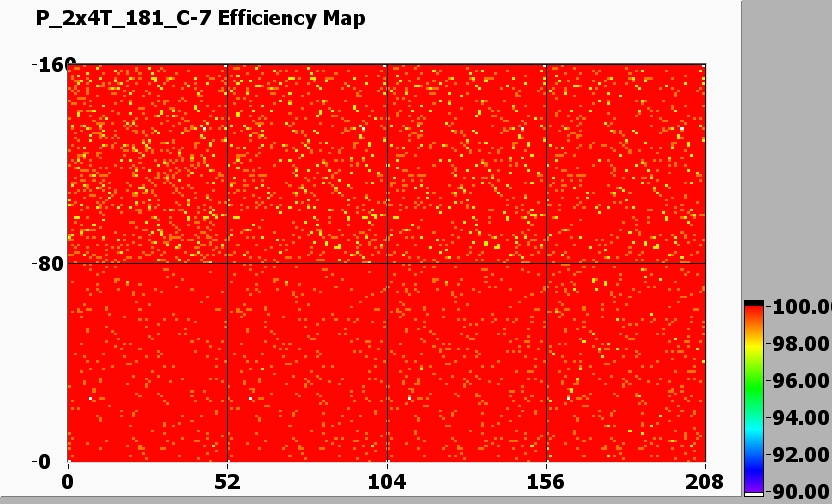

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe11512090130100100105100
Vsf140140140140145140140150
VoffsetOp70759595858011080
VIbias_PH10595105100100100100105

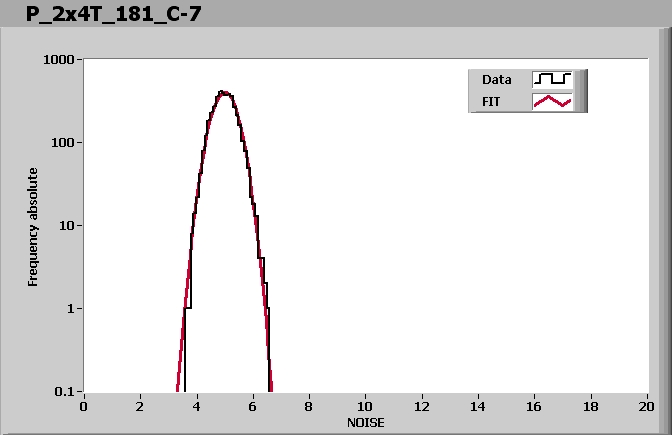

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.987155

SIGMA = 0.410448

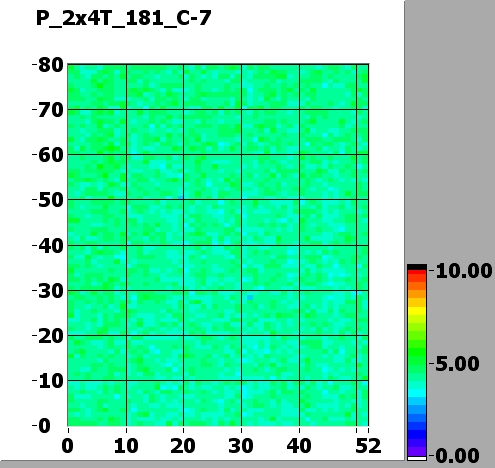

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.212346

SIGMA = 0.361472

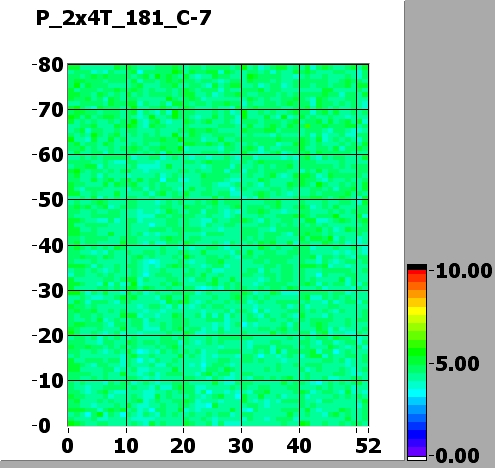

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.396881

SIGMA = 0.364651
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 3.953474

SIGMA = 0.323507

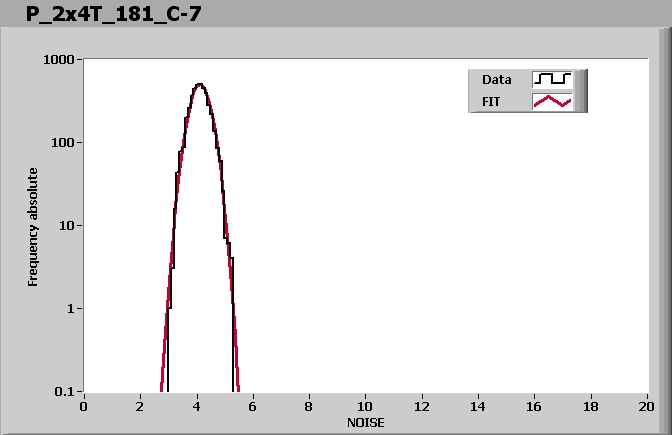

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.112739

SIGMA = 0.331517

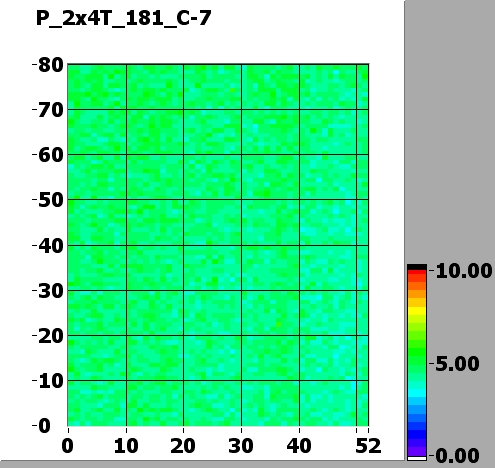

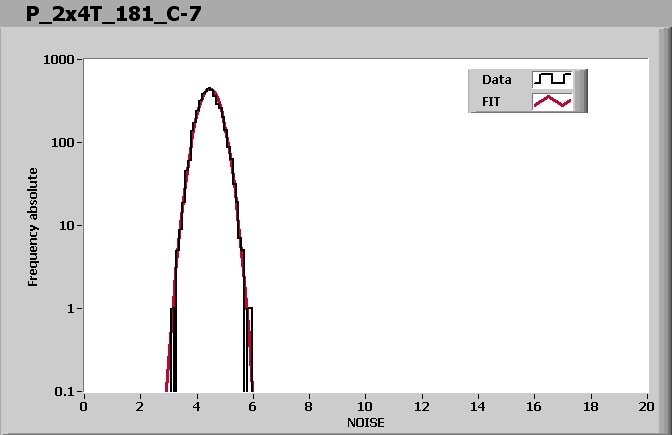

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.452069

SIGMA = 0.376243

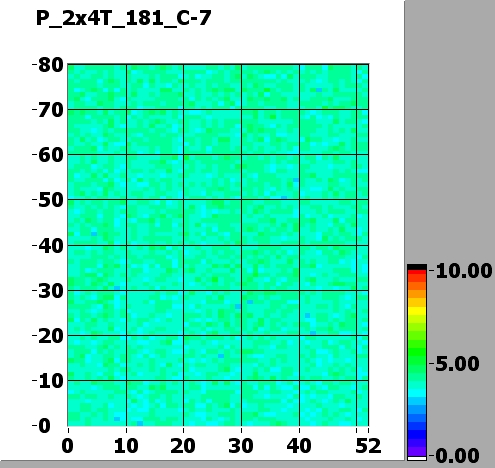

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 3.930501

SIGMA = 0.320078

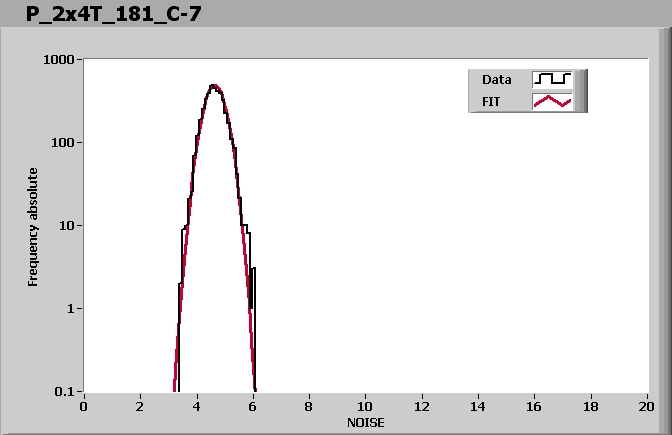

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.634947

SIGMA = 0.349227

Comment (if any):

This Device have been tested 7Times prior to this one and here are the links to the previous tests:

P_2x4T_181_C-1.html,

P_2x4T_181_C-2.html,

P_2x4T_181_C-3.html,

P_2x4T_181_C-4.html,

P_2x4T_181_C-5.html,

P_2x4T_181_C-6.html,

P_2x4T_181_C.html,

End testing time: 11:48 AM
