P_2x4T_181_C-6

Production testing

Date:5/18/2007

Operator: Gino Bolla

start testing time:6:45 AM

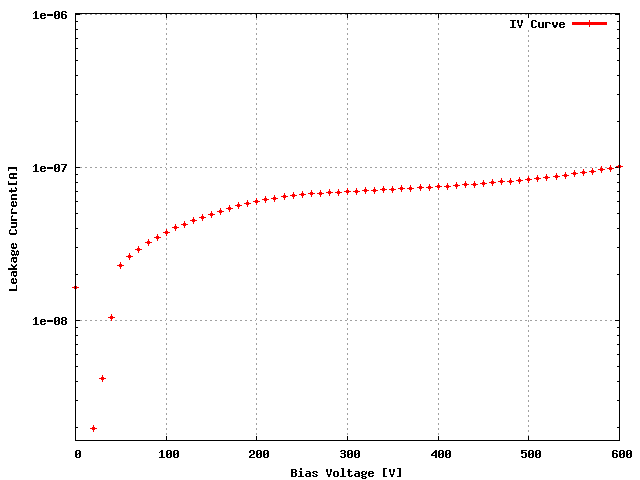

Sensor: S_2x4T_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KBNG0QT37C
ROC1KBNG0QT76D
ROC2KBNG0QT66B
ROC3KBNG0QT58D
ROC4KBNG0QT57B
ROC5KBNG0QT68D
ROC6KBNG0QT58B
ROC7KBNG0QT27C

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 154 176 154 166 162 144 162 156
Vana, VanaData 131 134 137 134 144 144 135 153
CalDelData and plots11295939395929091
VthrCompData and plots8283868487879395
TestDdata ,TestD Plots00030004
LightData ,Light Plots000304500
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD BAD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

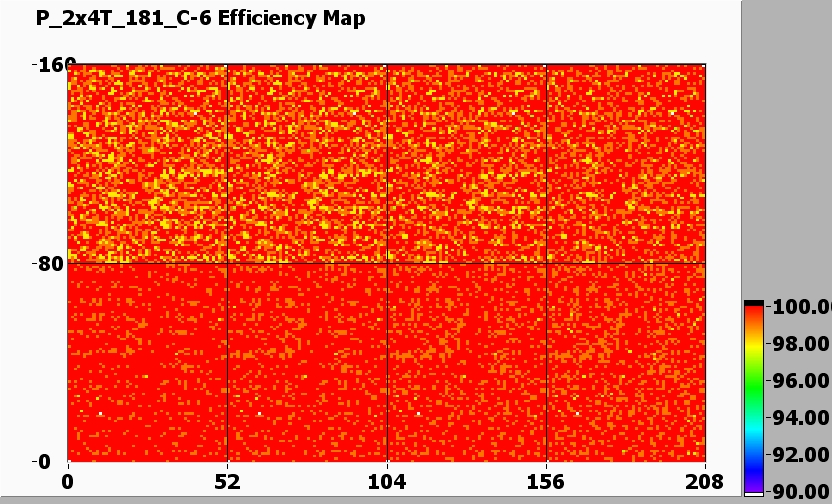

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe125115105120100100110100
Vsf140140140135145140140150
VoffsetOp70709595858011080
VIbias_PH9510595100100100100105

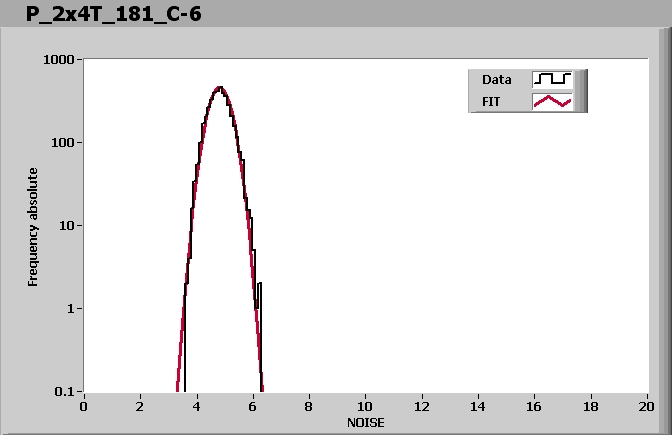

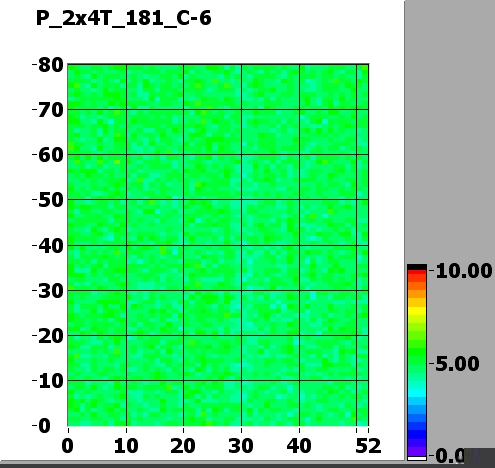

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.811694

SIGMA = 0.366320

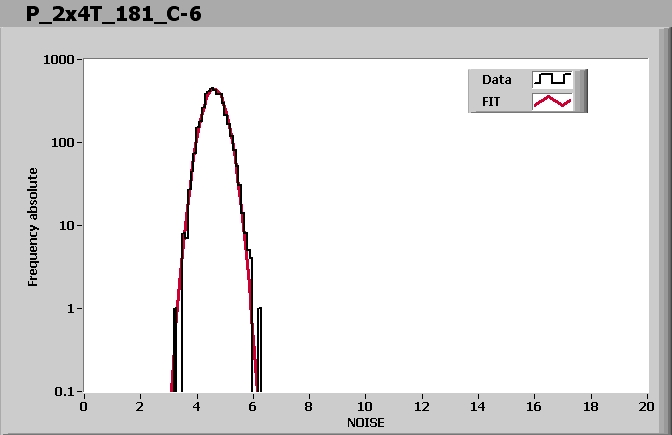

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.615607

SIGMA = 0.374743
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.093051

SIGMA = 0.333528

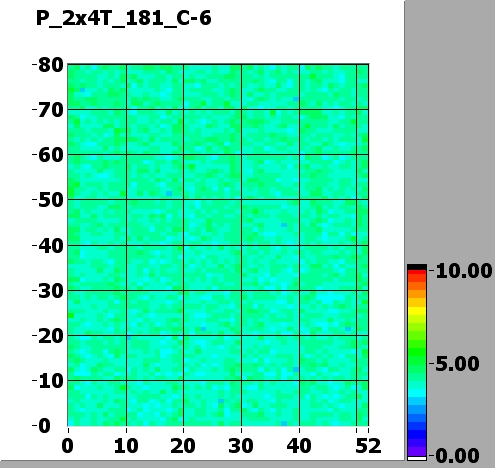

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 3.993800

SIGMA = 0.322809

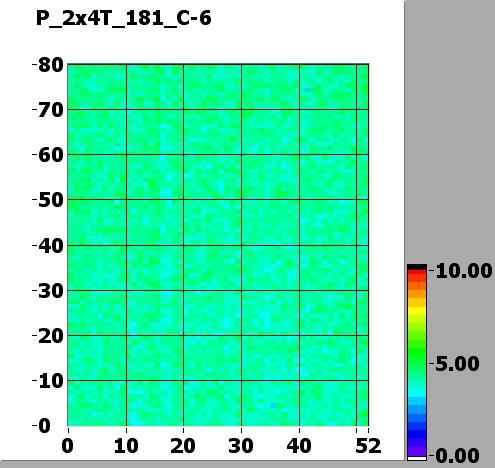

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.112512

SIGMA = 0.335239
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.436317

SIGMA = 0.358101

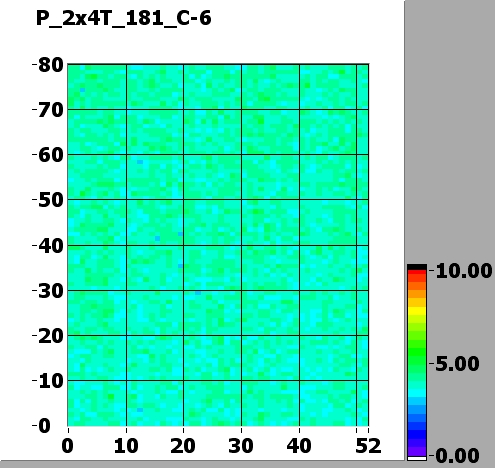

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 3.882860

SIGMA = 0.325421
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.686535

SIGMA = 0.383297

Comment (if any): GOOD

This Device have been tested 6Times prior to this one and here are the links to the previous tests:

P_2x4T_181_C-1.html,

P_2x4T_181_C-2.html,

P_2x4T_181_C-3.html,

P_2x4T_181_C-4.html,

P_2x4T_181_C-5.html,

P_2x4T_181_C.html,

End testing time: 7:12 AM
