P_2x4T_178_C-1

Production testing

Date:5/15/2007

Operator: Emily Grace

start testing time:10:44 AM

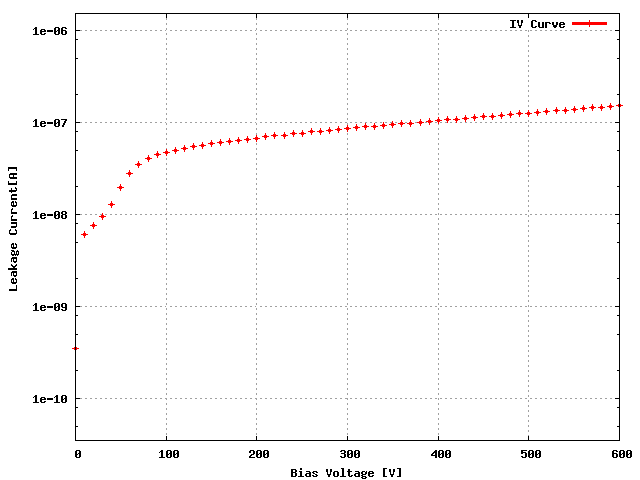

Sensor: S_2x4T_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KFNG13T36B
ROC1KFNG13T57B
ROC2KFNG13T57A
ROC3KFNG13T38B
ROC4KFNG13T37A
ROC5KFNG13T67D
ROC6KFNG13T68A
ROC7KFNG13T27C

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 166 162 170 160 148 160 146 150
Vana, VanaData 135 138 137 145 135 132 133 141
CalDelData and plots6278797472826880
VthrCompData and plots8275787982828786
TestDdata ,TestD Plots00000020
LightData ,Light Plots00000000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe120901009010011510595
Vsf140145140145140145140140
VoffsetOp9580959585909595
VIbias_PH10010510095100105100105
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 3.695387

SIGMA = 0.288276

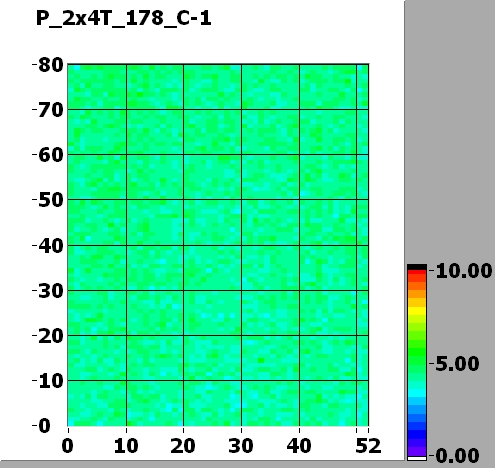

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.266165

SIGMA = 0.342140

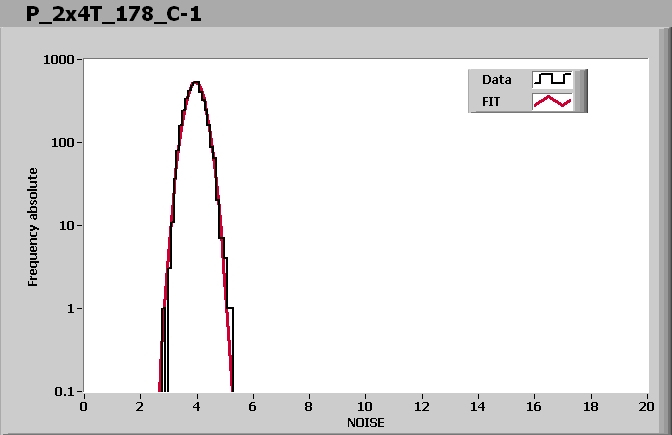

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 3.950942

SIGMA = 0.312450
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.094309

SIGMA = 0.332612
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.368680

SIGMA = 0.336598

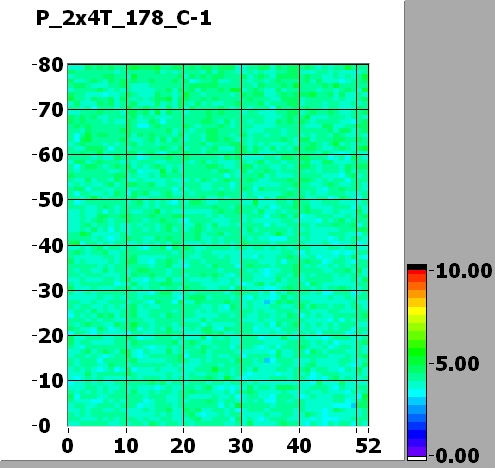

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.055981

SIGMA = 0.323308

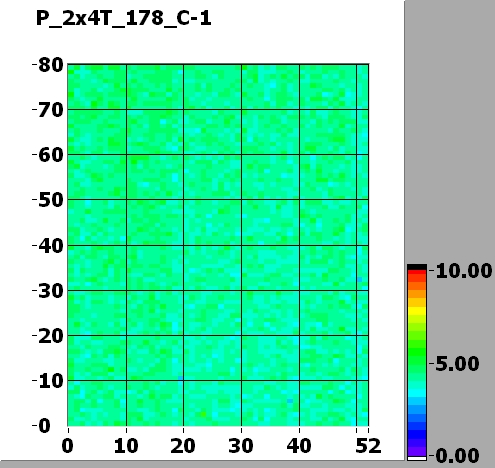

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.198835

SIGMA = 0.342624

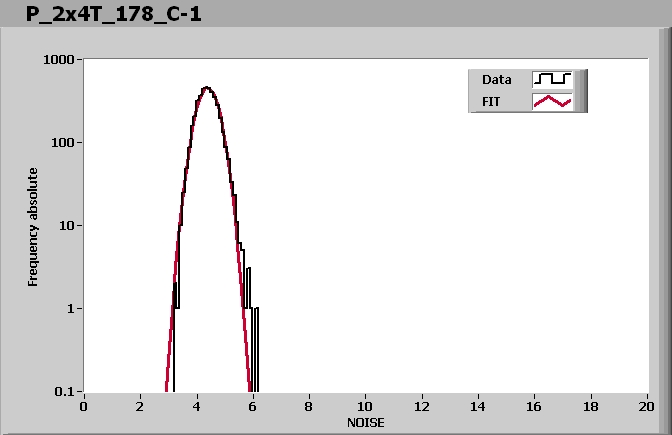

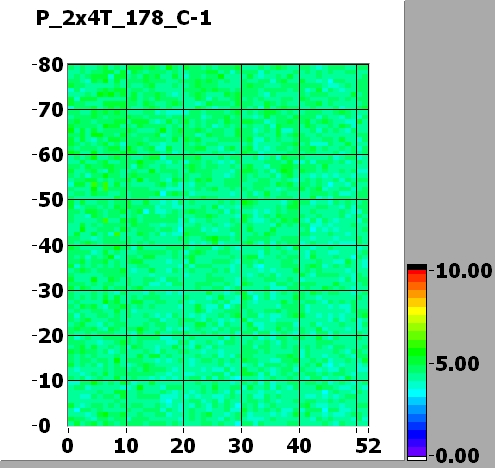

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.382775

SIGMA = 0.359029

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x4T_178_C.html,

End testing time: 11:21 AM
