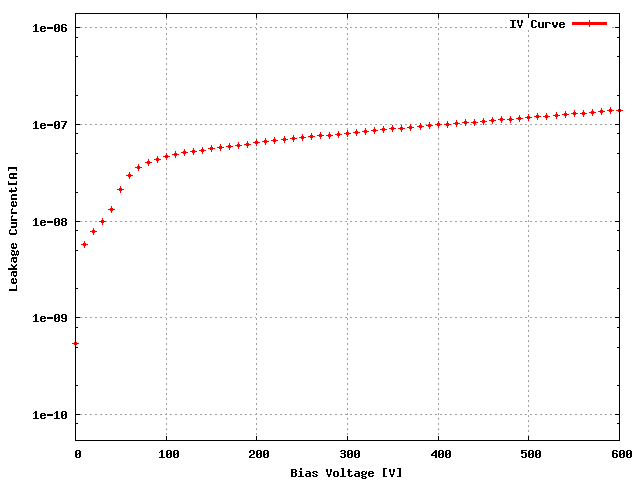

Sensor: S_2x4T_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | KFNG13T | 36B |
ROC1 | KFNG13T | 57B |
ROC2 | KFNG13T | 57A |
ROC3 | KFNG13T | 38B |
ROC4 | KFNG13T | 37A |
ROC5 | KFNG13T | 67D |
ROC6 | KFNG13T | 68A |
ROC7 | KFNG13T | 27C |
Ibias_DAC, Ibias_DAC Data | 162 | 158 | 164 | 156 | 146 | 156 | 144 | 146 |
Vana, VanaData | 137 | 138 | 137 | 146 | 137 | 133 | 133 | 141 |
CalDelData and plots | 63 | 78 | 80 | 75 | 72 | 83 | 68 | 80 |
VthrCompData and plots | 84 | 74 | 79 | 80 | 82 | 83 | 86 | 85 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 2 | 0 | 2 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

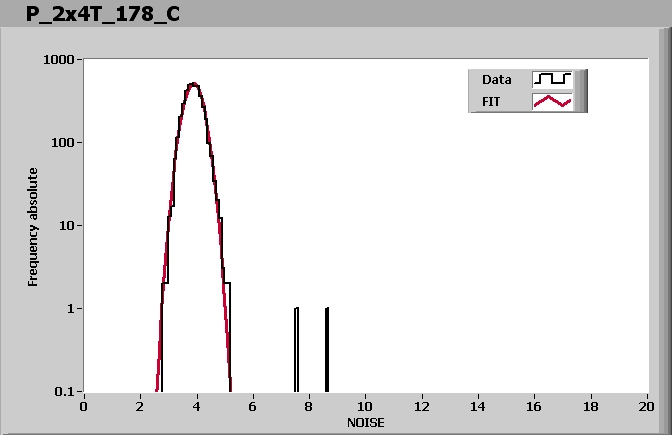

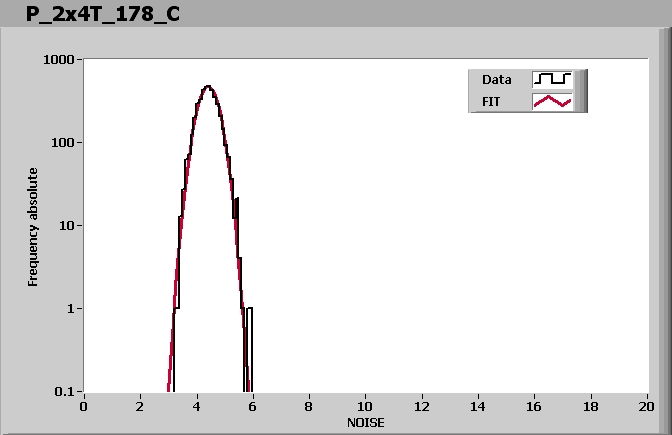

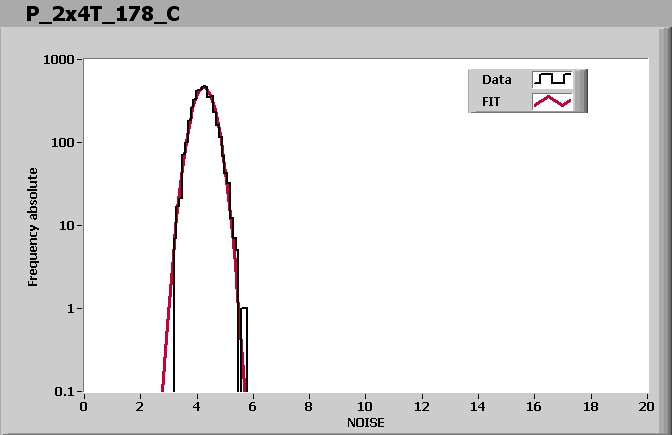

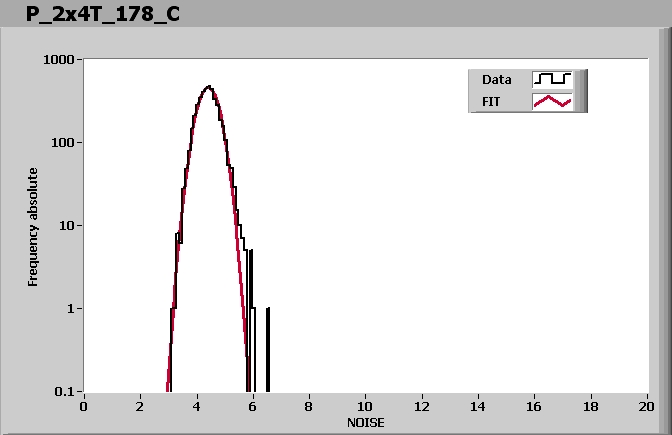

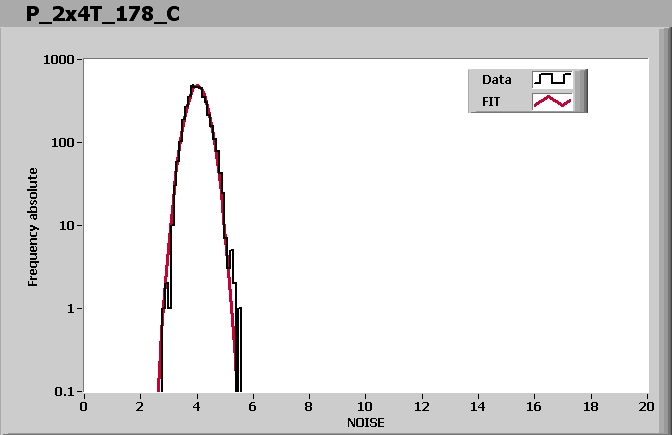

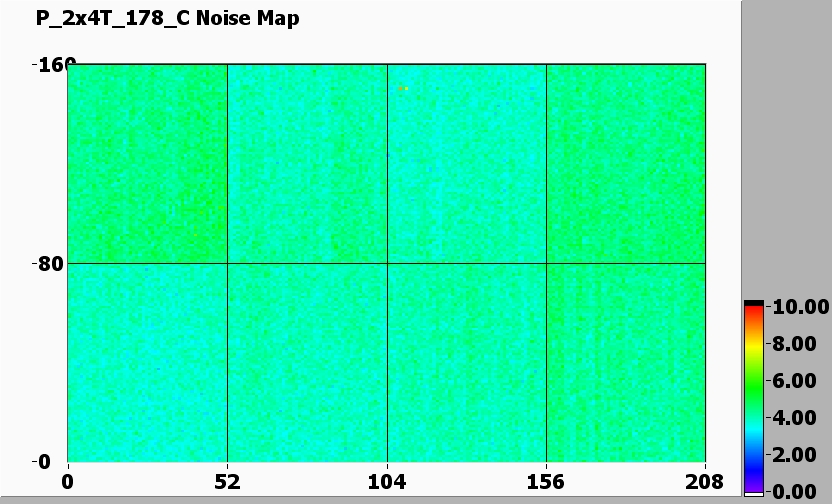

Noise MAP at VMAX

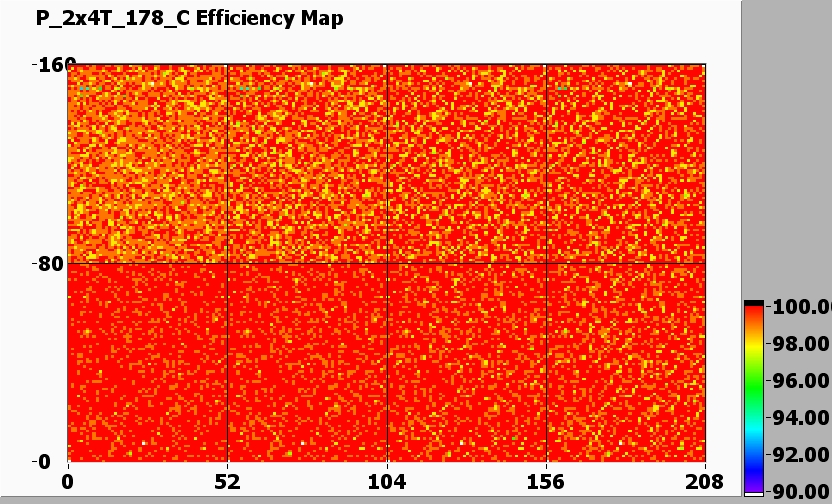

Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 100 | 90 | 95 | 90 | 100 | 100 | 110 | 95 |
Vsf | 140 | 150 | 140 | 150 | 140 | 140 | 140 | 140 |
VoffsetOp | 95 | 85 | 95 | 95 | 85 | 95 | 95 | 95 |
VIbias_PH | 100 | 95 | 100 | 100 | 100 | 100 | 95 | 105 |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:04 AM
