P_2x4T_177_C-1

Production testing

Date:5/8/2007

Operator: Gino Bolla

start testing time:4:04 PM

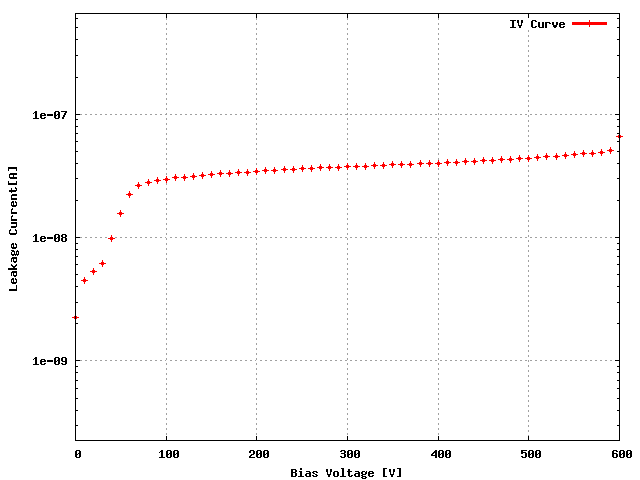

Sensor: S_2x4T_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KNN0GDT55D
ROC1KNN0GDT45A
ROC2KNN0GDT35D
ROC3KNN0GDT65A
ROC4KNN0GDT15C
ROC5KNN0GDT25D
ROC6KNN0GDT75D
ROC7KNN0GDT05B

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 148 134 146 144 132 140 144 156
Vana, VanaData 120 144 133 144 130 146 123 140
CalDelData and plots9363767788659778
VthrCompData and plots7092878580917179
TestDdata ,TestD Plots20000200
LightData ,Light Plots00000100
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe1209512010011510012090
Vsf135145140150140145140145
VoffsetOp6010070958011575105
VIbias_PH9595105105100100105100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.406418

SIGMA = 0.356777

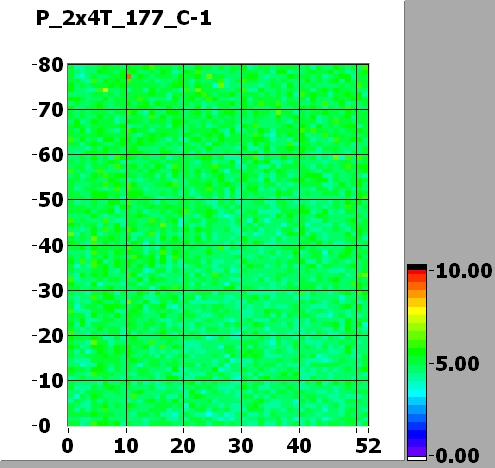

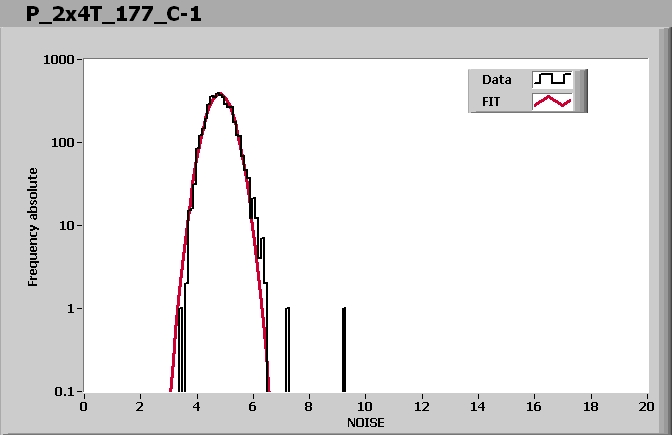

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.812855

SIGMA = 0.431528
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.933453

SIGMA = 0.378658
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.337029

SIGMA = 0.336900
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.746198

SIGMA = 0.362113

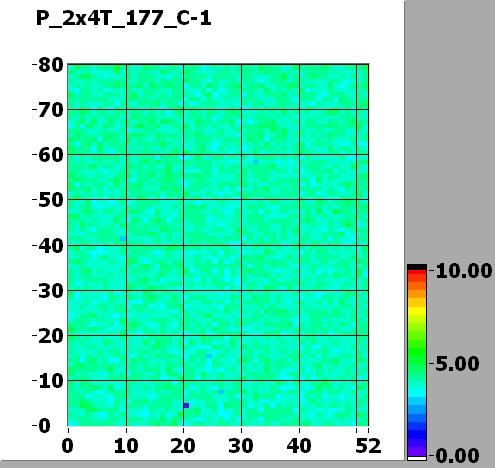

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 3.975024

SIGMA = 0.320759

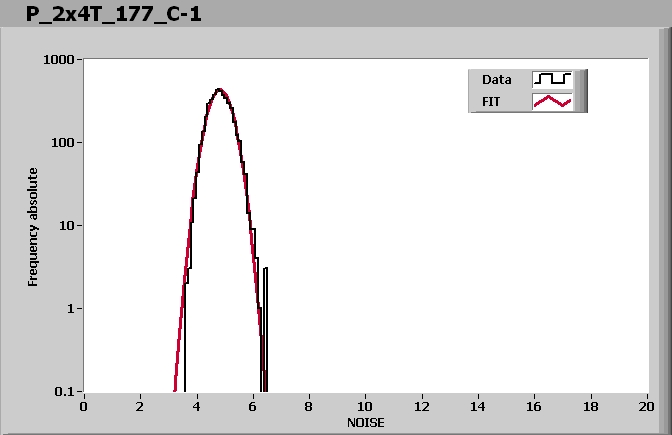

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.823201

SIGMA = 0.390892

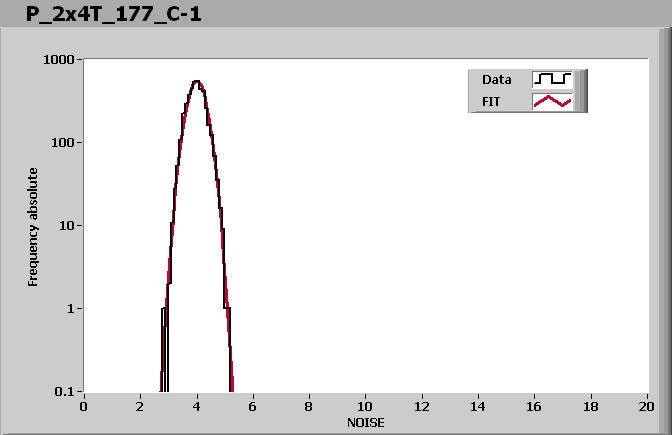

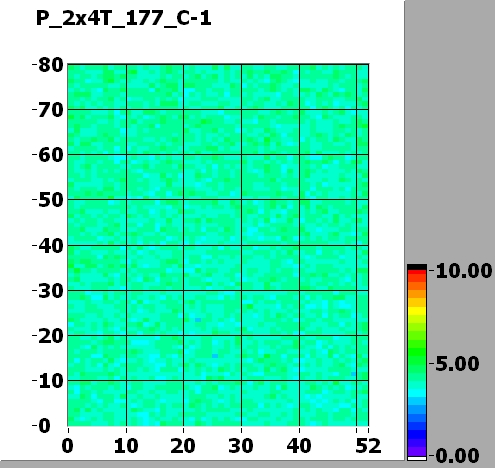

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 3.994163

SIGMA = 0.306056

Comment (if any): GOOD

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x4T_177_C.html,

End testing time: 4:25 PM
