![[IMAGE] of](P_2x4T_156_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

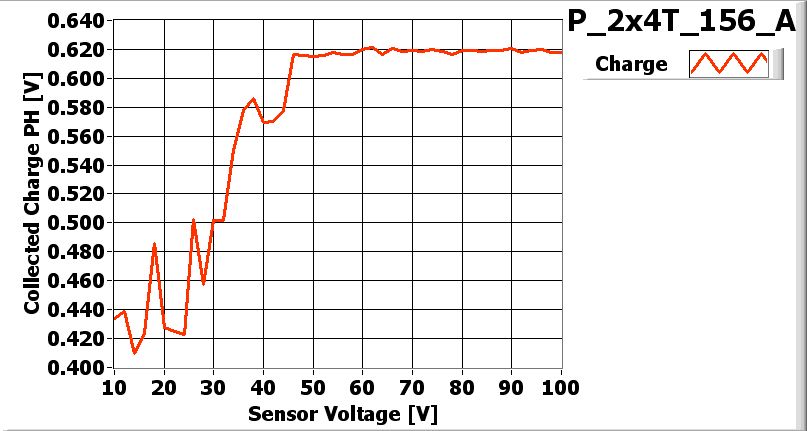

![[IMAGE] of](P_2x4T_156_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 6/14/2007
| Part | ID |
|---|---|
| BBM | BBM_156-2x4T |
| VHDI | 2x4_411 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 76D |
| ROC1 | W33_XC4K5LT | 15D |
| ROC2 | W28_X54K5TT | 76A |
| ROC3 | W48_DVCQDVT | 66D |
| ROC4 | W33_XC4K5LT | 13B |
| ROC5 | W28_X54K5TT | 42B |
| ROC6 | W28_X54K5TT | 42C |
| ROC7 | W28_X54K5TT | 42D |
Inspected by Lockwood Gale on date 6/18/2007
| LR_dev | 0.031 |
| LL_dev | 0.050 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/18/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/18/2007 by Ozhan Koybasi
P_2x4T_156_Aon 6/20/2007 12:18 PM
P_2x4T_156_Aon 6/20/2007 12:18 PM
PLAQUETTE TESTED on 2007-06-20 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 158 | 148 | 154 | 150 | 148 | 158 | 160 | 156 | |
| Vana | 142 | 118 | 130 | 160 | 124 | 117 | 138 | 144 | |
| Cal_Del | 95 | 83 | 86 | 84 | 83 | 74 | 83 | 78 | |
| Vthrs_Comp | 75 | 77 | 74 | 93 | 77 | 79 | 75 | 84 | |
| Unbumped | 5 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 2 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 5 | 0 | 1 | 1 | 0 | 0 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

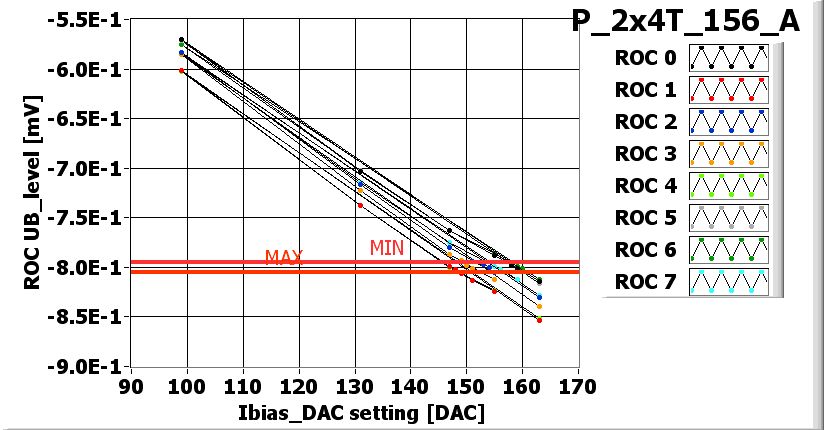

![[IMAGE] of](P_2x4T_156_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

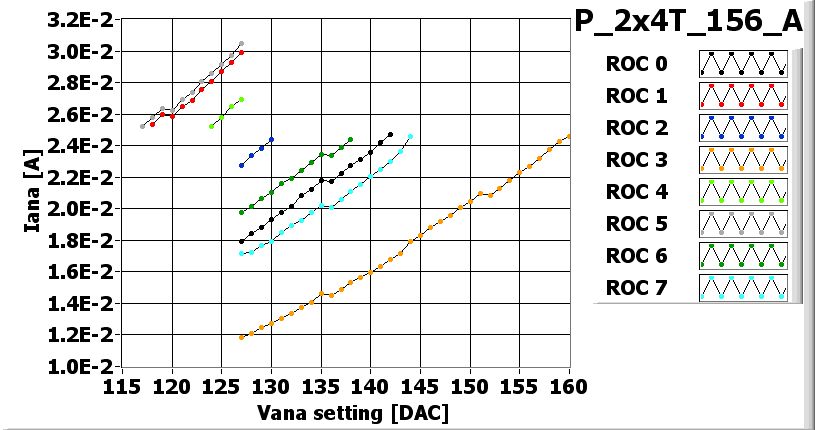

![[IMAGE] of](P_2x4T_156_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_156_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_156_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_156_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_156_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 145 | 100 | 100 | 140 | 135 | 85 | 85 |
| Vsf | 140 | 135 | 140 | 160 | 135 | 135 | 135 | 140 |
| VoffsetOp | 90 | 65 | 80 | 110 | 65 | 75 | 90 | 80 |
| VIbias_PH | 100 | 105 | 105 | 105 | 100 | 95 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x4T_156_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_156_A-580-efficiency.jpg)

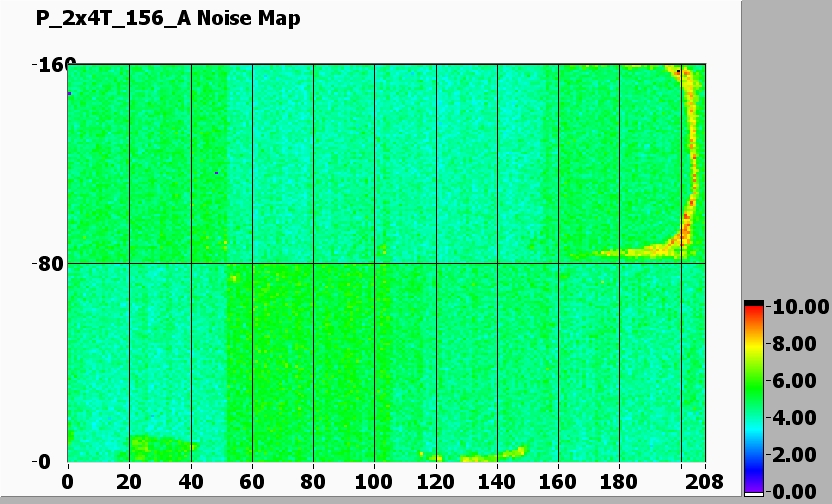

Noise MAP at -200 V
![[IMAGE] of](P_2x4T_156_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_156_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
