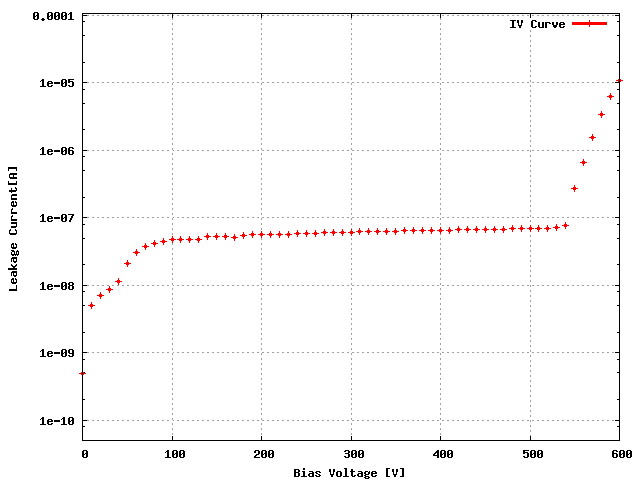

Sensor: S_2x4T_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	76D
ROC1	W33_XC4K5LT	15D
ROC2	W28_X54K5TT	76A
ROC3	W48_DVCQDVT	66D
ROC4	W33_XC4K5LT	13B
ROC5	W28_X54K5TT	42B
ROC6	W28_X54K5TT	42C
ROC7	W28_X54K5TT	42D

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	158	148	154	150	148	158	160	156
Vana, VanaData	142	118	130	160	124	117	138	144
CalDelData and plots	95	83	86	84	83	74	83	78
VthrCompData and plots	75	77	74	93	77	79	75	84
TestDdata ,TestD Plots	628	65	287	9	340	130	0	2
LightData ,Light Plots	5	0	0	1	0	0	0	0
Pass/Fail TestD	BAD	BAD	BAD	GOOD	BAD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

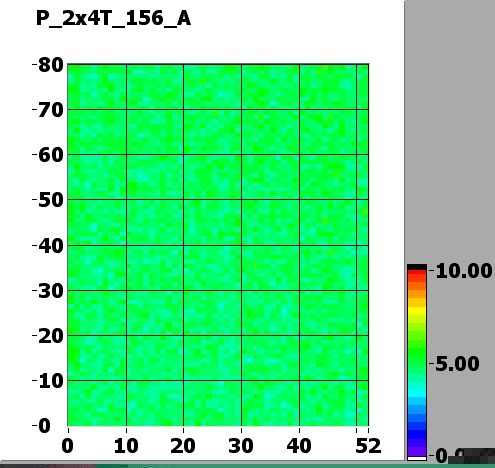

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

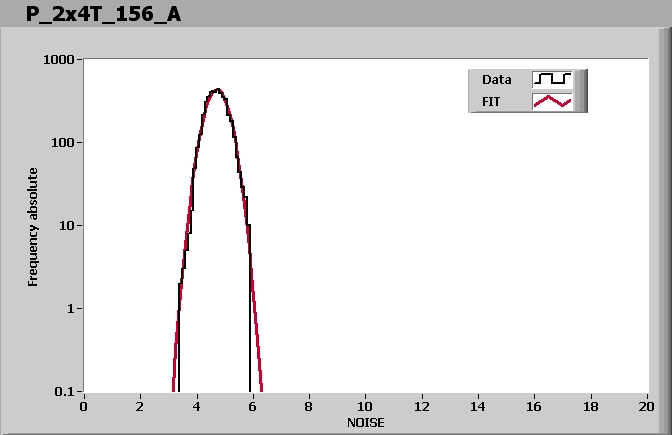

ROC0 NOISE			MEAN = 4.177282 SIGMA = 0.340113
ROC1 NOISE			MEAN = 5.183160 SIGMA = 0.419687
ROC2 NOISE			MEAN = 4.551506 SIGMA = 0.384198

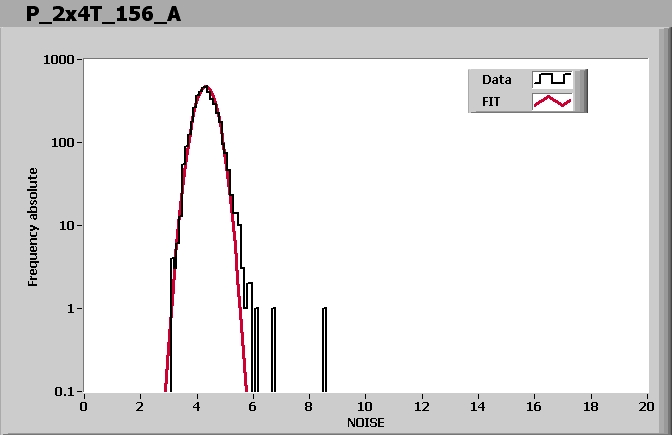

ROC3 NOISE			MEAN = 4.313875 SIGMA = 0.347999
ROC4 NOISE			MEAN = 4.713653 SIGMA = 0.385080
ROC5 NOISE			MEAN = 4.133226 SIGMA = 0.328500

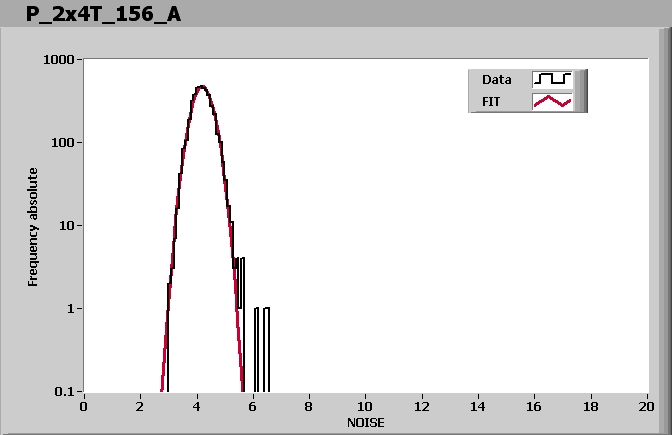

ROC6 NOISE			MEAN = 4.195428 SIGMA = 0.348253
ROC7 NOISE			MEAN = 4.793332 SIGMA = 0.397227

Comment (if any):

End testing time: 12:45 PM
