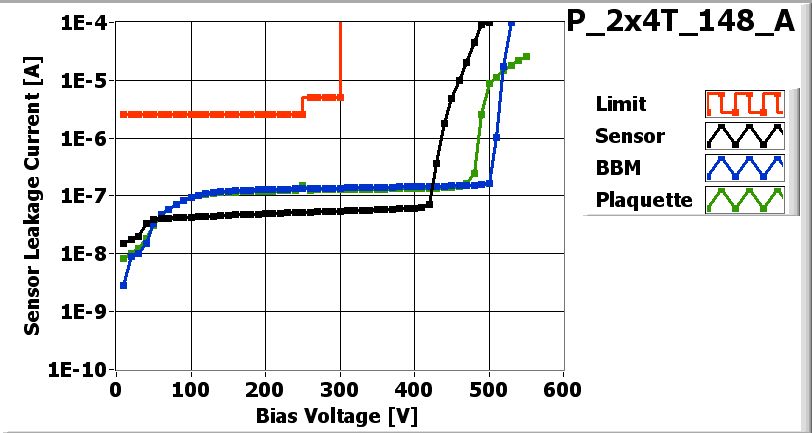

![[IMAGE] of](P_2x4T_148_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 550 V |

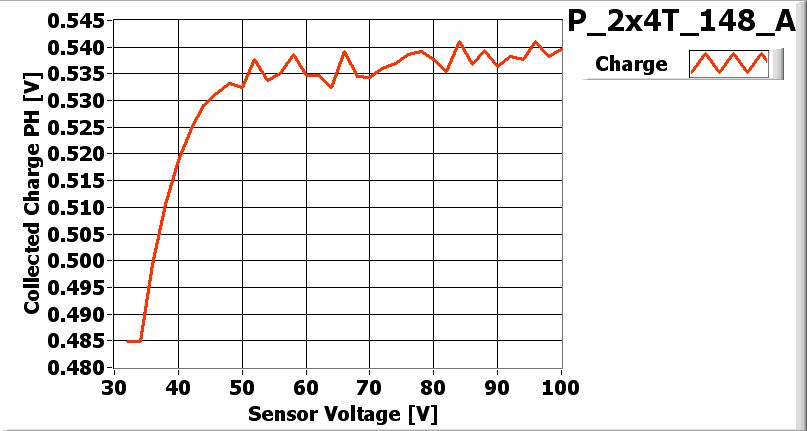

![[IMAGE] of](P_2x4T_148_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/15/2007
| Part | ID |
|---|---|
| BBM | BBM_148-2x4T |
| VHDI | 2x4_458 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 29A |
| ROC1 | W29_X64K5ST | 28D |
| ROC2 | W29_X64K5ST | 28B |
| ROC3 | W29_X64K5ST | 28A |
| ROC4 | W33_XC4K5LT | 75B |
| ROC5 | W33_XC4K5LT | 75C |
| ROC6 | W33_XC4K5LT | 75D |
| ROC7 | W33_XC4K5LT | 76A |
Inspected by Arndt Kirk on date 2/20/2007
| LR_dev | 0.054 |
| LL_dev | 0.086 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 2/20/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/21/2007 by Ozhan Koybasi
P_2x4T_148_Aon 2/21/2007 3:12 PM
P_2x4T_148_Aon 2/21/2007 3:12 PM
PLAQUETTE TESTED on 2007-02-21 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 134 | 140 | 130 | 136 | 144 | 136 | 130 | |
| Vana | 133 | 143 | 144 | 117 | 125 | 141 | 124 | 118 | |
| Cal_Del | 81 | 72 | 71 | 82 | 76 | 77 | 60 | 79 | |
| Vthrs_Comp | 83 | 82 | 88 | 84 | 68 | 85 | 92 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 3 | 0 | 3 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 3 | 0 | 3 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

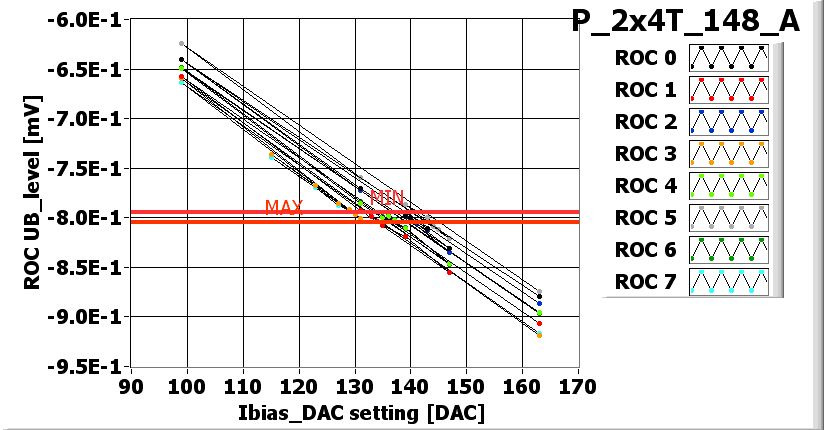

![[IMAGE] of](P_2x4T_148_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_148_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_148_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_148_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_148_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_148_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 135 | 95 | 100 | 135 | 135 | 95 | 145 | 155 |
| Vsf | 140 | 145 | 140 | 135 | 140 | 140 | 140 | 135 |
| VoffsetOp | 100 | 100 | 120 | 75 | 80 | 95 | 75 | 55 |
| VIbias_PH | 100 | 100 | 100 | 100 | 100 | 105 | 105 | 100 |

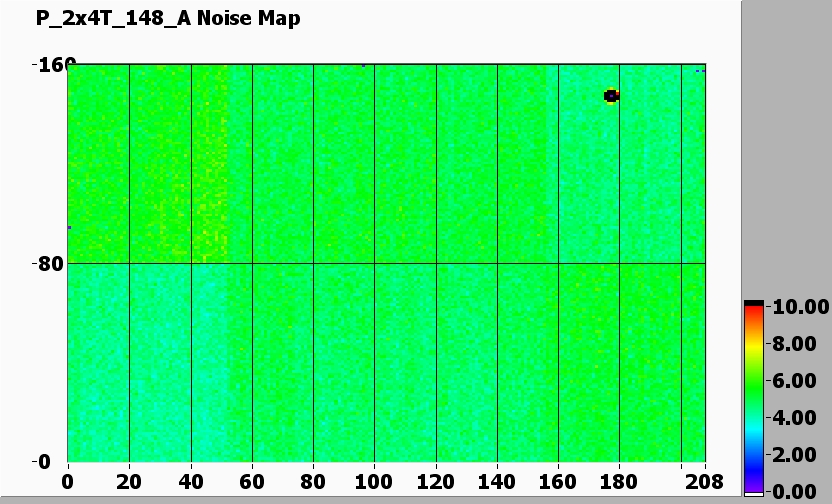

Noise MAP
![[IMAGE] of](P_2x4T_148_A-530-noise.jpg)

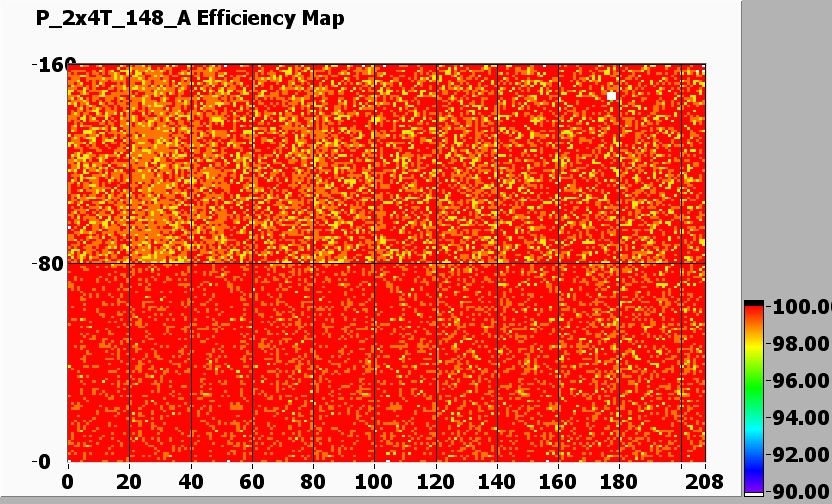

Efficiency MAP
![[IMAGE] of](P_2x4T_148_A-530-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
