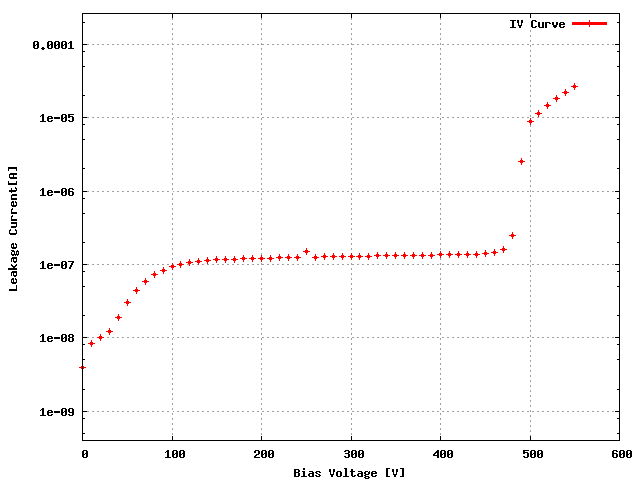

Sensor: S_2x4T_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W29_X64K5ST | 29A |
ROC1 | W29_X64K5ST | 28D |
ROC2 | W29_X64K5ST | 28B |
ROC3 | W29_X64K5ST | 28A |
ROC4 | W33_XC4K5LT | 75B |
ROC5 | W33_XC4K5LT | 75C |
ROC6 | W33_XC4K5LT | 75D |
ROC7 | W33_XC4K5LT | 76A |
Ibias_DAC, Ibias_DAC Data | 140 | 134 | 140 | 130 | 136 | 144 | 136 | 130 |
Vana, VanaData | 133 | 143 | 144 | 117 | 125 | 141 | 124 | 118 |
CalDelData and plots | 81 | 72 | 71 | 82 | 76 | 77 | 60 | 79 |
VthrCompData and plots | 83 | 82 | 88 | 84 | 68 | 85 | 92 | 74 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 3 | 0 | 8 | 3 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

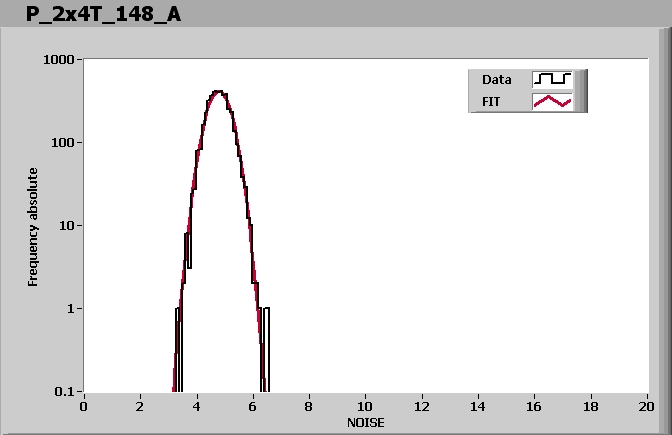

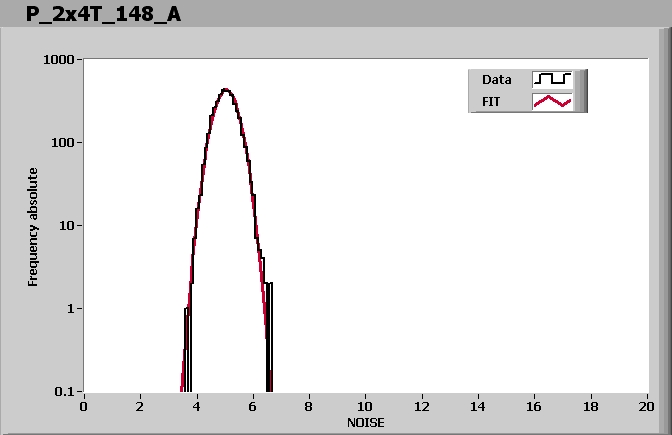

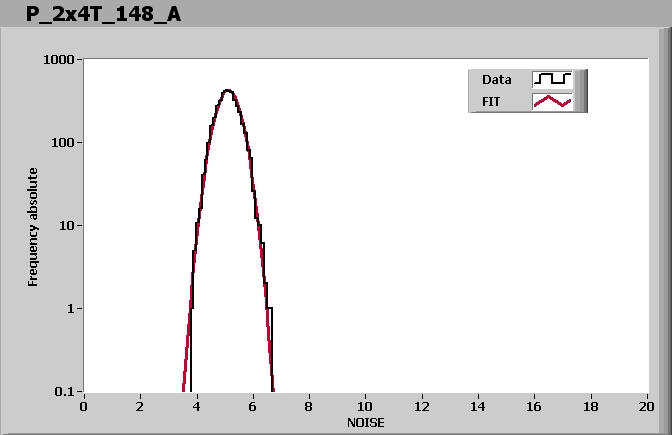

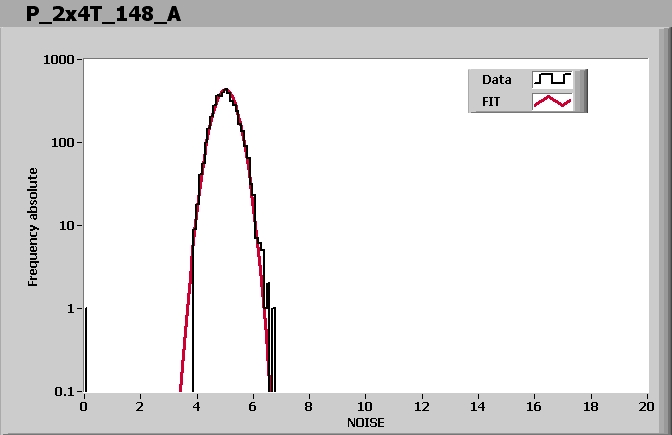

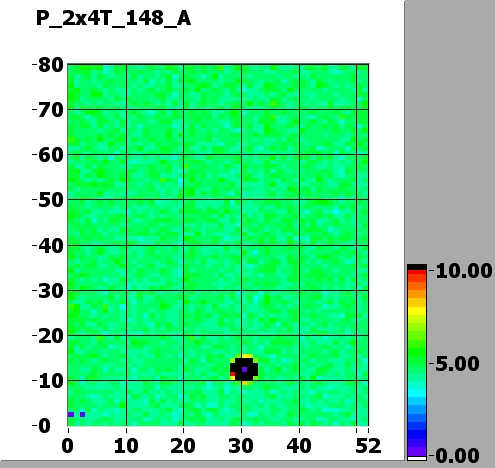

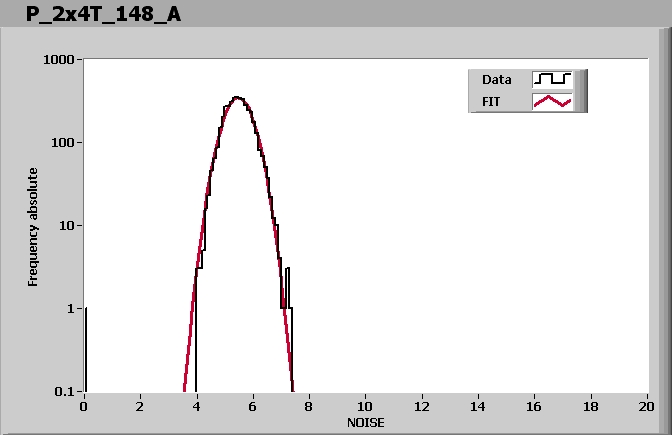

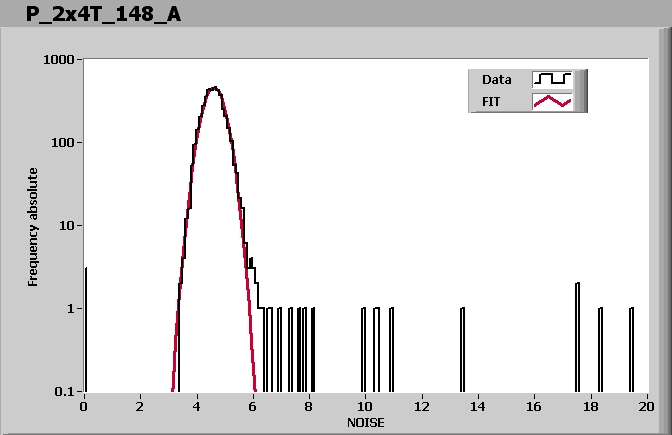

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 135 | 95 | 100 | 135 | 135 | 95 | 145 | 155 |
Vsf | 140 | 145 | 140 | 135 | 140 | 140 | 140 | 135 |
VoffsetOp | 100 | 100 | 120 | 75 | 80 | 95 | 75 | 55 |
VIbias_PH | 100 | 100 | 100 | 100 | 100 | 105 | 105 | 100 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:32 PM
