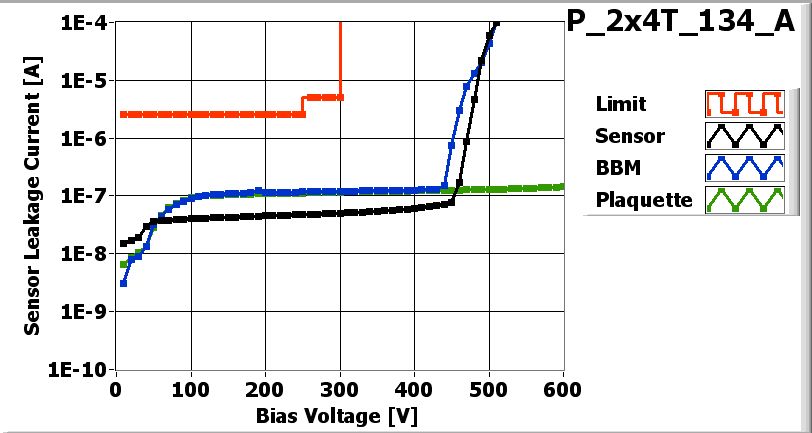

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_134_A_LASER.jpg)

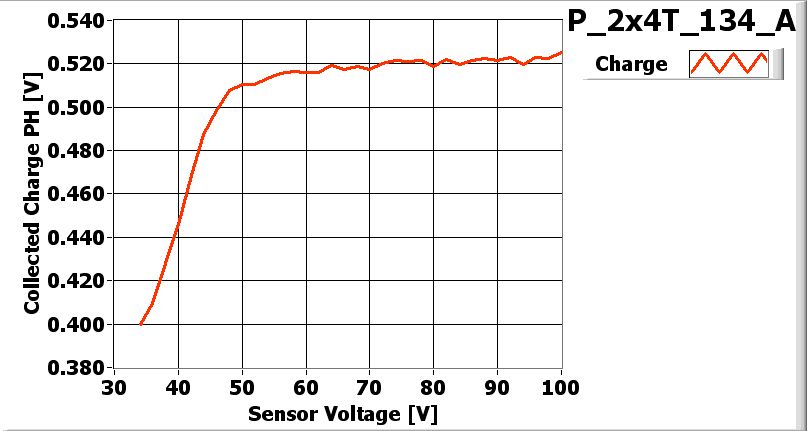

| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 3/21/2007
| Part | ID |
|---|---|
| BBM | BBM_134-2x4T |
| VHDI | 2x4_488 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K5HT | 39C |
| ROC1 | W35_XH4K5HT | 38C |
| ROC2 | W35_XH4K5HT | 38B |
| ROC3 | W35_XH4K5HT | 37D |
| ROC4 | W35_XH4K5HT | 44D |
| ROC5 | W35_XH4K5HT | 45D |
| ROC6 | W35_XH4K5HT | 46A |
| ROC7 | W35_XH4K5HT | 48D |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.021 |
| LL_dev | 0.022 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_2x4T_134_Aon 3/29/2007 12:37 PM
P_2x4T_134_Aon 3/29/2007 12:37 PM
PLAQUETTE TESTED on 2007-03-29 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 142 | 130 | 148 | 140 | 130 | 126 | 144 | 132 | |
| Vana | 142 | 121 | 131 | 135 | 129 | 127 | 138 | 129 | |
| Cal_Del | 81 | 89 | 95 | 90 | 88 | 102 | 97 | 102 | |
| Vthrs_Comp | 83 | 63 | 70 | 65 | 70 | 69 | 79 | 73 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

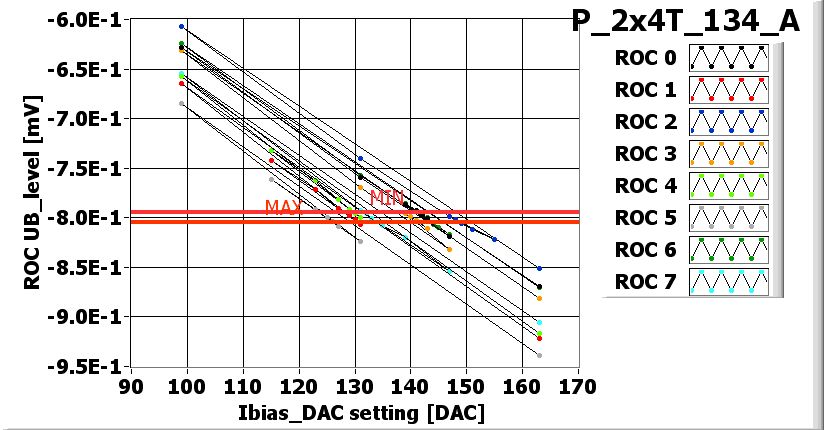

![[IMAGE] of](P_2x4T_134_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

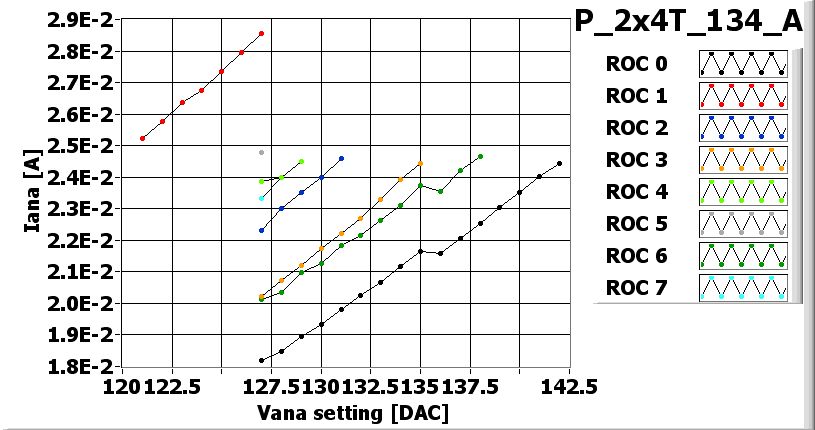

![[IMAGE] of](P_2x4T_134_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_134_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_134_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_134_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_134_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 120 | 110 | 110 | 135 | 120 | 105 | 125 |
| Vsf | 145 | 135 | 135 | 135 | 140 | 135 | 145 | 140 |
| VoffsetOp | 125 | 65 | 90 | 75 | 50 | 55 | 100 | 55 |
| VIbias_PH | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 105 |
Noise MAP
![[IMAGE] of](P_2x4T_134_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_134_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
