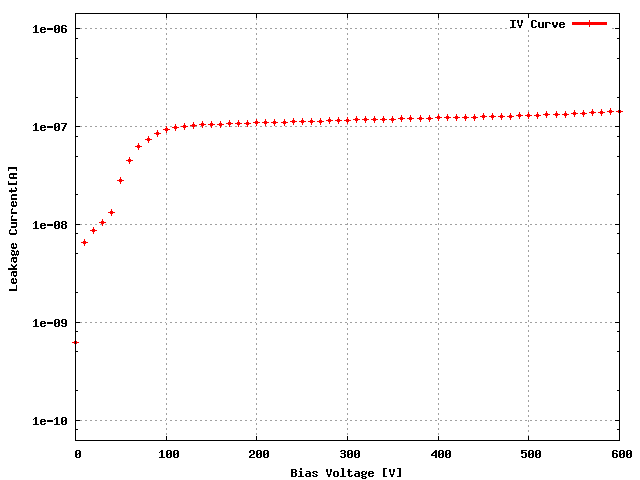

Sensor: S_2x4T_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W35_XH4K5HT | 39C |
ROC1 | W35_XH4K5HT | 38C |
ROC2 | W35_XH4K5HT | 38B |
ROC3 | W35_XH4K5HT | 37D |
ROC4 | W35_XH4K5HT | 44D |
ROC5 | W35_XH4K5HT | 45D |
ROC6 | W35_XH4K5HT | 46A |
ROC7 | W35_XH4K5HT | 48D |
Ibias_DAC, Ibias_DAC Data | 142 | 130 | 148 | 140 | 130 | 126 | 144 | 132 |
Vana, VanaData | 142 | 121 | 131 | 135 | 129 | 127 | 138 | 129 |
CalDelData and plots | 81 | 89 | 95 | 90 | 88 | 102 | 97 | 102 |
VthrCompData and plots | 83 | 63 | 70 | 65 | 70 | 69 | 79 | 73 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

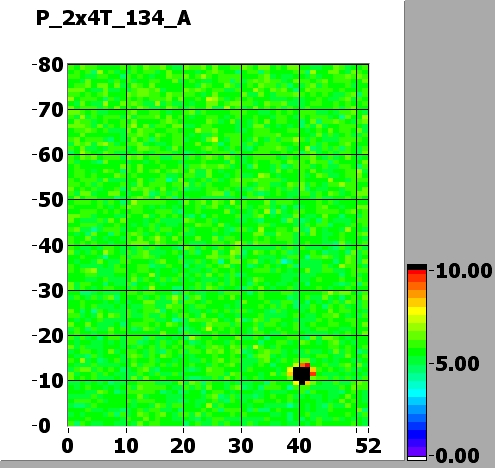

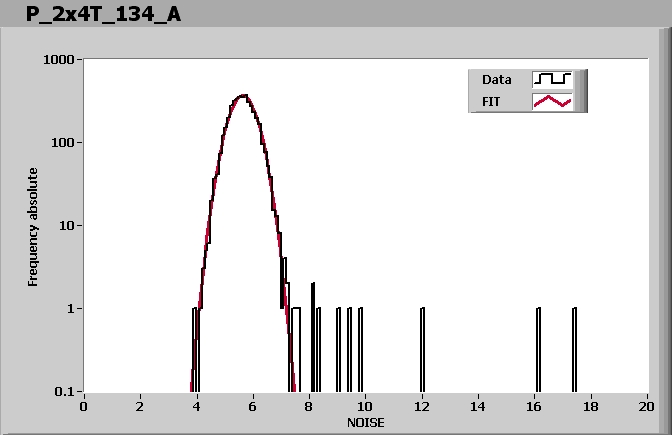

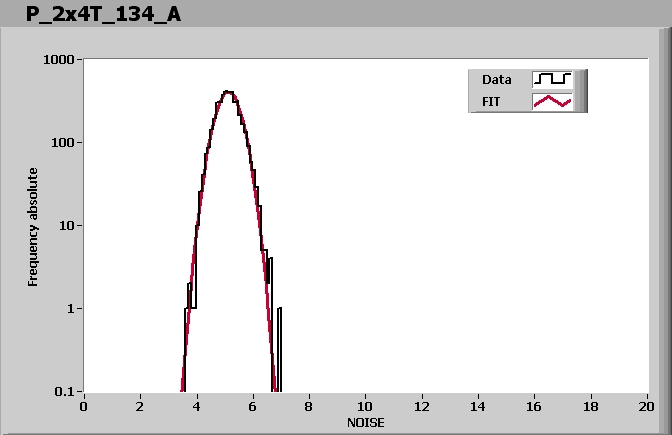

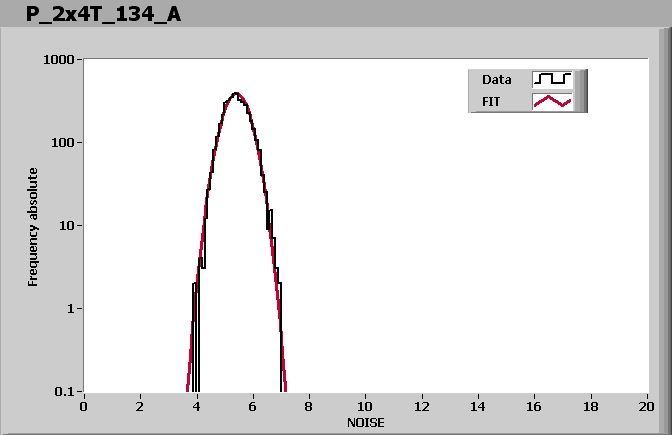

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 85 | 120 | 110 | 110 | 135 | 120 | 105 | 125 |
Vsf | 145 | 135 | 135 | 135 | 140 | 135 | 145 | 140 |
VoffsetOp | 125 | 65 | 90 | 75 | 50 | 55 | 100 | 55 |
VIbias_PH | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 105 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:57 PM
