P_2x4T_126

P_2x4T_126_C

Parts committed by Bolla Gino on date 5/22/2007

Part	ID
BBM	BBM_126-2x4T
VHDI	2x4_707

ROC ROC wafer Label

ROC0 KMNG2DT 46A

ROC1 KMNG2DT 46C

ROC2 KMNG2DT 56D

ROC3 KMNG2DT 46B

ROC4 KMNG2DT 47C

ROC5 KMNG2DT 76B

ROC6 KMNG2DT 17B

ROC7 KMNG2DT 27B

ROC	ROC wafer	Label
ROC0	KMNG2DT	46A
ROC1	KMNG2DT	46C
ROC2	KMNG2DT	56D
ROC3	KMNG2DT	46B
ROC4	KMNG2DT	47C
ROC5	KMNG2DT	76B
ROC6	KMNG2DT	17B
ROC7	KMNG2DT	27B

Inspected by Lockwood Gale on date 6/6/2007

LR_dev 0.034

LL_dev 0.039

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. ROC2 ch 35; ROC5 ch 34,35; ROC7 ch 20 multiple bond attempts, all wires OK.

PLAQUETTE made READY for ENCAPSULATION on 6/6/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/6/2007 by Kozak Brian

PLAQUETTE made READY for testing on 6/6/2007 by Kozak Brian

P_2x4T_126_Con 6/7/2007 10:06 AM

PLAQUETTE TESTED on 2007-06-07 by Emily Grace

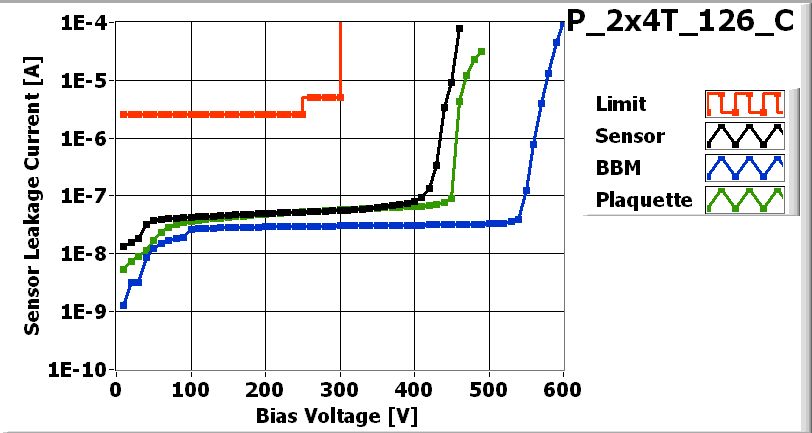

IV_XML-File

Maximum Voltage 490 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	164	156	152	156	150	162	144	168
Vana	153	142	146	127	132	135	130	140
Cal_Del	68	69	90	81	74	93	78	90
Vthrs_Comp	90	82	78	77	74	76	74	77
Unbumped	0	0	0	0	1	1304	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	1	1304	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

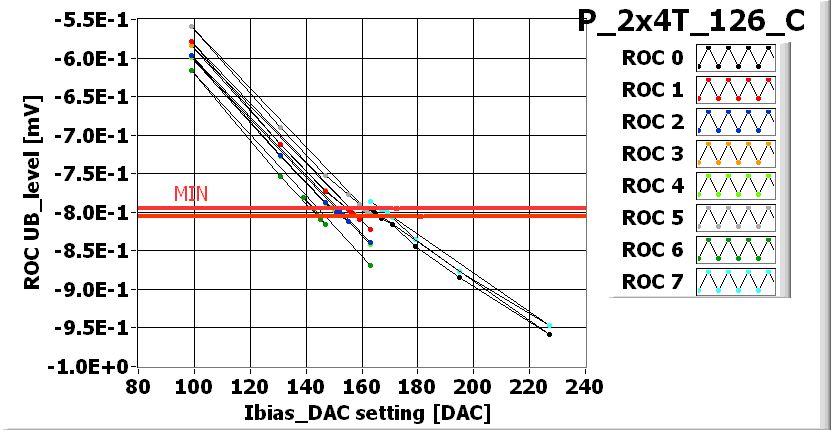

	I_BIAS_DAC_XML-File

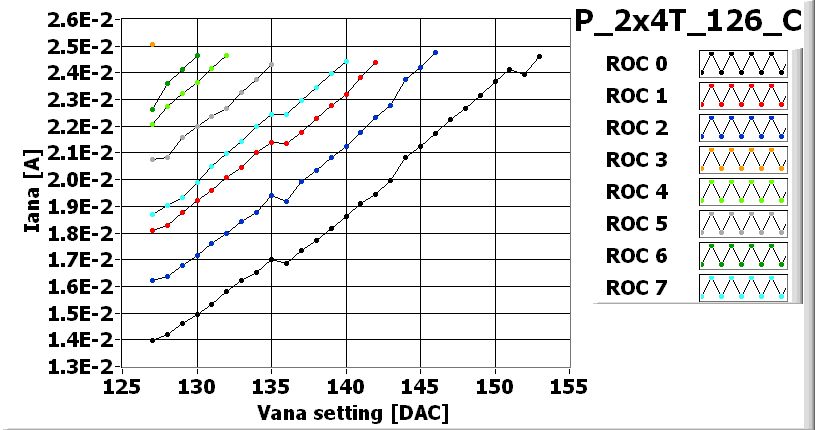

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

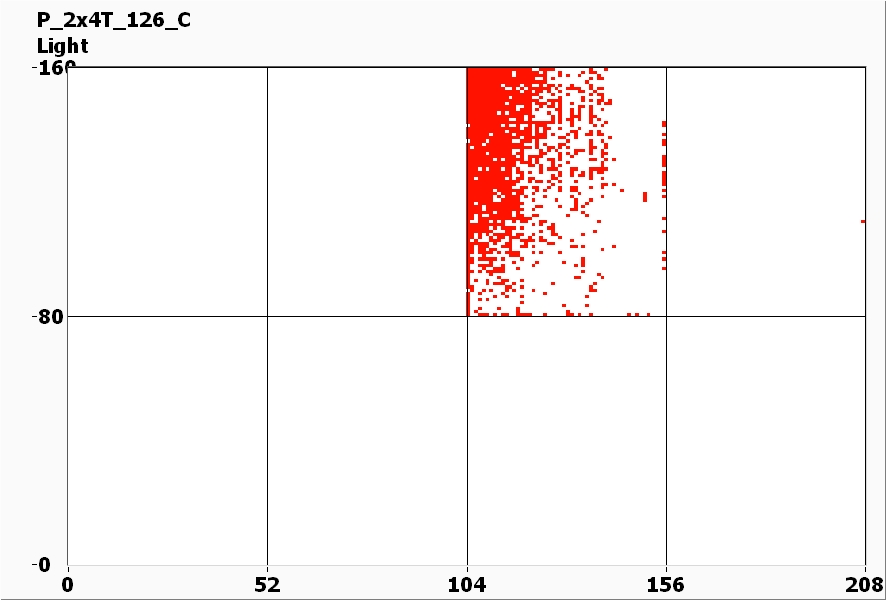

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	95	95	90	115	125	110	120	95
Vsf	155	145	145	140	135	135	135	145
VoffsetOp	90	95	85	100	55	75	70	95
VIbias_PH	95	100	105	100	100	100	100	100

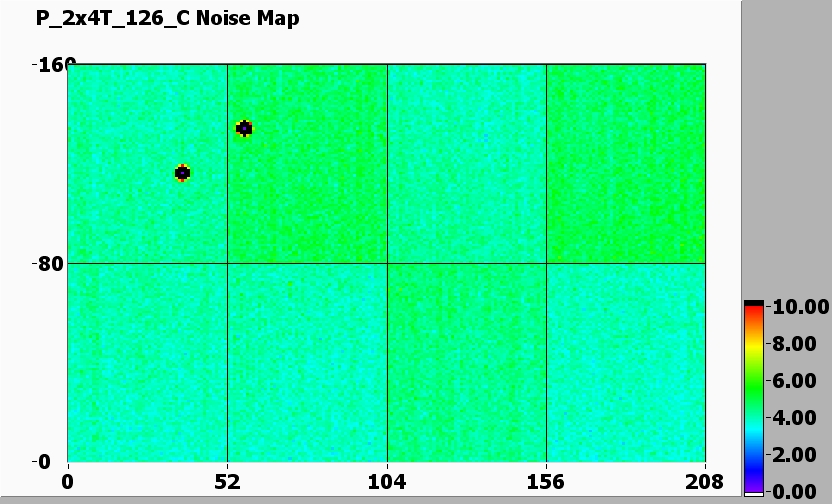

Noise MAP at VMAX

Efficiency MAP

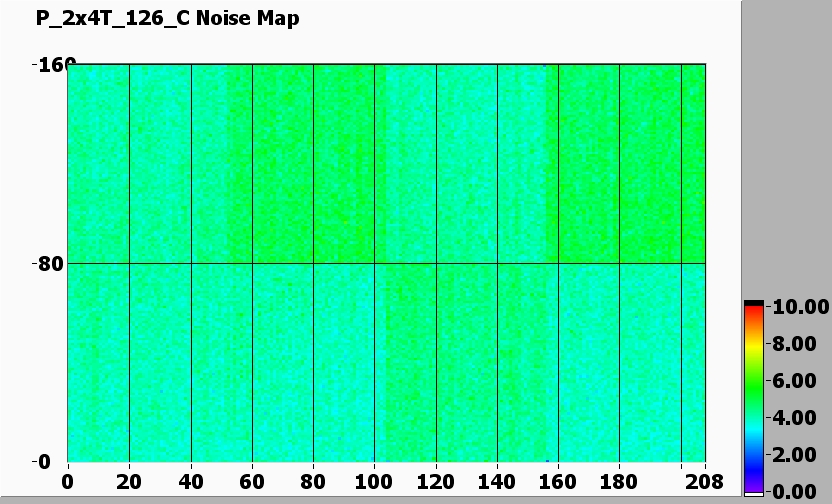

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-08
