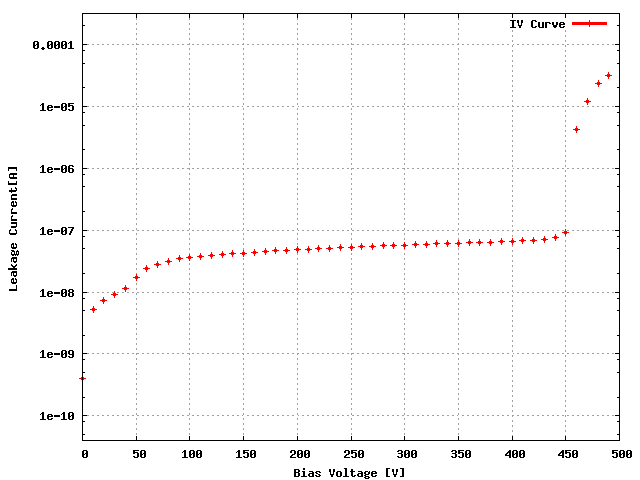

Sensor: S_2x4T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KMNG2DT	46A
ROC1	KMNG2DT	46C
ROC2	KMNG2DT	56D
ROC3	KMNG2DT	46B
ROC4	KMNG2DT	47C
ROC5	KMNG2DT	76B
ROC6	KMNG2DT	17B
ROC7	KMNG2DT	27B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	164	156	152	156	150	162	144	168
Vana, VanaData	153	142	146	127	132	135	130	140
CalDelData and plots	68	69	90	81	74	93	78	90
VthrCompData and plots	90	82	78	77	74	76	74	77
TestDdata ,TestD Plots	0	0	0	0	1	1	0	0
LightData ,Light Plots	0	0	0	0	1	1304	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD	GOOD

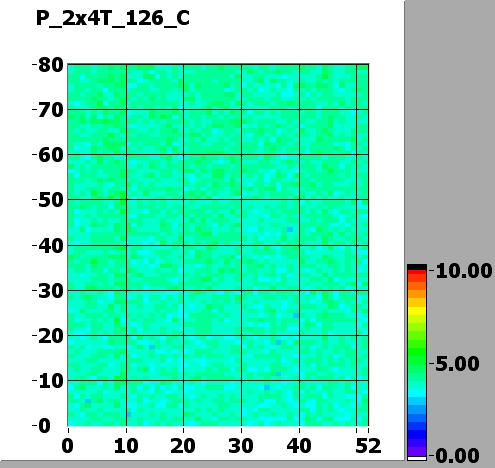

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.967391 SIGMA = 0.312823

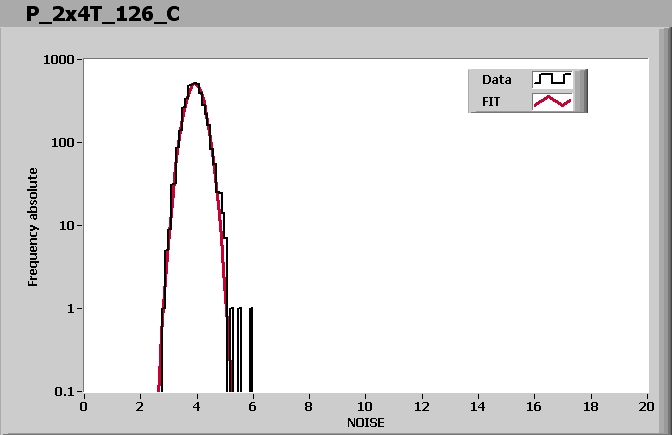

ROC1 NOISE			MEAN = 3.928307 SIGMA = 0.316417

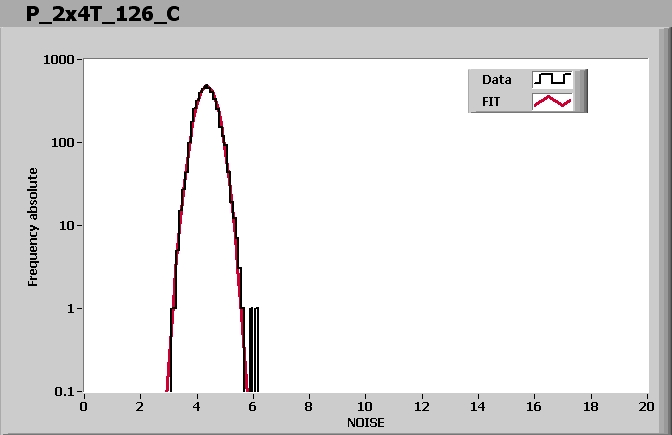

ROC2 NOISE			MEAN = 4.352913 SIGMA = 0.344930

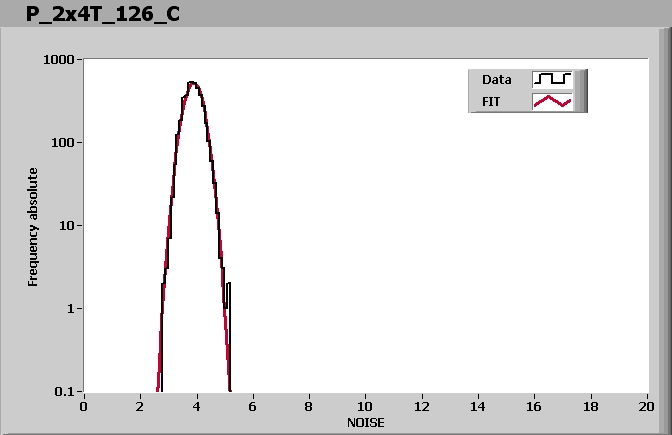

ROC3 NOISE			MEAN = 3.880494 SIGMA = 0.310992
ROC4 NOISE			MEAN = 4.775024 SIGMA = 0.389617
ROC5 NOISE			MEAN = 4.104697 SIGMA = 0.319500

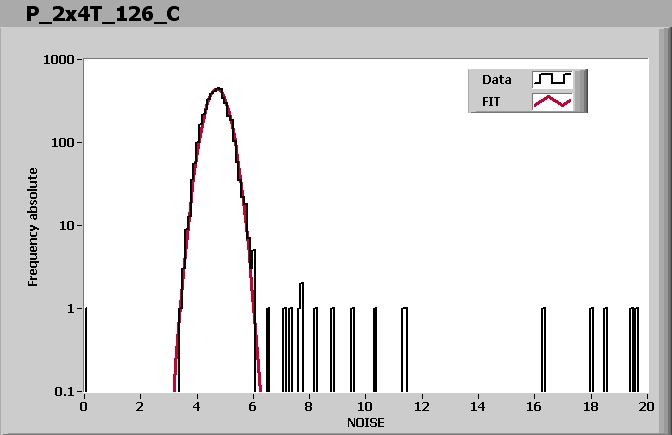

ROC6 NOISE			MEAN = 4.715272 SIGMA = 0.374558

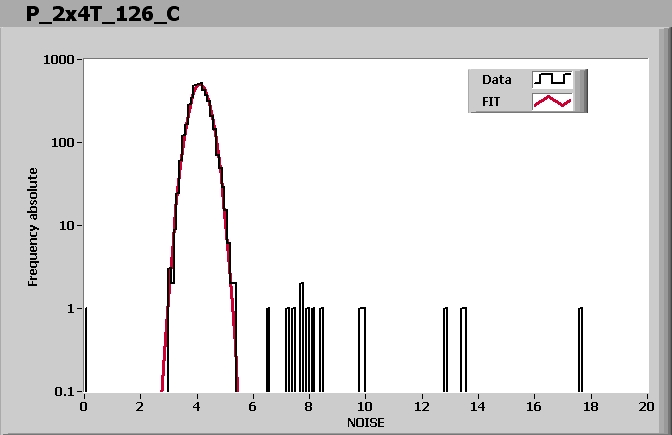

ROC7 NOISE			MEAN = 4.110083 SIGMA = 0.325792

Comment (if any):

End testing time: 10:29 AM
