P_2x4T_125

P_2x4T_125_C

Parts committed by Bolla Gino on date 5/22/2007

Part	ID
BBM	BBM_125-2x4T
VHDI	2x4_683

ROC ROC wafer Label

ROC0 KMNG2DT 55B

ROC1 KMNG2DT 65C

ROC2 KMNG2DT 65D

ROC3 KMNG2DT 55C

ROC4 KMNG2DT 16B

ROC5 KMNG2DT 65B

ROC6 KMNG2DT 75A

ROC7 KMNG2DT 65A

ROC	ROC wafer	Label
ROC0	KMNG2DT	55B
ROC1	KMNG2DT	65C
ROC2	KMNG2DT	65D
ROC3	KMNG2DT	55C
ROC4	KMNG2DT	16B
ROC5	KMNG2DT	65B
ROC6	KMNG2DT	75A
ROC7	KMNG2DT	65A

Inspected by Lockwood Gale on date 6/15/2007

LR_dev 0.026

LL_dev 0.039

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. ROC 3, Ch 25, ROC 2 Ch 35 ROC 0 Ch 1, No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 6/15/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/15/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 6/15/2007 by Ozhan Koybasi

P_2x4T_125_Con 6/18/2007 11:11 AM

PLAQUETTE TESTED on 2007-06-18 by Emily Grace

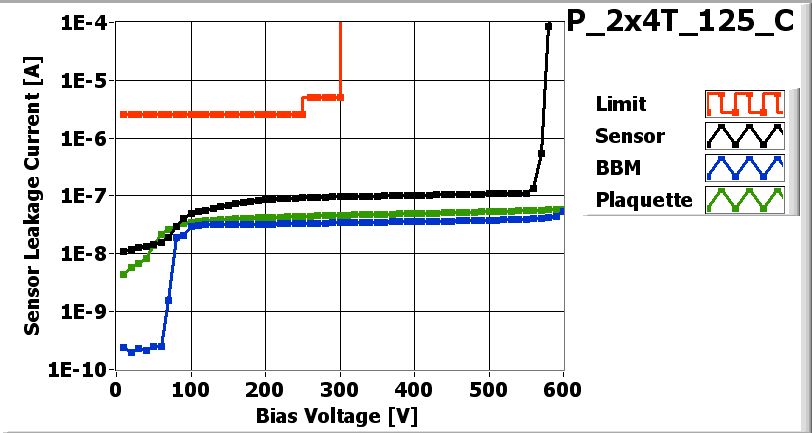

IV_XML-File

Maximum Voltage 600 V

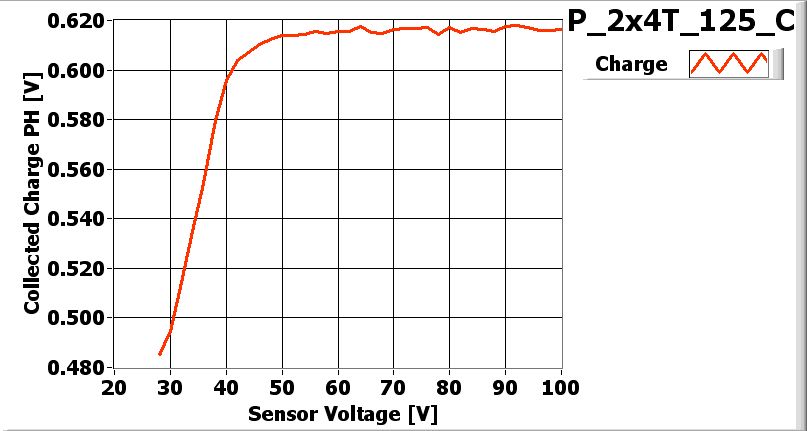

LASER_XML-File

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	158	156	164	160	168	148	160	154
Vana	123	151	138	132	130	148	127	129
Cal_Del	79	72	91	72	88	70	85	78
Vthrs_Comp	85	91	76	84	78	84	90	78
Unbumped	0	0	0	0	1	1	32	1
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	1	1	32	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

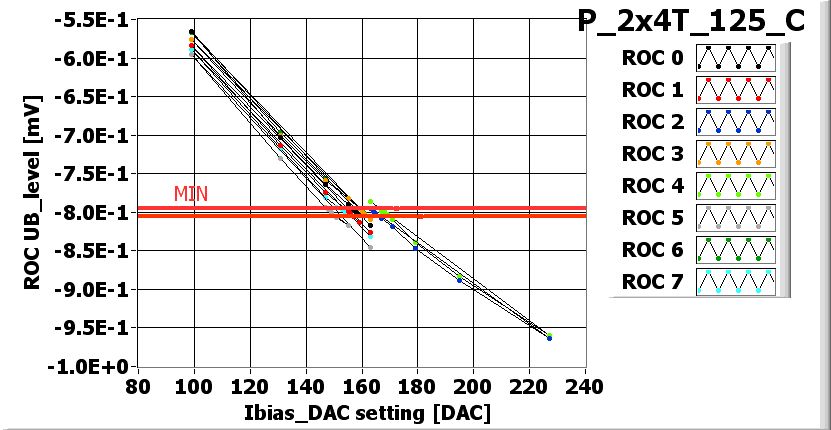

	I_BIAS_DAC_XML-File

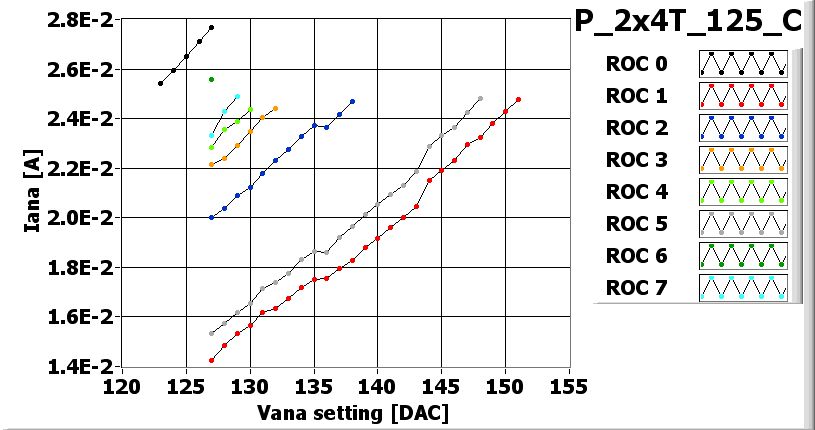

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	135	100	120	105	110	95	125	115
Vsf	135	150	140	140	140	145	135	140
VoffsetOp	70	95	80	90	95	100	80	85
VIbias_PH	100	100	100	100	105	100	105	100

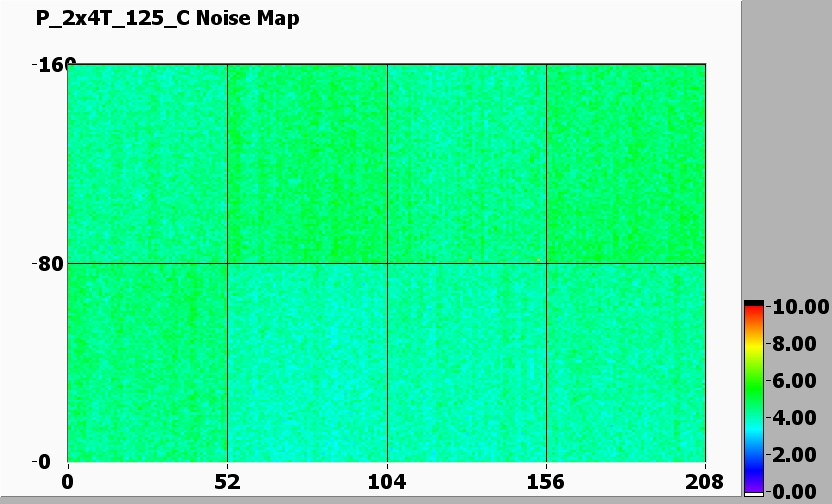

Noise MAP at VMAX

Efficiency MAP

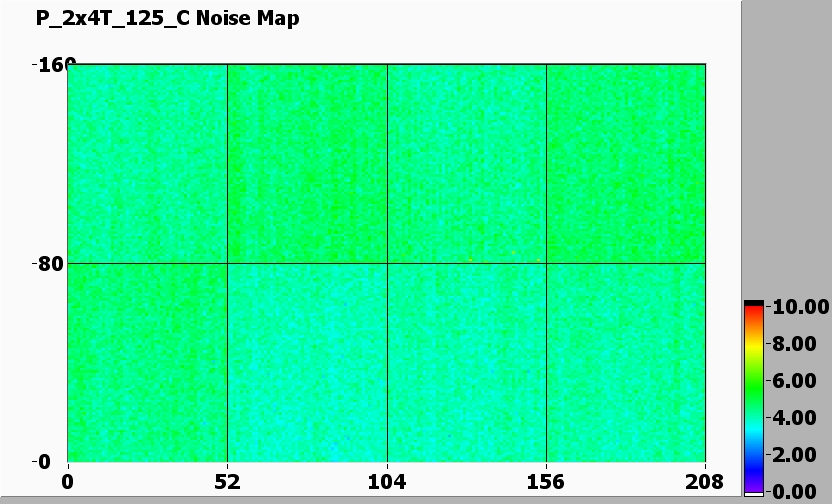

Noise MAP at -200 V

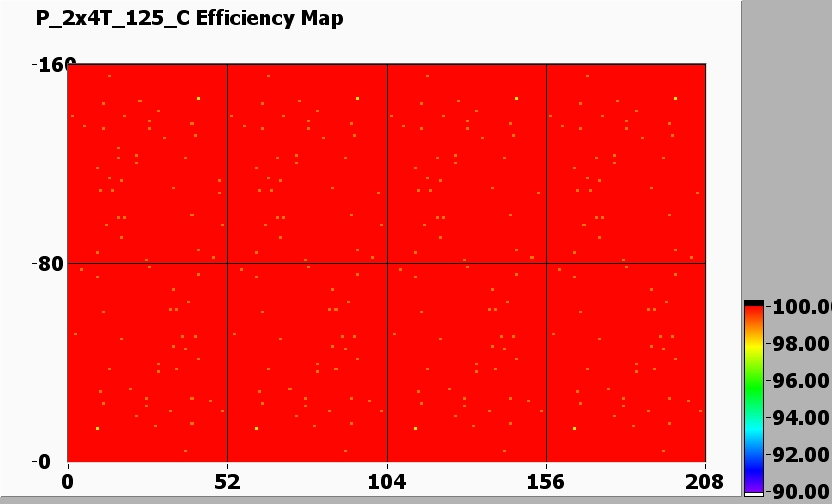

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-20
