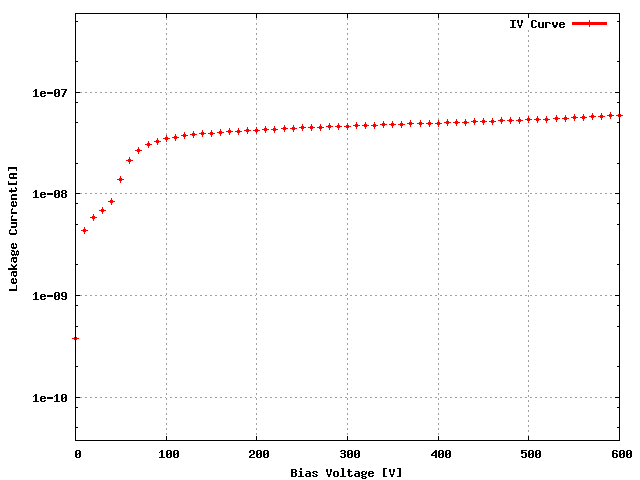

Sensor: S_2x4T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KMNG2DT	55B
ROC1	KMNG2DT	65C
ROC2	KMNG2DT	65D
ROC3	KMNG2DT	55C
ROC4	KMNG2DT	16B
ROC5	KMNG2DT	65B
ROC6	KMNG2DT	75A
ROC7	KMNG2DT	65A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	158	156	164	160	168	148	160	154
Vana, VanaData	123	151	138	132	130	148	127	129
CalDelData and plots	79	72	91	72	88	70	85	78
VthrCompData and plots	85	91	76	84	78	84	90	78
TestDdata ,TestD Plots	0	0	0	0	2	1	0	0
LightData ,Light Plots	0	0	0	0	1	1	32	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.434482 SIGMA = 0.347053

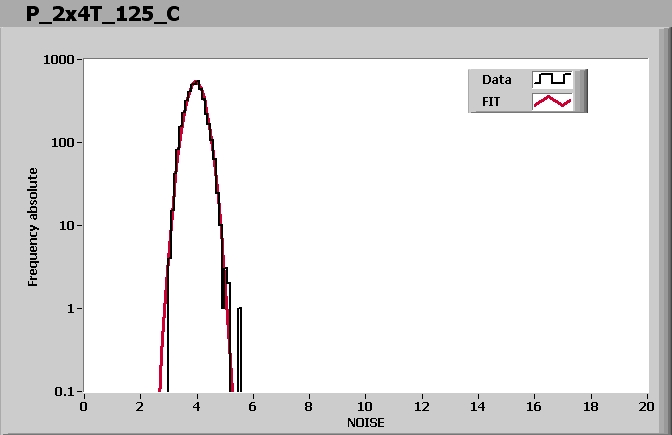

ROC1 NOISE			MEAN = 3.959182 SIGMA = 0.311426

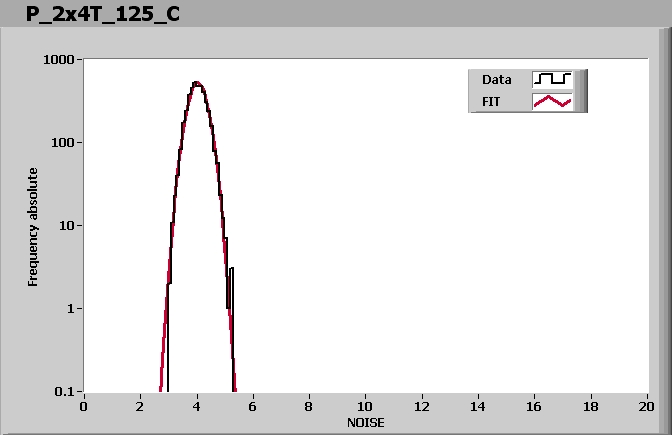

ROC2 NOISE			MEAN = 4.027098 SIGMA = 0.317126
ROC3 NOISE			MEAN = 4.149319 SIGMA = 0.339089
ROC4 NOISE			MEAN = 4.631404 SIGMA = 0.377073

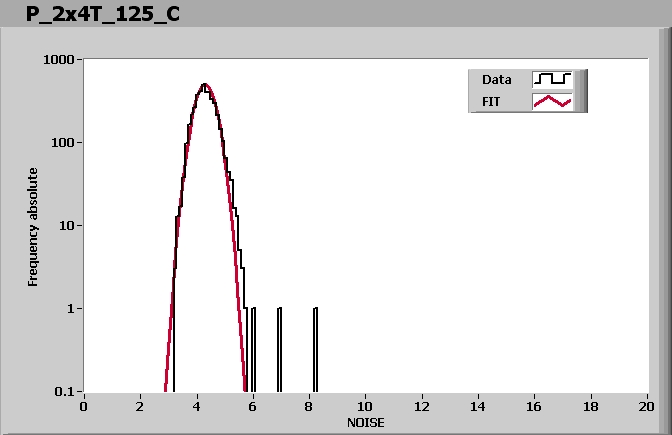

ROC5 NOISE			MEAN = 4.293194 SIGMA = 0.341721

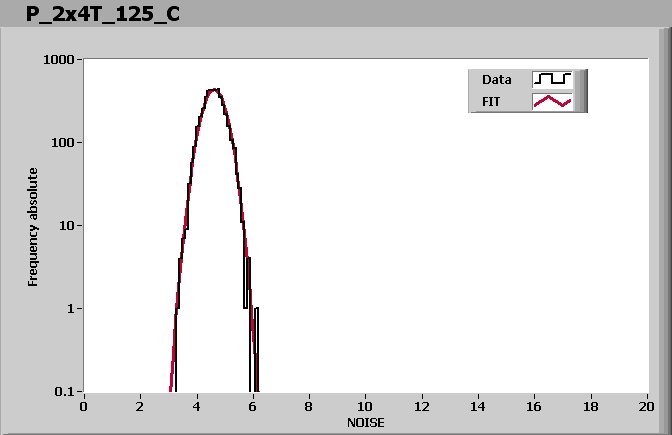

ROC6 NOISE			MEAN = 4.610180 SIGMA = 0.380398
ROC7 NOISE			MEAN = 4.240294 SIGMA = 0.335714

Comment (if any):

End testing time: 11:39 AM
