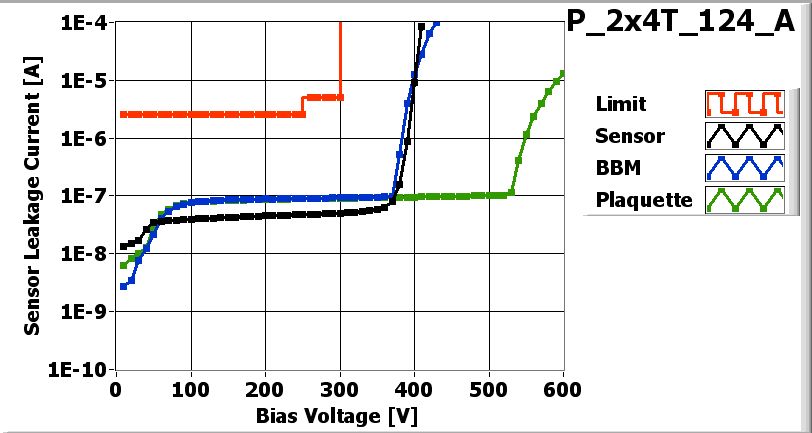

![[IMAGE] of](P_2x4T_124_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_124_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_124-2x4T |
| VHDI | 2x4_296 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 76B |
| ROC1 | W35_XH4K3HT | 76A |
| ROC2 | W35_XH4K3HT | 75D |
| ROC3 | W35_XH4K3HT | 75C |
| ROC4 | W36_XD4K3LT | 23B |
| ROC5 | W36_XD4K3LT | 23D |
| ROC6 | W36_XD4K3LT | 24A |
| ROC7 | W36_XD4K3LT | 24B |
Inspected by Arndt Kirk on date 3/1/2007
| LR_dev | 0.045 |
| LL_dev | 0.061 |
| FINAL COMMENT by Arndt Kirk | No assemy problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/1/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/5/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/5/2007 by Ozhan Koybasi
P_2x4T_124_Aon 3/5/2007 1:13 PM
P_2x4T_124_Aon 3/5/2007 1:13 PM
PLAQUETTE TESTED on 2007-03-05 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 138 | 138 | 134 | 140 | 146 | 132 | 144 | 128 | |
| Vana | 127 | 126 | 131 | 127 | 145 | 115 | 131 | 116 | |
| Cal_Del | 85 | 85 | 79 | 78 | 83 | 94 | 84 | 90 | |
| Vthrs_Comp | 75 | 78 | 80 | 76 | 84 | 69 | 80 | 70 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

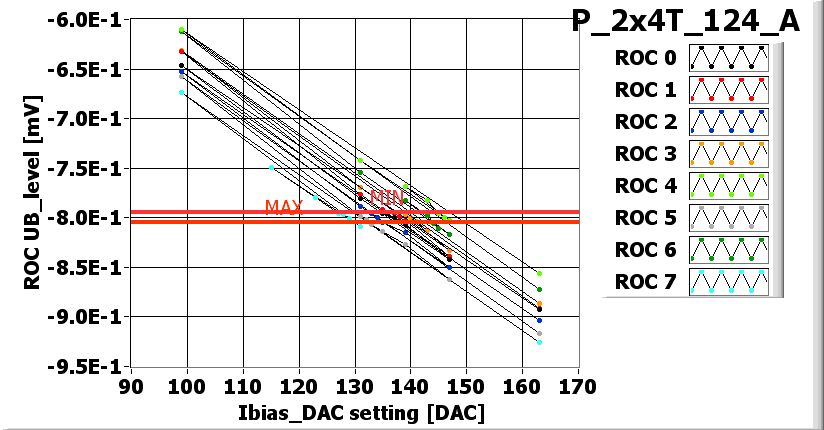

![[IMAGE] of](P_2x4T_124_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

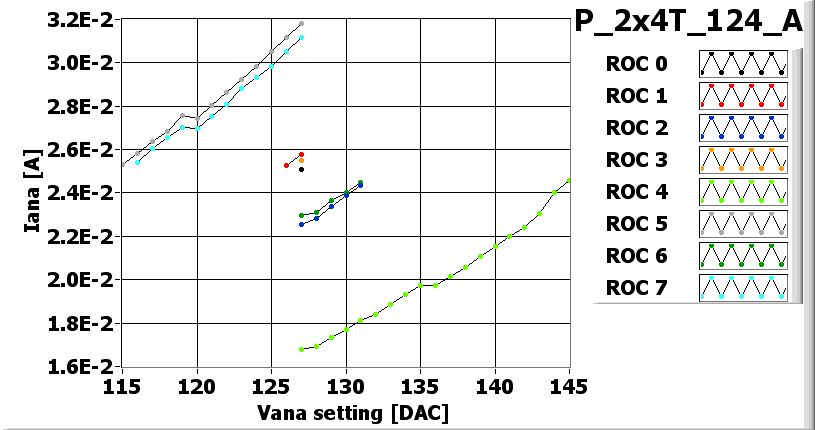

![[IMAGE] of](P_2x4T_124_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_124_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_124_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_124_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_124_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 110 | 115 | 170 | 95 | 150 | 115 | 155 |
| Vsf | 145 | 140 | 135 | 135 | 140 | 135 | 135 | 135 |
| VoffsetOp | 70 | 55 | 80 | 85 | 90 | 55 | 75 | 70 |
| VIbias_PH | 100 | 105 | 95 | 105 | 105 | 100 | 100 | 95 |

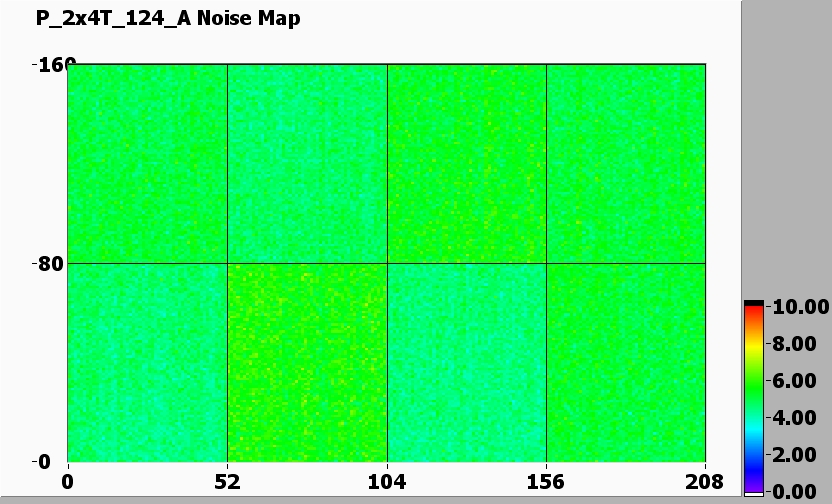

Noise MAP
![[IMAGE] of](P_2x4T_124_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_124_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
