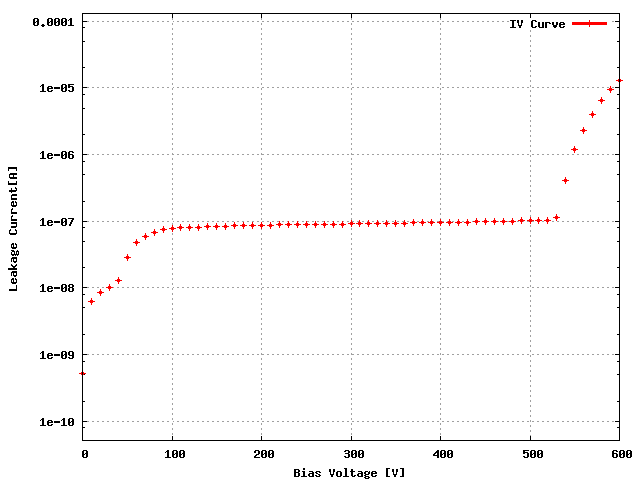

Sensor: S_2x4T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W35_XH4K3HT | 76B |
ROC1 | W35_XH4K3HT | 76A |
ROC2 | W35_XH4K3HT | 75D |
ROC3 | W35_XH4K3HT | 75C |
ROC4 | W36_XD4K3LT | 23B |
ROC5 | W36_XD4K3LT | 23D |
ROC6 | W36_XD4K3LT | 24A |
ROC7 | W36_XD4K3LT | 24B |
Ibias_DAC, Ibias_DAC Data | 138 | 138 | 134 | 140 | 146 | 132 | 144 | 128 |
Vana, VanaData | 127 | 126 | 131 | 127 | 145 | 115 | 131 | 116 |
CalDelData and plots | 85 | 85 | 79 | 78 | 83 | 94 | 84 | 90 |
VthrCompData and plots | 75 | 78 | 80 | 76 | 84 | 69 | 80 | 70 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

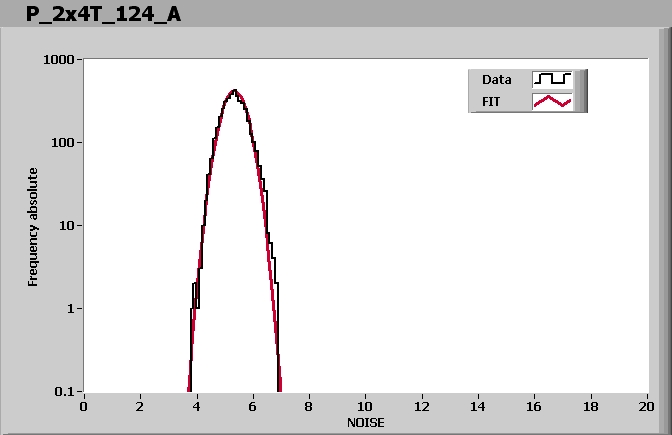

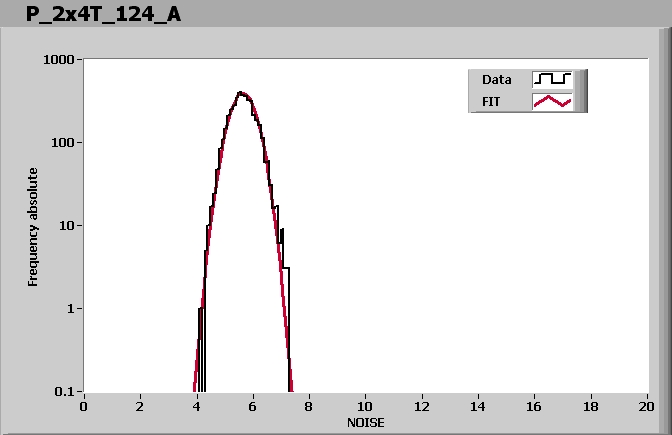

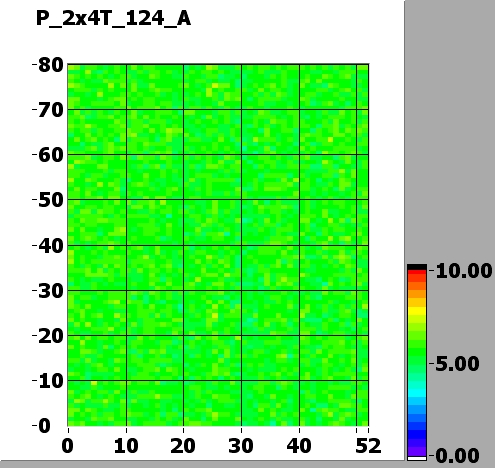

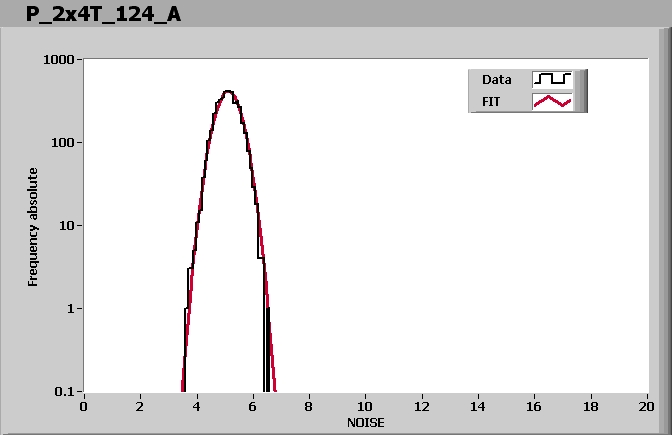

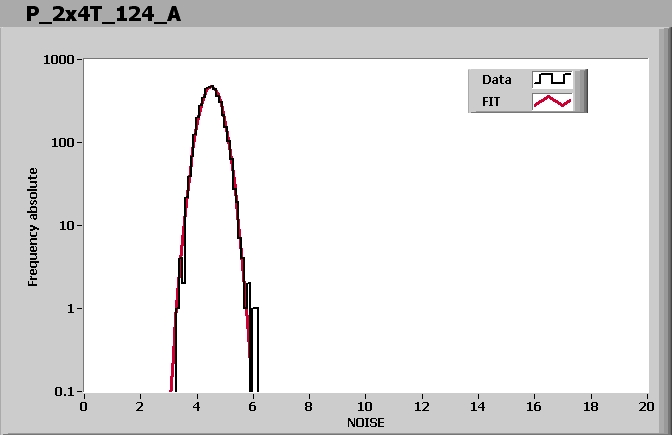

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 120 | 110 | 115 | 170 | 95 | 150 | 115 | 155 |
Vsf | 145 | 140 | 135 | 135 | 140 | 135 | 135 | 135 |
VoffsetOp | 70 | 55 | 80 | 85 | 90 | 55 | 75 | 70 |
VIbias_PH | 100 | 105 | 95 | 105 | 105 | 100 | 100 | 95 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:33 PM
