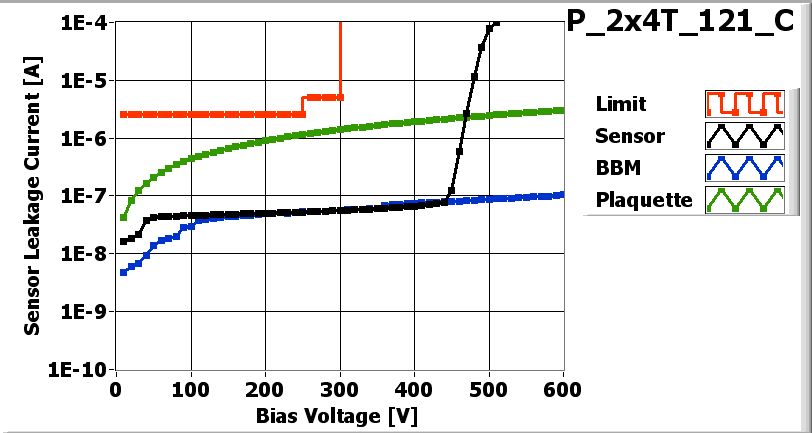

![[IMAGE] of](P_2x4T_121_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

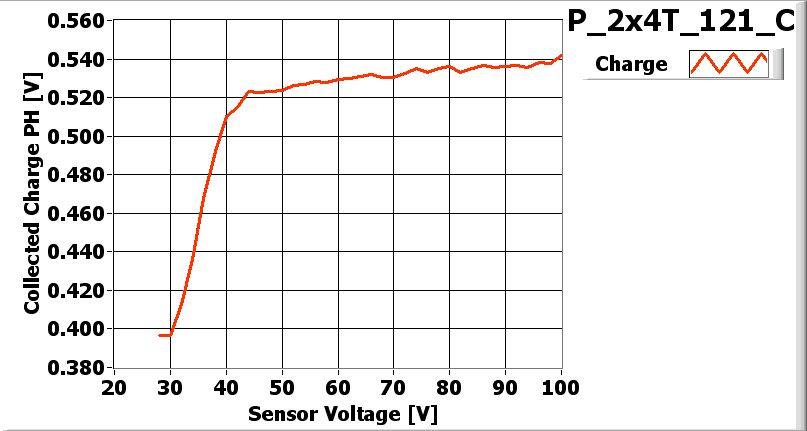

![[IMAGE] of](P_2x4T_121_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_121-2x4T |
| VHDI | 2x4_408 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 20D |
| ROC1 | KZNG1JT | 21B |
| ROC2 | KZNG1JT | 21D |
| ROC3 | KZNG1JT | 31C |
| ROC4 | KZNG1JT | 40D |
| ROC5 | KZNG1JT | 40A |
| ROC6 | KZNG1JT | 20B |
| ROC7 | KZNG1JT | 30C |
Inspected by Lockwood Gale on date 6/7/2007
| LR_dev | 0.033 |
| LL_dev | 0.034 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/7/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/7/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/7/2007 by Kozak Brian
P_2x4T_121_Con 6/8/2007 10:40 AM
P_2x4T_121_Con 6/8/2007 10:40 AM
PLAQUETTE TESTED on 2007-06-08 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 158 | 156 | 154 | 172 | 150 | 160 | 146 | 170 | |
| Vana | 125 | 138 | 148 | 144 | 129 | 151 | 125 | 144 | |
| Cal_Del | 75 | 78 | 92 | 68 | 74 | 78 | 83 | 72 | |
| Vthrs_Comp | 79 | 86 | 77 | 88 | 80 | 87 | 79 | 82 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 7 | 7 | 13 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 7 | 7 | 13 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

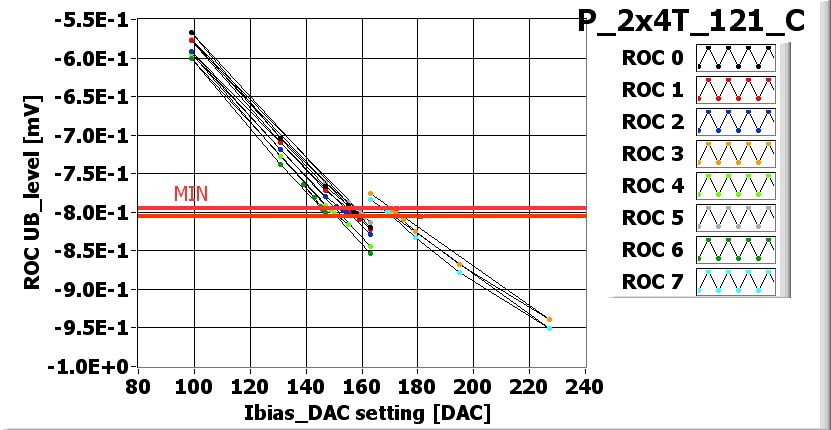

![[IMAGE] of](P_2x4T_121_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

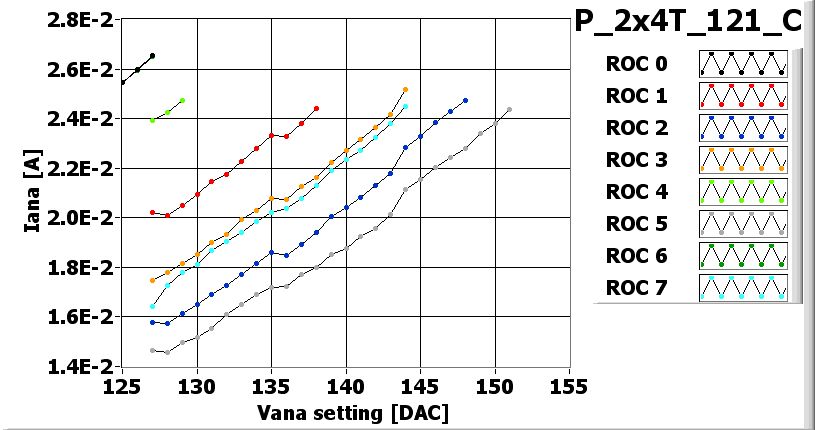

![[IMAGE] of](P_2x4T_121_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_121_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_121_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_121_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_121_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 115 | 100 | 95 | 130 | 100 | 120 | 100 |
| Vsf | 140 | 140 | 145 | 145 | 140 | 155 | 140 | 145 |
| VoffsetOp | 70 | 80 | 90 | 90 | 65 | 90 | 80 | 100 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 105 | 105 | 95 |

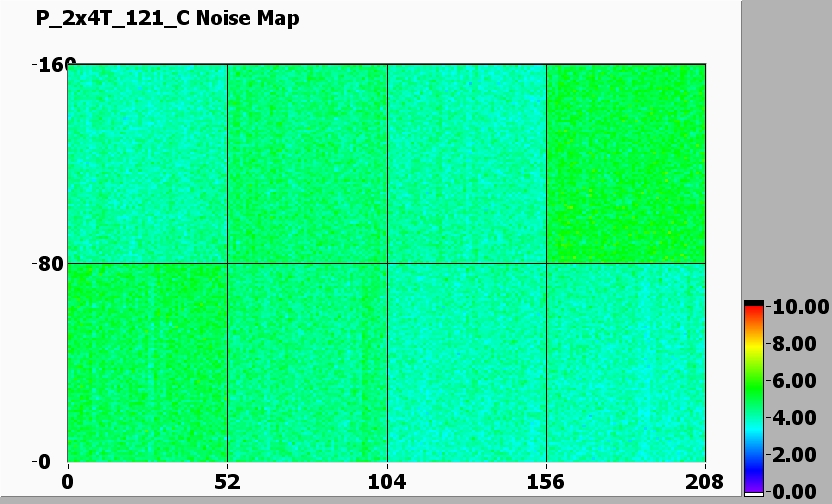

Noise MAP at VMAX
![[IMAGE] of](P_2x4T_121_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_121_C-580-efficiency.jpg)

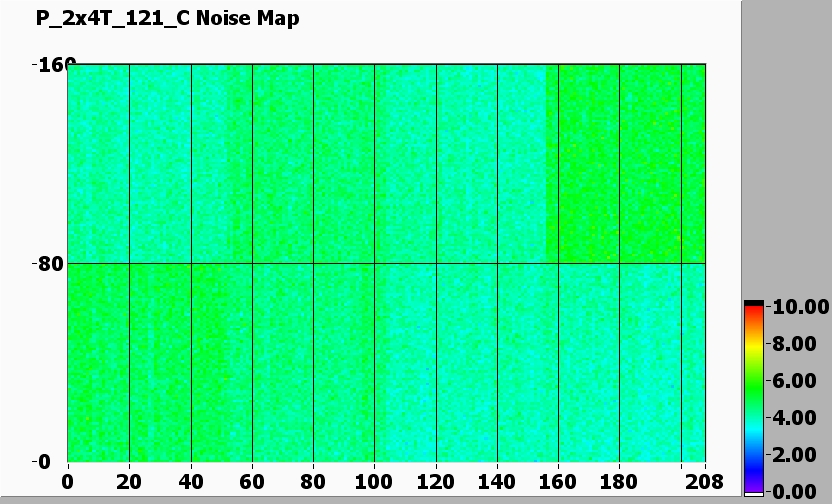

Noise MAP at -200 V
![[IMAGE] of](P_2x4T_121_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_121_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
