P_2x4T_121_C

Production testing

Date:6/8/2007

Operator: Emily Grace

start testing time:10:40 AM

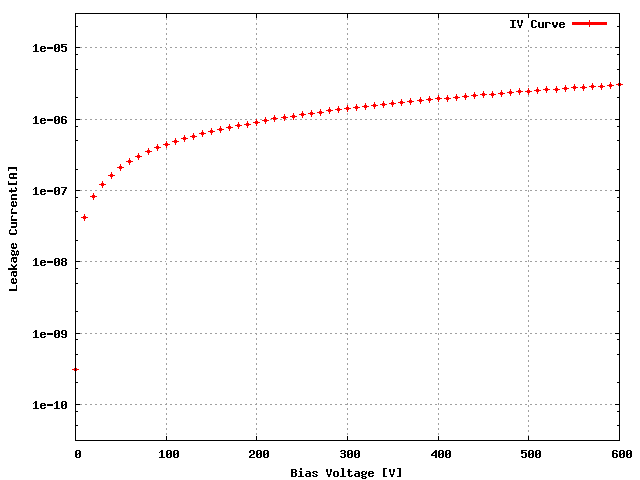

Sensor: S_2x4T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KZNG1JT20D
ROC1KZNG1JT21B
ROC2KZNG1JT21D
ROC3KZNG1JT31C
ROC4KZNG1JT40D
ROC5KZNG1JT40A
ROC6KZNG1JT20B
ROC7KZNG1JT30C

Depletion Voltage is -46 and suggested operational voltage is -86
Ibias_DAC, Ibias_DAC Data 158 156 154 172 150 160 146 170
Vana, VanaData 125 138 148 144 129 151 125 144
CalDelData and plots7578926874788372
VthrCompData and plots7986778880877982
TestDdata ,TestD Plots00000102
LightData ,Light Plots100007713
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe13011510095130100120100
Vsf140140145145140155140145
VoffsetOp70809090659080100
VIbias_PH10010010510010010510595
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.788078

SIGMA = 0.385336

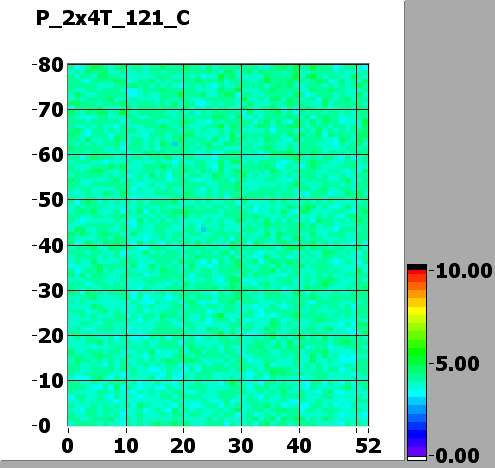

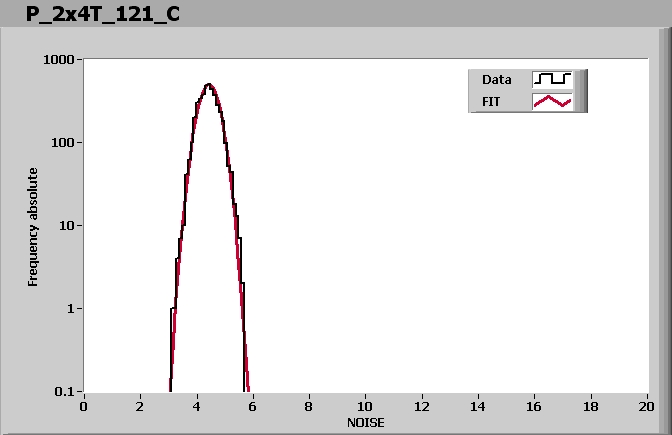

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.423585

SIGMA = 0.336237
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 3.998098

SIGMA = 0.322697
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 3.961682

SIGMA = 0.314538
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.042430

SIGMA = 0.404847
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.087407

SIGMA = 0.322776
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.543221

SIGMA = 0.342961
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.102652

SIGMA = 0.316889

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:06 AM
