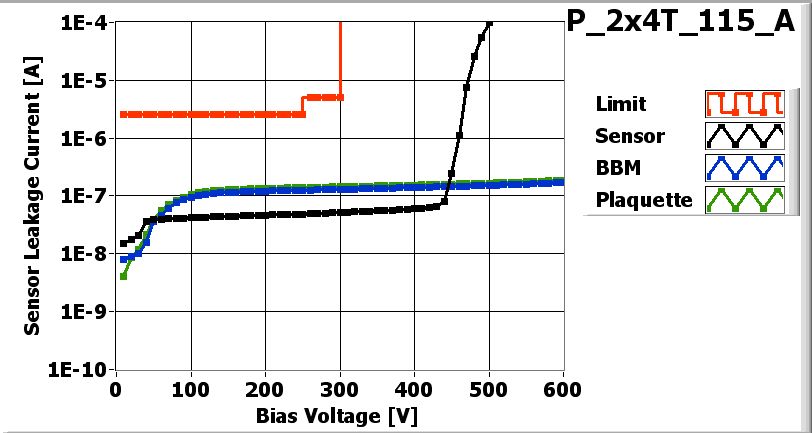

![[IMAGE] of](P_2x4T_115_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_115_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_115-2x4T |
| VHDI | 2x4_293 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 54A |
| ROC1 | W34_XA4K3PT | 53C |
| ROC2 | W34_XA4K3PT | 53B |
| ROC3 | W34_XA4K3PT | 53A |
| ROC4 | W34_XA4K3PT | 49C |
| ROC5 | W34_XA4K3PT | 49D |
| ROC6 | W34_XA4K3PT | 30A |
| ROC7 | W34_XA4K3PT | 30B |
Inspected by Arndt Kirk on date 3/5/2007
| LR_dev | 0.058 |
| LL_dev | 0.076 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem |
PLAQUETTE made READY for ENCAPSULATION on 3/5/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/6/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/6/2007 by Ozhan Koybasi
P_2x4T_115_Aon 3/9/2007 10:50 AM
P_2x4T_115_A-1on 3/9/2007 11:26 AM
P_2x4T_115_A-1on 3/9/2007 11:26 AM
PLAQUETTE TESTED on 2007-03-09 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 144 | 140 | 140 | 154 | 138 | 140 | 140 | 140 | |
| Vana | 133 | 139 | 133 | 144 | 131 | 130 | 132 | 111 | |
| Cal_Del | 71 | 78 | 73 | 75 | 88 | 72 | 85 | 84 | |
| Vthrs_Comp | 87 | 80 | 72 | 85 | 78 | 84 | 78 | 73 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

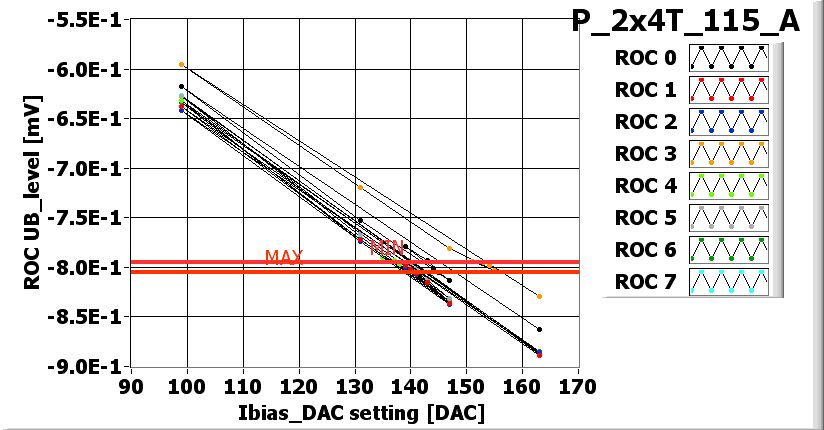

![[IMAGE] of](P_2x4T_115_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

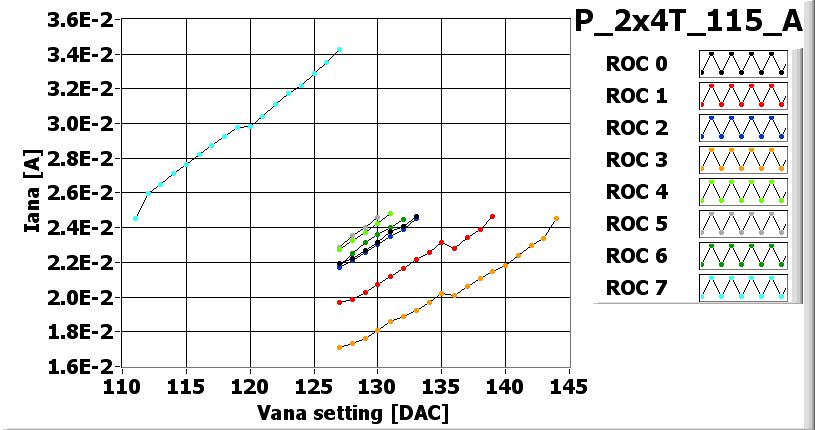

![[IMAGE] of](P_2x4T_115_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_115_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_115_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_115_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_115_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 115 | 125 | 105 | 115 | 130 | 80 | 155 |
| Vsf | 145 | 140 | 140 | 140 | 135 | 140 | 140 | 135 |
| VoffsetOp | 80 | 80 | 85 | 105 | 115 | 85 | 90 | 65 |
| VIbias_PH | 100 | 100 | 100 | 100 | 95 | 95 | 95 | 105 |

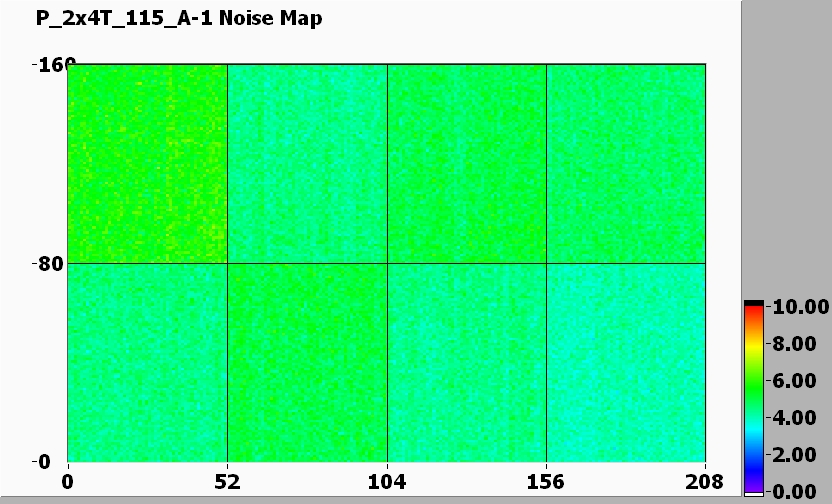

Noise MAP
![[IMAGE] of](P_2x4T_115_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_115_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
