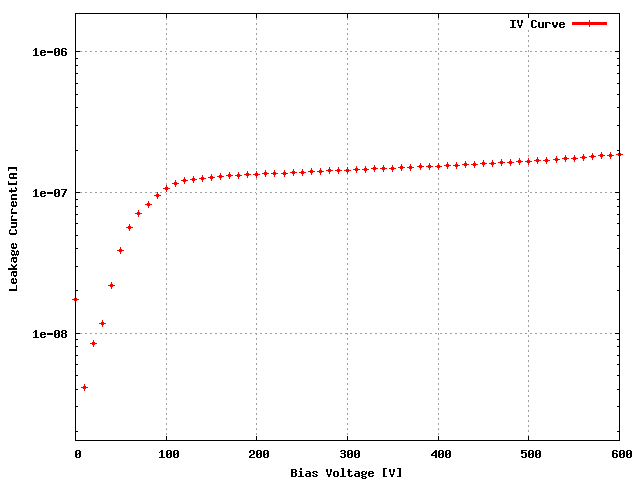

Sensor: S_2x4T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W34_XA4K3PT | 54A |
ROC1 | W34_XA4K3PT | 53C |
ROC2 | W34_XA4K3PT | 53B |
ROC3 | W34_XA4K3PT | 53A |
ROC4 | W34_XA4K3PT | 49C |
ROC5 | W34_XA4K3PT | 49D |
ROC6 | W34_XA4K3PT | 30A |
ROC7 | W34_XA4K3PT | 30B |
Ibias_DAC, Ibias_DAC Data | 144 | 140 | 140 | 154 | 138 | 140 | 140 | 140 |
Vana, VanaData | 133 | 139 | 133 | 144 | 131 | 130 | 132 | 111 |
CalDelData and plots | 71 | 78 | 73 | 75 | 88 | 72 | 85 | 84 |
VthrCompData and plots | 87 | 80 | 72 | 85 | 78 | 84 | 78 | 73 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

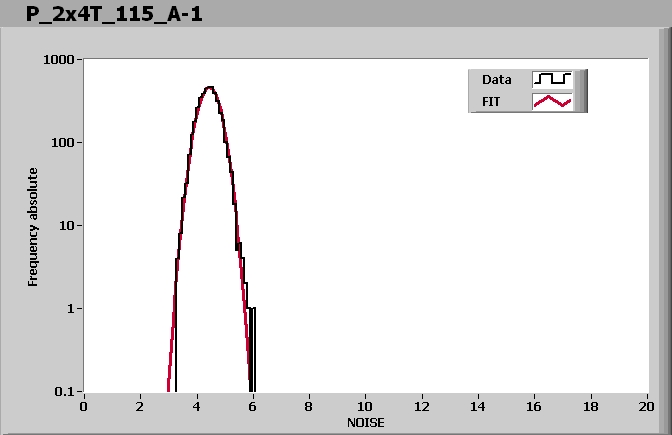

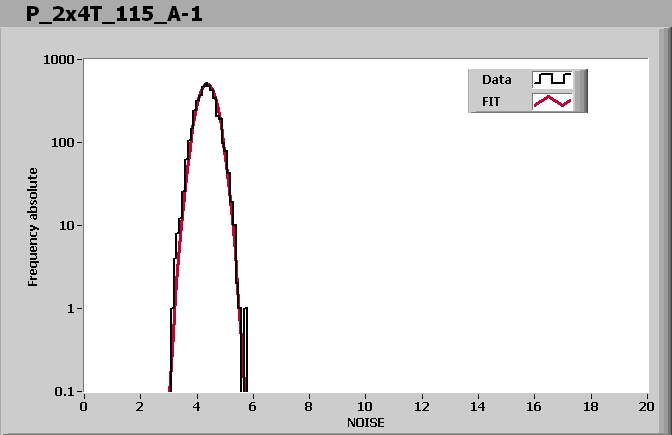

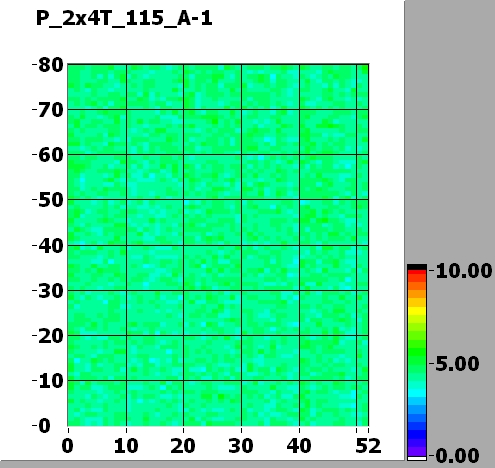

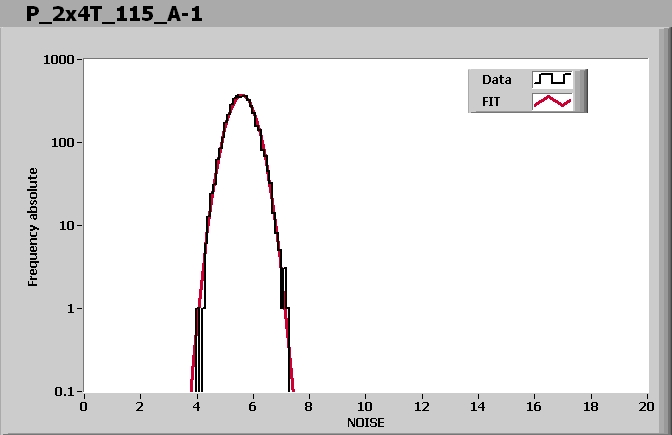

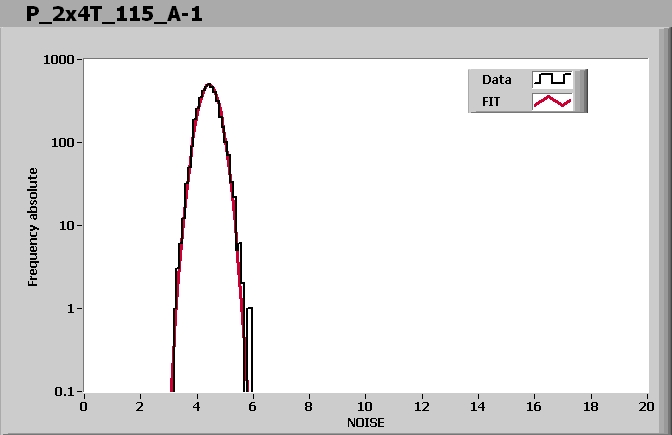

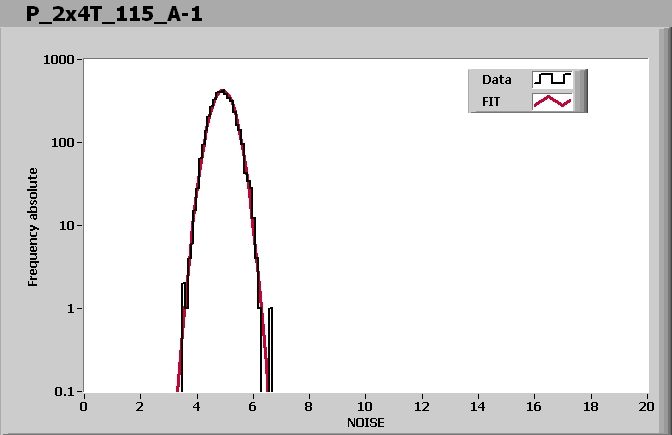

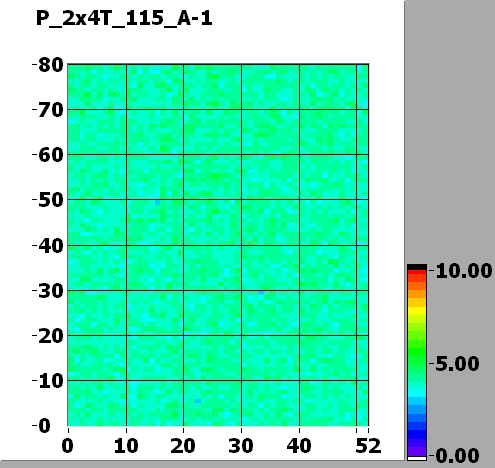

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 115 | 115 | 125 | 105 | 115 | 130 | 80 | 155 |
Vsf | 145 | 140 | 140 | 140 | 135 | 140 | 140 | 135 |
VoffsetOp | 80 | 80 | 85 | 105 | 115 | 85 | 90 | 65 |
VIbias_PH | 100 | 100 | 100 | 100 | 95 | 95 | 95 | 105 |
Comment (if any): Good.
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 11:57 AM
