P_2x4T_097

P_2x4T_097_C

Parts committed by Bolla Gino on date 5/29/2007

Part	ID
BBM	BBM_097-2x4T
VHDI	2x4_715

ROC ROC wafer Label

ROC0 KZNG1JT 27D

ROC1 KZNG1JT 67A

ROC2 KZNG1JT 57A

ROC3 KZNG1JT 47B

ROC4 KZNG1JT 17B

ROC5 KZNG1JT 27C

ROC6 KZNG1JT 67D

ROC7 KZNG1JT 57C

ROC	ROC wafer	Label
ROC0	KZNG1JT	27D
ROC1	KZNG1JT	67A
ROC2	KZNG1JT	57A
ROC3	KZNG1JT	47B
ROC4	KZNG1JT	17B
ROC5	KZNG1JT	27C
ROC6	KZNG1JT	67D
ROC7	KZNG1JT	57C

Inspected by Arndt Kirk on date 6/14/2007

LR_dev 0.014

LL_dev 0.015

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Arndt Kirk

Assembled at HALF-PRESSURE. No assembly problems. All wirebonds OK

PLAQUETTE made READY for ENCAPSULATION on 6/14/2007 by Arndt Kirk

PLAQUETTE encapsulated on 6/14/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 6/14/2007 by Ozhan Koybasi

P_2x4T_097_Con 6/15/2007 11:16 AM

PLAQUETTE TESTED on 2007-06-15 by Emily Grace

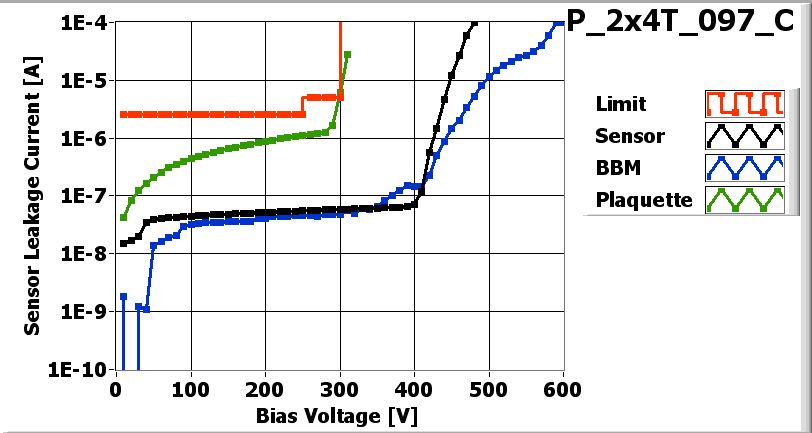

IV_XML-File

Maximum Voltage 310 V

LASER_XML-File

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	166	150	166	174	156	164	154	162
Vana	131	124	144	138	137	151	131	143
Cal_Del	81	98	65	71	78	73	72	76
Vthrs_Comp	90	71	93	87	79	89	81	84
Unbumped	550	325	404	313	552	429	506	783
Dead	0	0	0	0	0	0	0	1
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	550	325	404	313	552	429	506	784

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

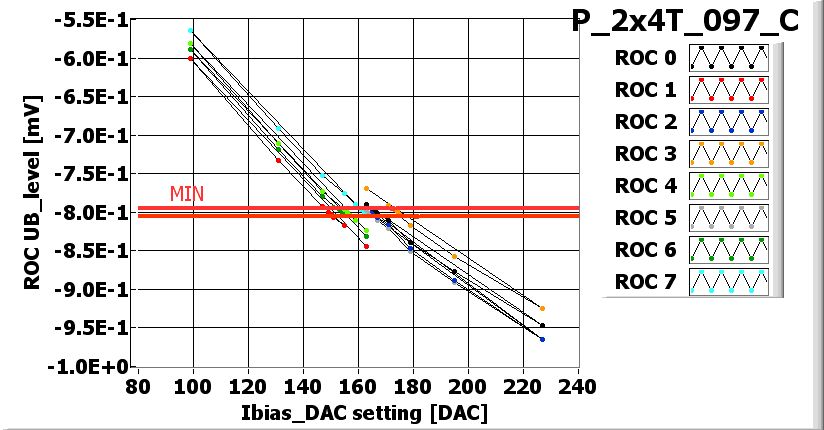

	I_BIAS_DAC_XML-File

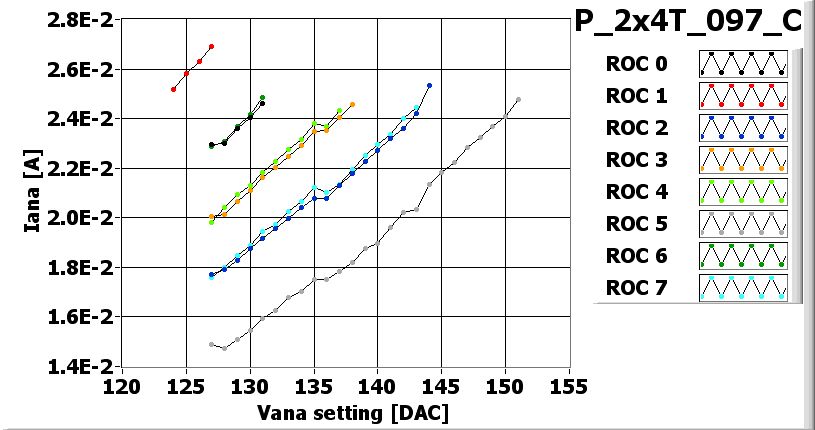

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

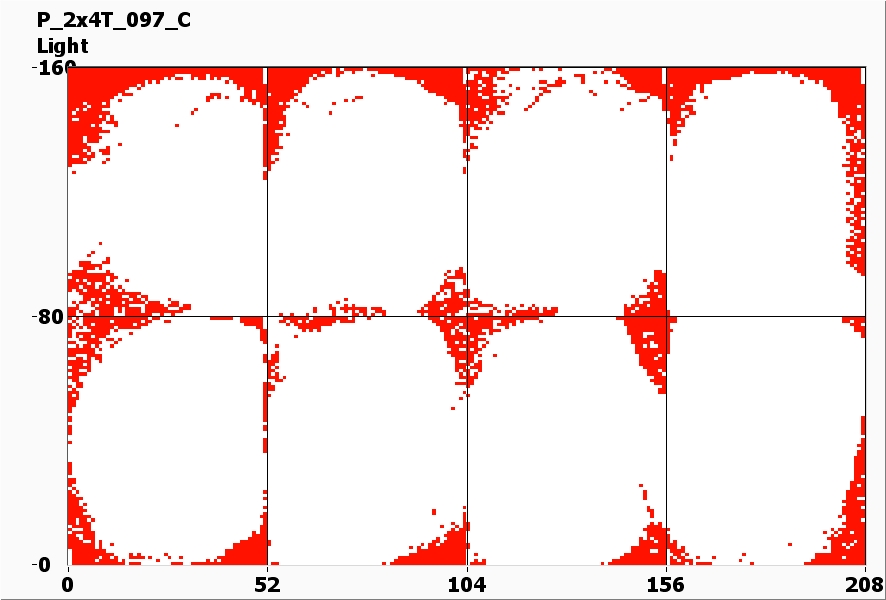

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	105	135	95	110	105	100	115	105
Vsf	140	135	145	145	140	150	135	140
VoffsetOp	85	85	95	95	100	90	85	95
VIbias_PH	100	100	95	100	100	100	100	105

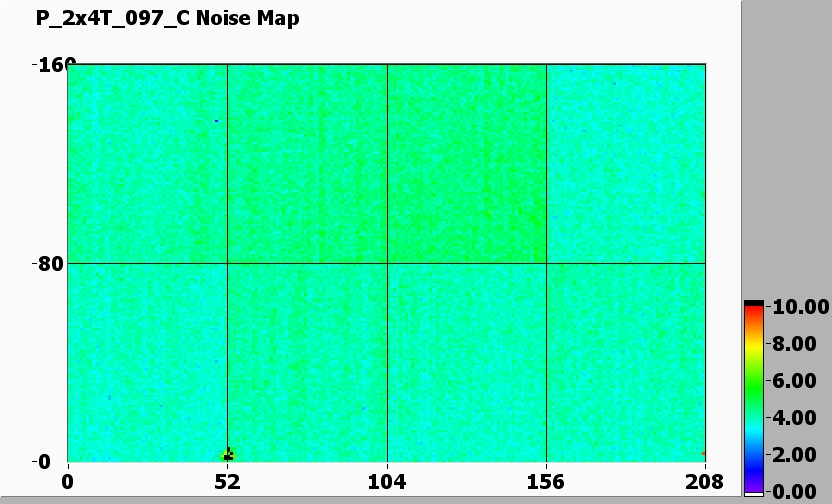

Noise MAP at VMAX

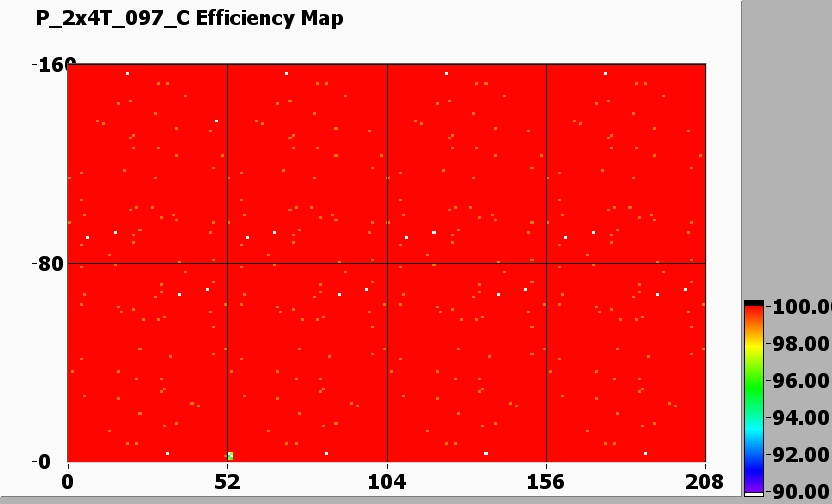

Efficiency MAP

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-20
