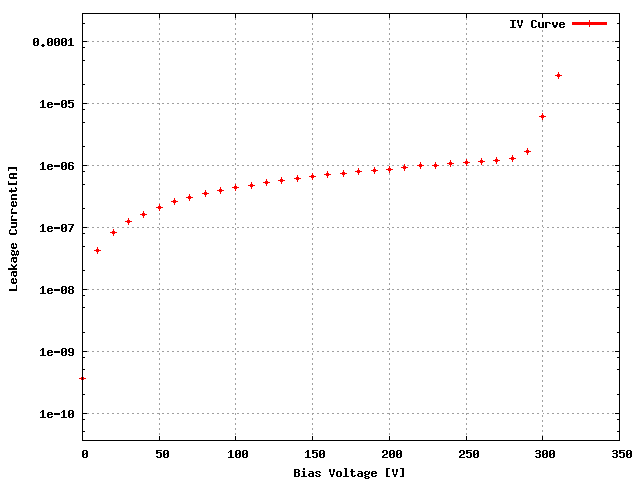

Sensor: S_2x4T_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KZNG1JT	27D
ROC1	KZNG1JT	67A
ROC2	KZNG1JT	57A
ROC3	KZNG1JT	47B
ROC4	KZNG1JT	17B
ROC5	KZNG1JT	27C
ROC6	KZNG1JT	67D
ROC7	KZNG1JT	57C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	166	150	166	174	156	164	154	162
Vana, VanaData	131	124	144	138	137	151	131	143
CalDelData and plots	81	98	65	71	78	73	72	76
VthrCompData and plots	90	71	93	87	79	89	81	84
TestDdata ,TestD Plots	55	53	33	39	13	2	36	50
LightData ,Light Plots	550	325	404	313	552	429	506	783
Pass/Fail TestD	BAD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD
Pass/Fail LIGHT	BAD	BAD	BAD	BAD	BAD	BAD	BAD	BAD

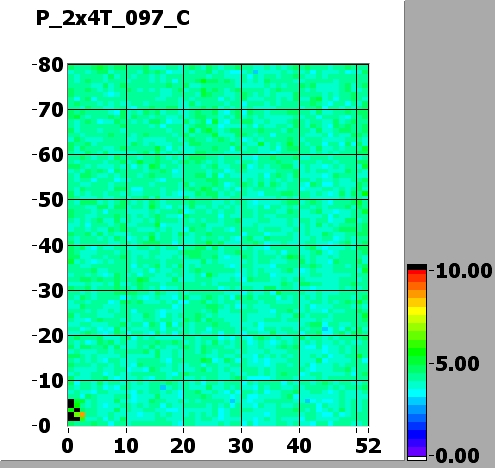

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

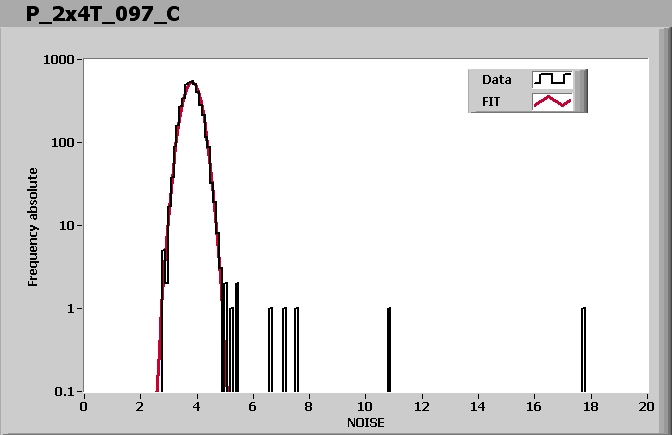

ROC0 NOISE			MEAN = 3.820968 SIGMA = 0.302721

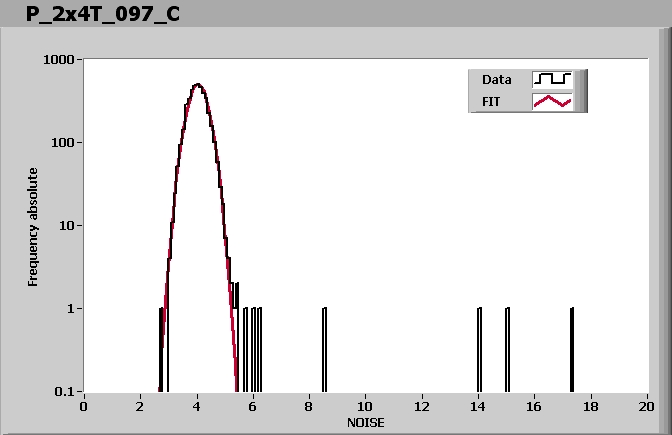

ROC1 NOISE			MEAN = 4.038649 SIGMA = 0.332976

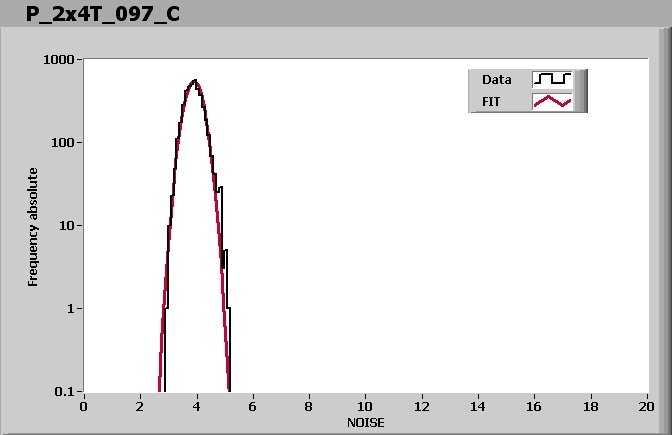

ROC2 NOISE			MEAN = 3.891939 SIGMA = 0.300633
ROC3 NOISE			MEAN = 3.941040 SIGMA = 0.313539

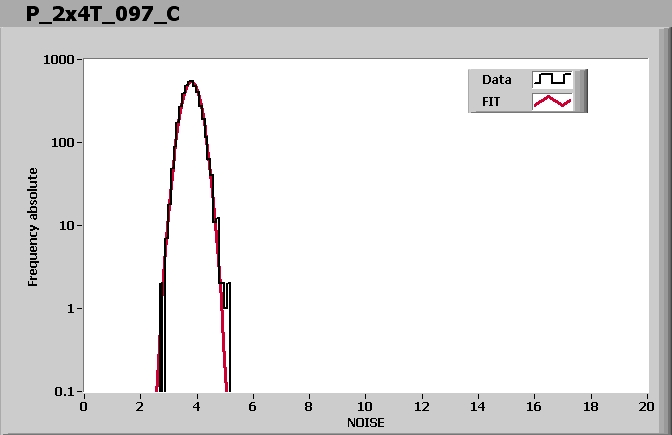

ROC4 NOISE			MEAN = 3.803184 SIGMA = 0.300705

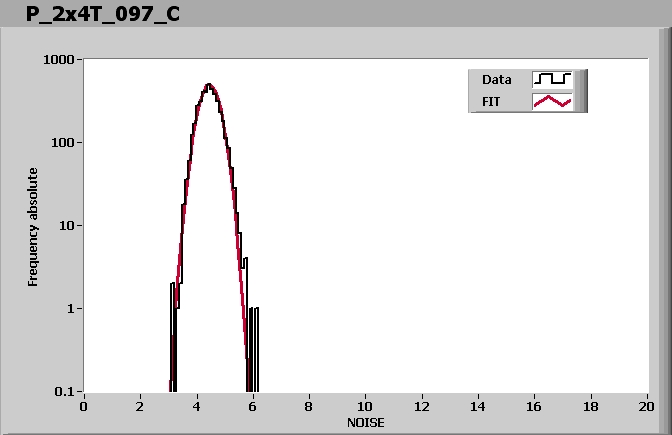

ROC5 NOISE			MEAN = 4.442846 SIGMA = 0.339777
ROC6 NOISE			MEAN = 4.298238 SIGMA = 0.348017

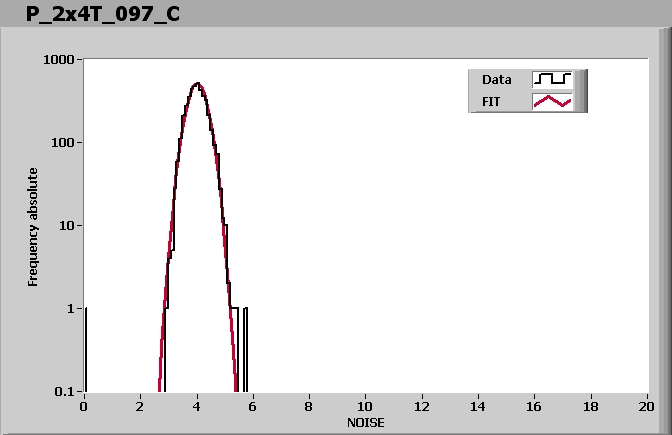

ROC7 NOISE			MEAN = 4.010586 SIGMA = 0.330271

Comment (if any):

End testing time: 11:43 AM
