| IV_XML-File |

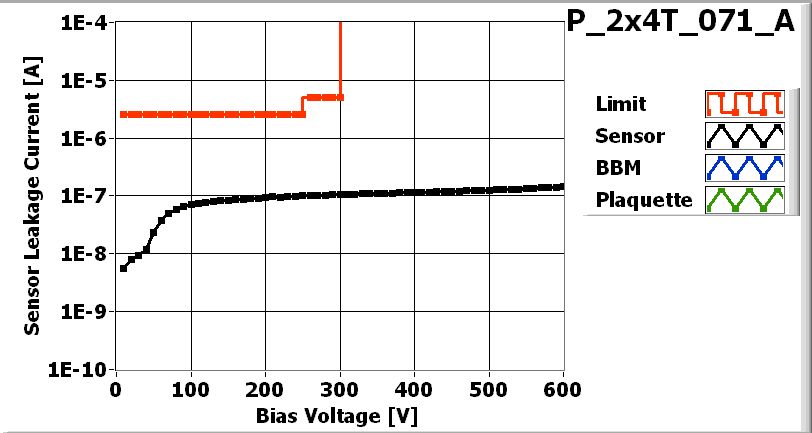

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_071_A_LASER.jpg)
| LASER_XML-File |

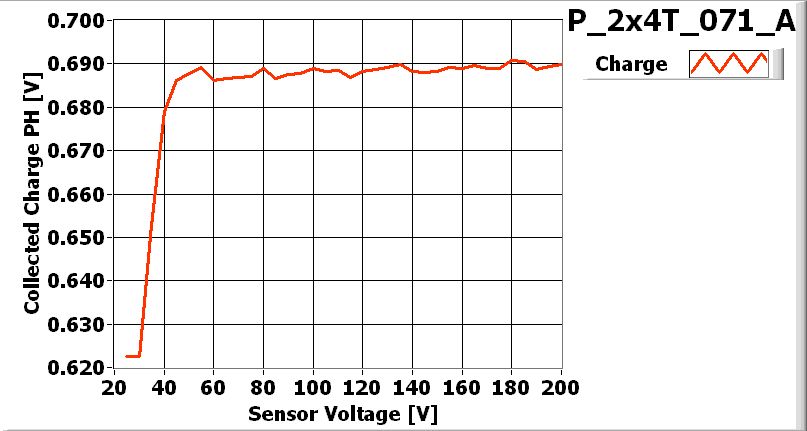

| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_071-2x4T |
| VHDI | 2x4_350 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 28C |
| ROC1 | X14JP6T | 28B |
| ROC2 | X14JP6T | 28A |
| ROC3 | X14JP6T | 27D |
| ROC4 | X14JP6T | 16A |
| ROC5 | X14JP6T | 16B |
| ROC6 | X14JP6T | 16C |
| ROC7 | X14JP6T | 16D |
Inspected by Arndt Kirk on date 2006-07-03
| LR_dev | 0.032 |
| LL_dev | 0.033 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-03 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-05 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 149 | 164 | 159 | 165 | 171 | 154 | 157 | 158 | |
| Vana | 117 | 131 | 127 | 124 | 124 | 118 | 114 | 129 | |
| Cal_Del | 103 | 82 | 89 | 89 | 91 | 82 | 92 | 93 | |
| Vthrs_Comp | 63 | 82 | 74 | 68 | 74 | 75 | 64 | 70 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_071_A_Ibias-dac.jpg) |

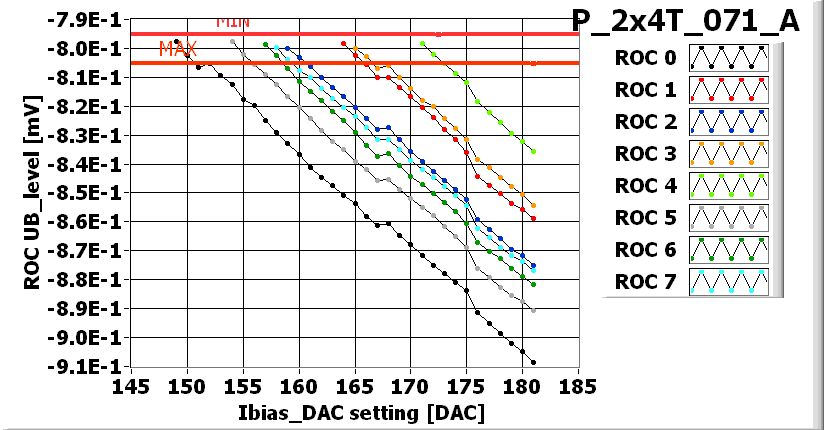

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_071_A_Vana.jpg) |

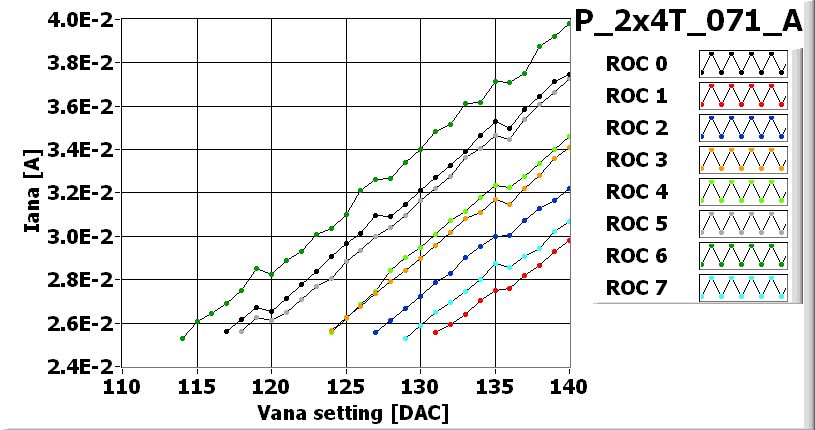

VANA_XML-File |
![[IMAGE] of](P_2x4T_071_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_071_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_071_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_071_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-11
