| IV_XML-File |

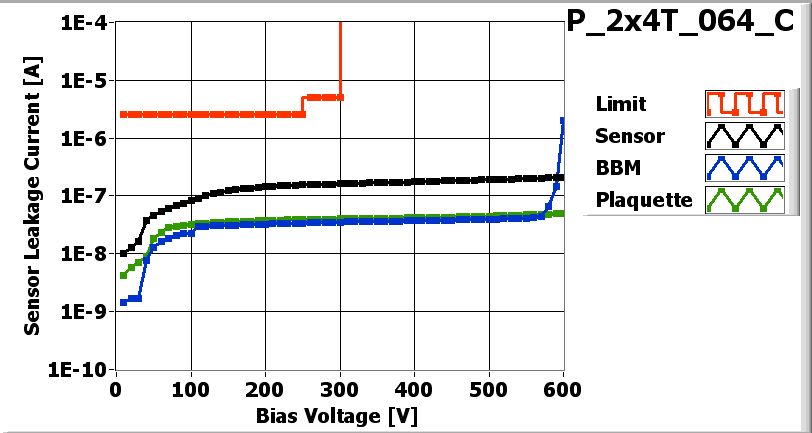

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_064_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/4/2007
| Part | ID |
|---|---|
| BBM | BBM_064-2x4T |
| VHDI | 2x4_496 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 26D |
| ROC1 | XH4KFBT | 29D |
| ROC2 | XH4KFBT | 25D |
| ROC3 | XH4KFBT | 20A |
| ROC4 | XH4KFBT | 21A |
| ROC5 | XH4KFBT | 23A |
| ROC6 | XH4KFBT | 22A |
| ROC7 | XH4KFBT | 25A |
Inspected by Lockwood Gale on date 4/6/2007
| LR_dev | 0.072 |
| LL_dev | 0.033 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 0 Ch 2,2 attempts, no wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/6/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/9/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/9/2007 by Ozhan Koybasi
P_2x4T_064_Con 4/10/2007 10:42 AM
P_2x4T_064_Con 4/10/2007 10:42 AM
PLAQUETTE TESTED on 2007-04-10 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 138 | 126 | 134 | 150 | 134 | 132 | 144 | 136 | |
| Vana | 124 | 127 | 131 | 128 | 130 | 144 | 129 | 140 | |
| Cal_Del | 71 | 83 | 82 | 70 | 97 | 81 | 66 | 76 | |
| Vthrs_Comp | 76 | 74 | 77 | 80 | 68 | 78 | 85 | 79 | |
| Unbumped | 0 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 5 | 0 | 0 | 1 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_064_C_Ibias-dac.jpg) |

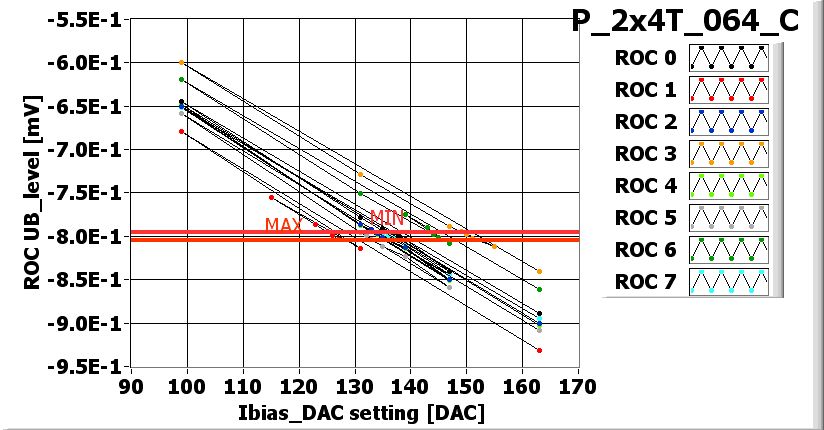

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_064_C_Vana.jpg) |

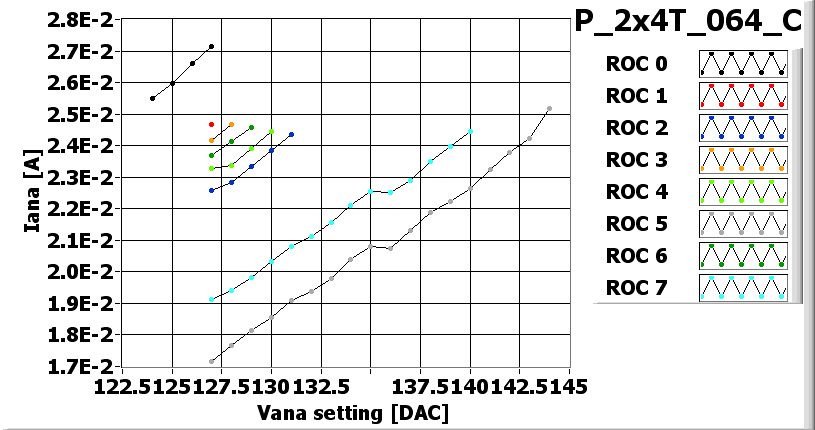

VANA_XML-File |
![[IMAGE] of](P_2x4T_064_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_064_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_064_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_064_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 145 | 120 | 105 | 110 | 120 | 85 | 125 | 90 |
| Vsf | 140 | 140 | 140 | 140 | 135 | 145 | 140 | 145 |
| VoffsetOp | 65 | 70 | 80 | 80 | 80 | 70 | 90 | 75 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 105 | 100 | 105 |

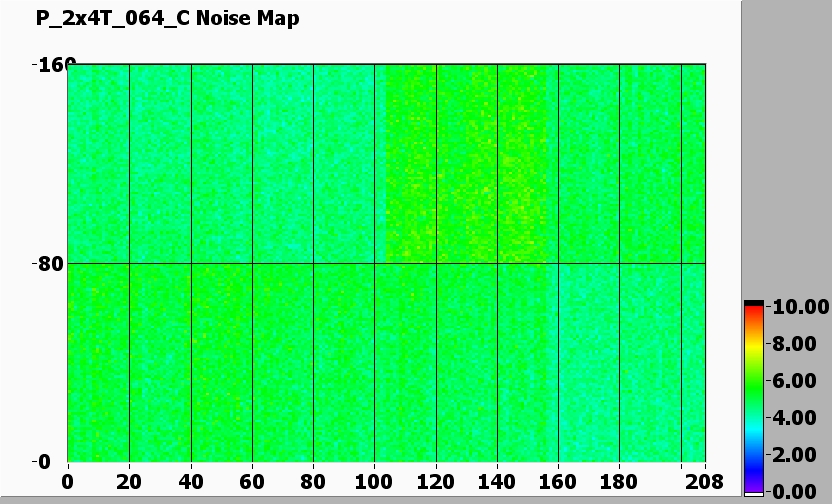

Noise MAP
![[IMAGE] of](P_2x4T_064_C-580-noise.jpg)

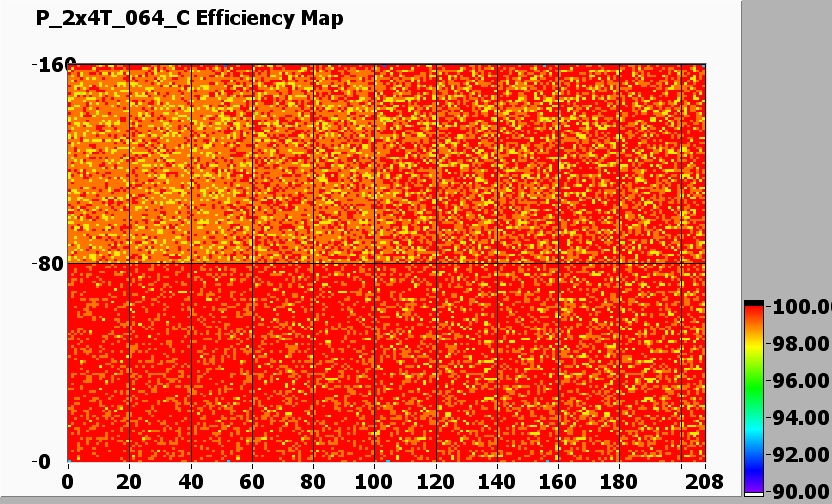

Efficiency MAP
![[IMAGE] of](P_2x4T_064_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
