P_2x4T_064_C

Production testing

Date:4/10/2007

Operator: Gino Bolla

start testing time:10:42 AM

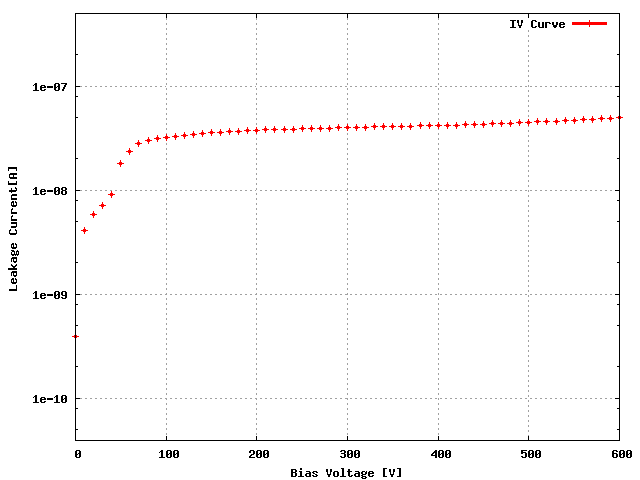

Sensor: S_2x4T_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XH4KFBT26D
ROC1XH4KFBT29D
ROC2XH4KFBT25D
ROC3XH4KFBT20A
ROC4XH4KFBT21A
ROC5XH4KFBT23A
ROC6XH4KFBT22A
ROC7XH4KFBT25A

Depletion Voltage is -48 and suggested operational voltage is -88
Ibias_DAC, Ibias_DAC Data 138 126 134 150 134 132 144 136
Vana, VanaData 124 127 131 128 130 144 129 140
CalDelData and plots7183827097816676
VthrCompData and plots7674778068788579
TestDdata ,TestD Plots05001000
LightData ,Light Plots01001000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe1451201051101208512590
Vsf140140140140135145140145
VoffsetOp6570808080709075
VIbias_PH100100105100100105100105

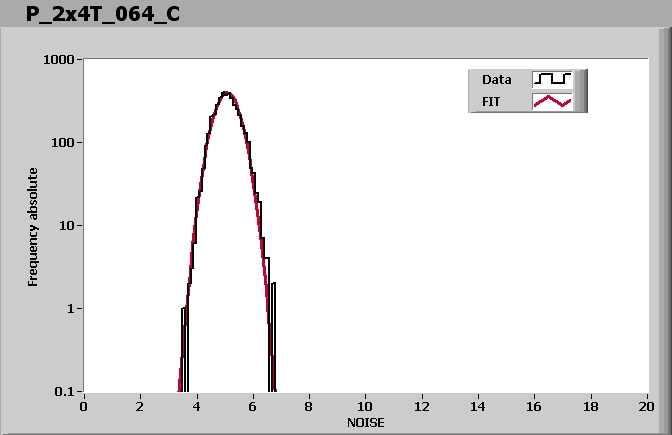

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 5.070272

SIGMA = 0.418273
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.988026

SIGMA = 0.411024
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.897999

SIGMA = 0.417016

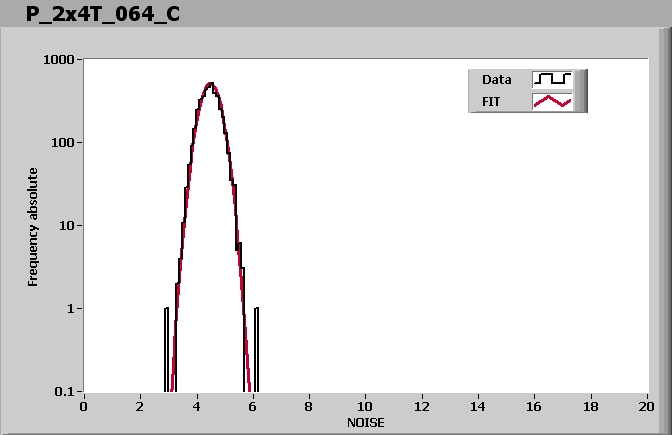

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.474527

SIGMA = 0.333674
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.889585

SIGMA = 0.401699

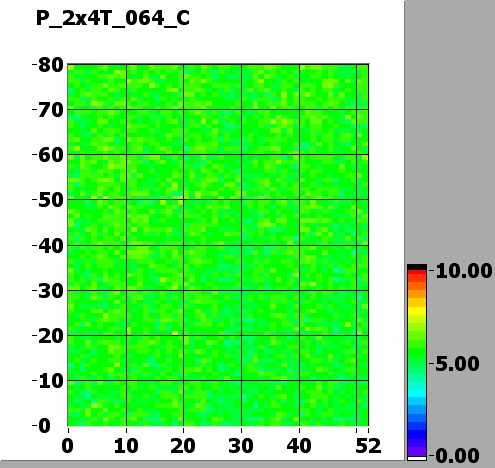

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 5.635141

SIGMA = 0.468440
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.515891

SIGMA = 0.356158

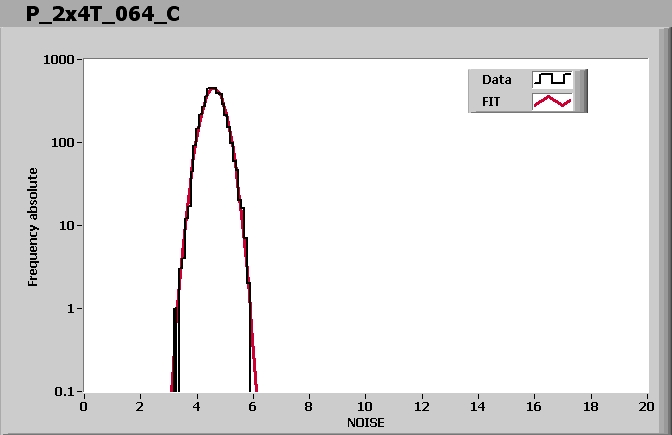

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.602076

SIGMA = 0.370250

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:07 AM
