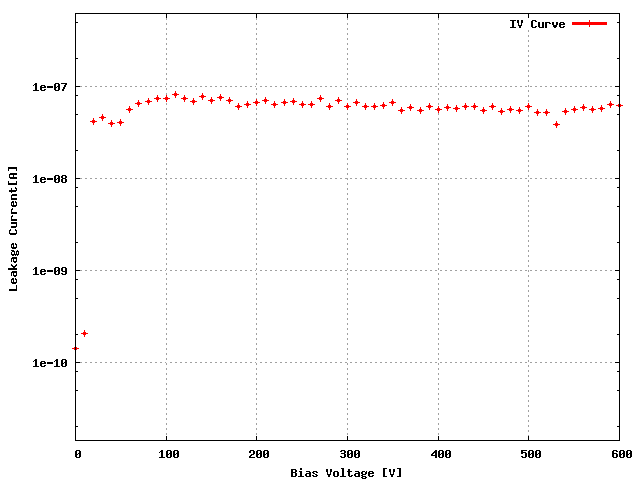

Sensor: S_2x4T_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KZNG1JT	23D
ROC1	KZNG1JT	64B
ROC2	KZNG1JT	23C
ROC3	KZNG1JT	13D
ROC4	KZNG1JT	03A
ROC5	KZNG1JT	64D
ROC6	KZNG1JT	23A
ROC7	KZNG1JT	64A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	178	168	166	162	146	150	158	160
Vana, VanaData	161	143	128	133	140	120	144	124
CalDelData and plots	58	69	78	76	67	88	70	82
VthrCompData and plots	92	91	87	84	89	74	81	75
TestDdata ,TestD Plots	0	1	0	2	2	0	0	0
LightData ,Light Plots	0	1	0	3	2	0	1	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.915879 SIGMA = 0.324157

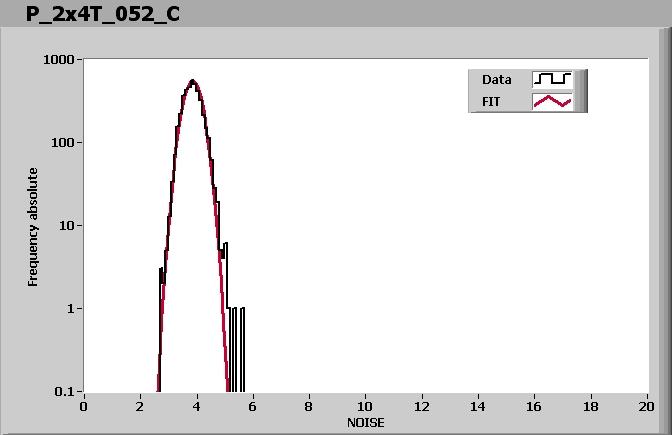

ROC1 NOISE			MEAN = 3.846492 SIGMA = 0.300239
ROC2 NOISE			MEAN = 4.100941 SIGMA = 0.343458

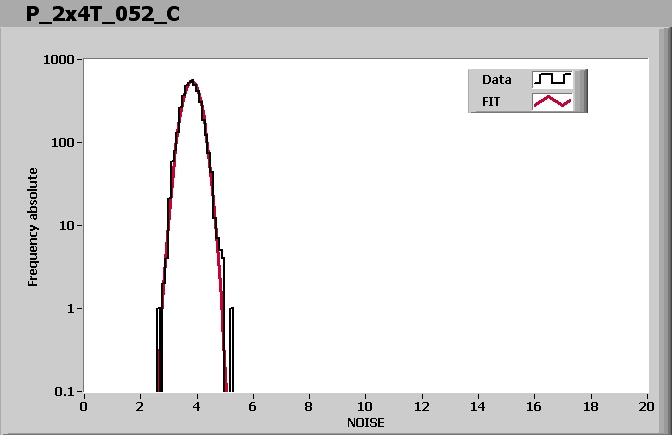

ROC3 NOISE			MEAN = 3.820031 SIGMA = 0.296128
ROC4 NOISE			MEAN = 4.305679 SIGMA = 0.336019
ROC5 NOISE			MEAN = 3.976024 SIGMA = 0.318878

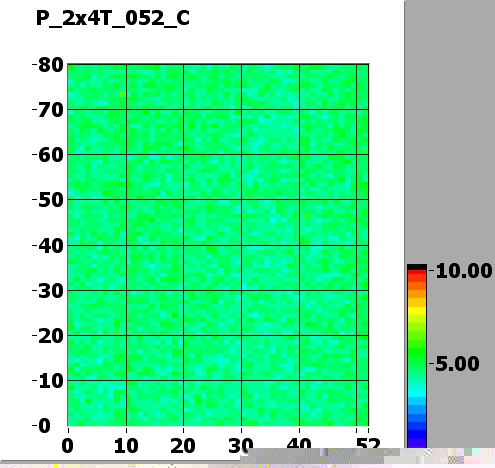

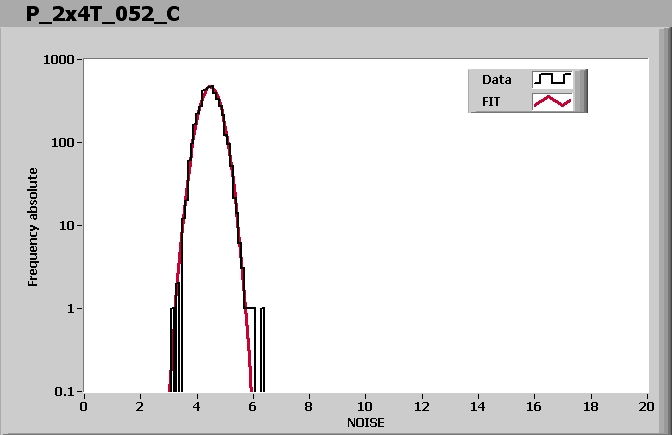

ROC6 NOISE			MEAN = 4.475616 SIGMA = 0.354984
ROC7 NOISE			MEAN = 4.202533 SIGMA = 0.333953

Comment (if any):

End testing time: 12:03 PM
