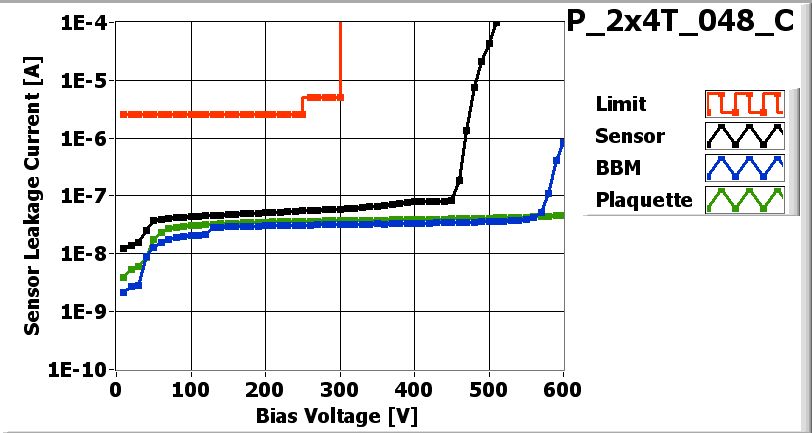

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_048_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_048-2x4T |
| VHDI | 2x4_470 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 48B |
| ROC1 | XG4KFCT | 48A |
| ROC2 | XG4KFCT | 47A |
| ROC3 | XG4KFCT | 46B |
| ROC4 | XG4KFCT | 44A |
| ROC5 | XG4KFCT | 44B |
| ROC6 | XG4KFCT | 45A |
| ROC7 | XG4KFCT | 45B |
Inspected by Arndt Kirk on date 2/22/2007
| LR_dev | 0.023 |
| LL_dev | 0.046 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. ROC3 chn 34,35 required multiple attempts to bond to VHDI pads. No other wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/22/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/26/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 2/26/2007 by Arndt Kirk
P_2x4T_048_Con 2/28/2007 10:53 AM
P_2x4T_048_Con 2/28/2007 10:53 AM
PLAQUETTE TESTED on 2007-02-28 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 134 | 138 | 148 | 142 | 124 | 128 | 126 | 132 | |
| Vana | 141 | 127 | 139 | 134 | 121 | 98 | 146 | 131 | |
| Cal_Del | 76 | 89 | 67 | 82 | 85 | 99 | 95 | 68 | |
| Vthrs_Comp | 83 | 88 | 71 | 68 | 69 | 62 | 79 | 86 | |
| Unbumped | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_048_C_Ibias-dac.jpg) |

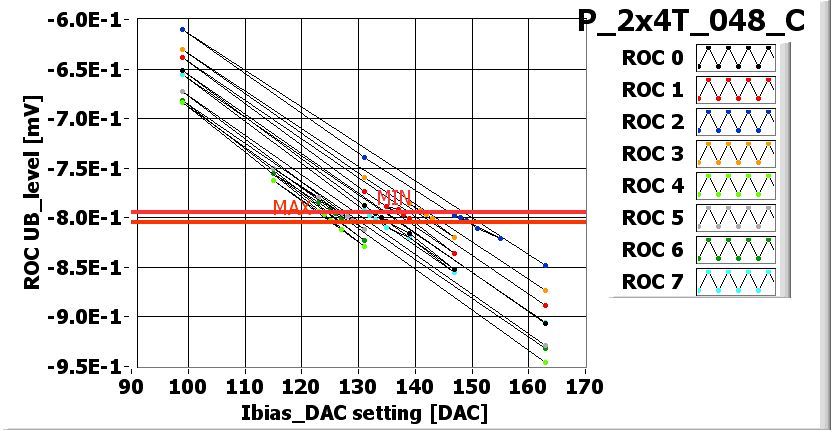

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_048_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_048_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_048_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_048_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_048_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 120 | 95 | 120 | 120 | 170 | 100 | 130 |
| Vsf | 140 | 140 | 140 | 140 | 135 | 125 | 140 | 140 |
| VoffsetOp | 85 | 80 | 95 | 70 | 45 | 60 | 80 | 90 |
| VIbias_PH | 105 | 105 | 100 | 105 | 105 | 100 | 100 | 100 |

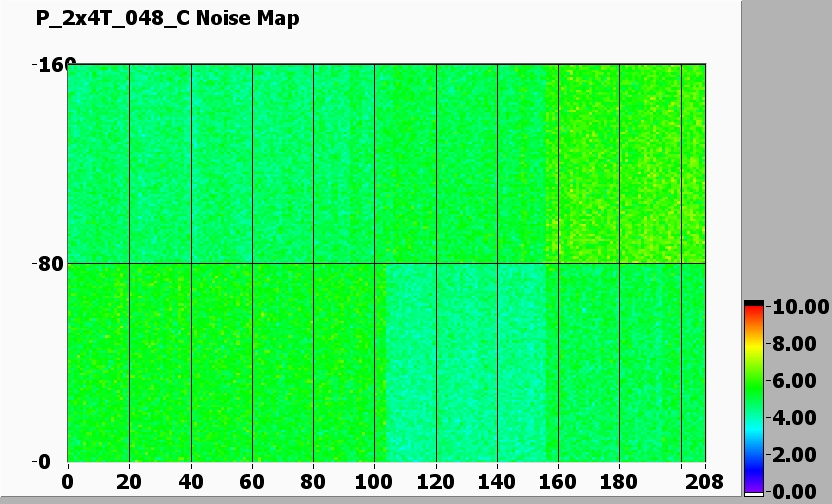

Noise MAP
![[IMAGE] of](P_2x4T_048_C-580-noise.jpg)

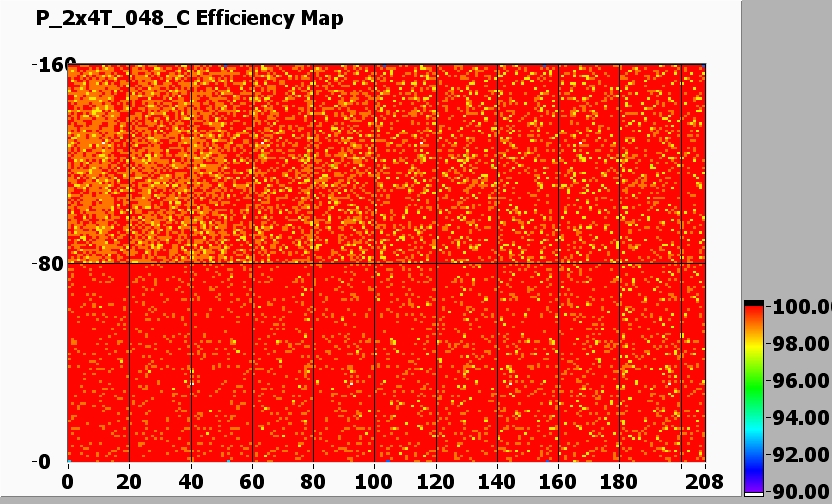

Efficiency MAP
![[IMAGE] of](P_2x4T_048_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
