Sensor: S_2x4T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XG4KFCT	48B
ROC1	XG4KFCT	48A
ROC2	XG4KFCT	47A
ROC3	XG4KFCT	46B
ROC4	XG4KFCT	44A
ROC5	XG4KFCT	44B
ROC6	XG4KFCT	45A
ROC7	XG4KFCT	45B

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	134	138	148	142	124	128	126	132
Vana, VanaData	141	127	139	134	121	98	146	131
CalDelData and plots	76	89	67	82	85	99	95	68
VthrCompData and plots	83	88	71	68	69	62	79	86
TestDdata ,TestD Plots	0	0	0	0	0	0	0	1
LightData ,Light Plots	2	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 5.390418 SIGMA = 0.417669

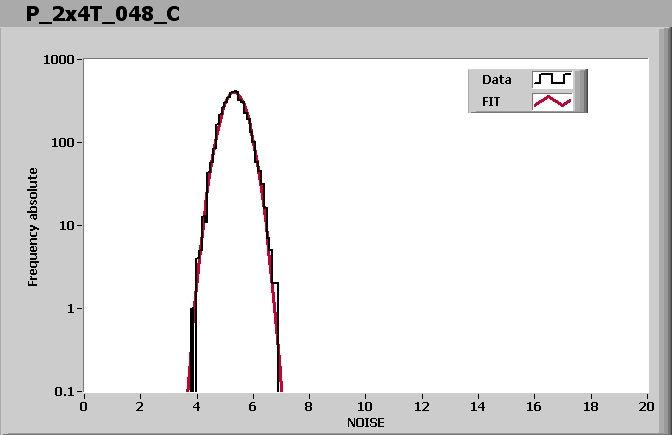

ROC1 NOISE			MEAN = 5.332906 SIGMA = 0.410197
ROC2 NOISE			MEAN = 4.364528 SIGMA = 0.346058
ROC3 NOISE			MEAN = 4.923581 SIGMA = 0.394747

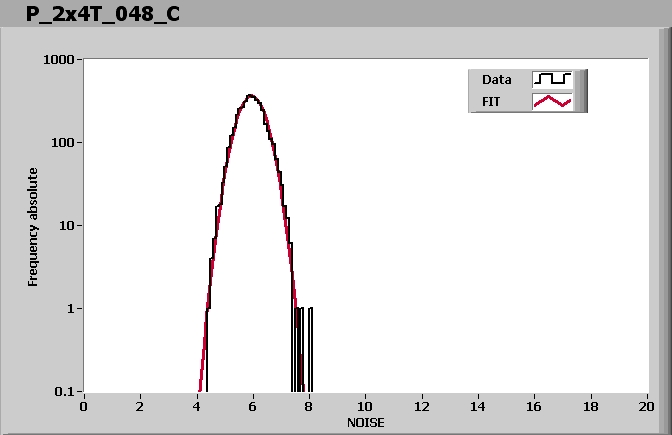

ROC4 NOISE			MEAN = 5.941930 SIGMA = 0.455582
ROC5 NOISE			MEAN = 5.026327 SIGMA = 0.408386
ROC6 NOISE			MEAN = 4.717521 SIGMA = 0.382396
ROC7 NOISE			MEAN = 4.679075 SIGMA = 0.353236

Comment (if any): Good.

End testing time: 11:13 AM
