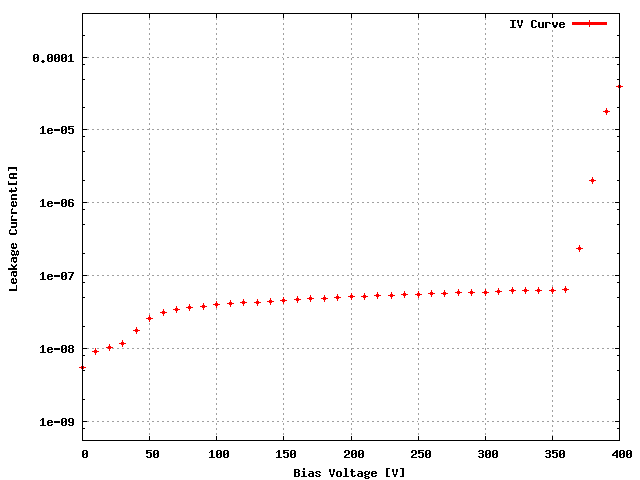

Sensor: S_2x4T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 21A |
| ROC1 | XF4K3JT | 30C |
| ROC2 | XF4K3JT | 26A |
| ROC3 | XF4K3JT | 20A |
| ROC4 | XF4K3JT | 23A |
| ROC5 | XF4K3JT | 05D |
| ROC6 | XF4K3JT | 32D |
| ROC7 | XF4K3JT | 20B |
| Ibias_DAC, Ibias_DAC Data | 129 | 133 | 156 | 131 | 130 | 135 | 135 | 132 |
| Vana, VanaData | 130 | 115 | 128 | 118 | 132 | 133 | 127 | 133 |
| CalDelData and plots | 97 | 74 | 99 | 75 | 103 | 90 | 92 | 90 |
| VthrCompData and plots | 76 | 70 | 65 | 71 | 64 | 72 | 74 | 71 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 185 | 30 | 1 | 1 | 102 | 32 | 2 |
| LightData ,Light Plots | 22 | 534 | 453 | 7 | 1 | 703 | 553 | 3 |
| Pass/Fail TestD | GOOD | BAD | GOOD | GOOD | GOOD | BAD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | BAD | BAD | GOOD | GOOD | BAD | BAD | GOOD |
Comment (if any): still many BAD pixel
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 12:22 PM
