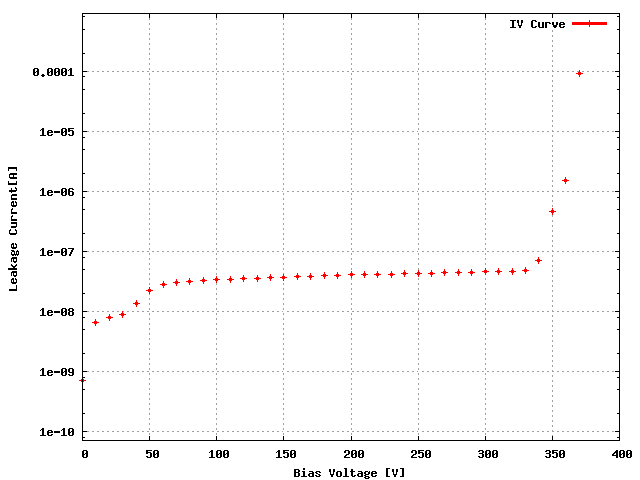

Sensor: S_2x4T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 21A |
| ROC1 | XF4K3JT | 30C |
| ROC2 | XF4K3JT | 26A |
| ROC3 | XF4K3JT | 20A |
| ROC4 | XF4K3JT | 23A |
| ROC5 | XF4K3JT | 05D |
| ROC6 | XF4K3JT | 32D |
| ROC7 | XF4K3JT | 20B |
| Ibias_DAC, Ibias_DAC Data | 129 | 133 | 156 | 129 | 130 | 133 | 135 | 131 |
| Vana, VanaData | 130 | 115 | 129 | 118 | 132 | 133 | 127 | 133 |
| CalDelData and plots | 98 | 74 | 99 | 75 | 103 | 90 | 92 | 91 |
| VthrCompData and plots | 76 | 69 | 66 | 71 | 64 | 72 | 74 | 70 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 1 | 205 | 40 | 1 | 1 | 112 | 36 | 2 |
| LightData ,Light Plots | 16 | 542 | 457 | 8 | 1 | 708 | 553 | 3 |
| Pass/Fail TestD | GOOD | BAD | GOOD | GOOD | GOOD | BAD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | BAD | BAD | GOOD | GOOD | BAD | BAD | GOOD |
Comment (if any): Done. MANY MANY disconnected channels
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:29 AM
