Parts committed by Bolla Gino on date 2/15/2007
| Part | ID |
|---|---|
| BBM | BBM_038-2x4T |
| VHDI | 2x4_456 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 24D |
| ROC1 | W33_XC4K5LT | 24C |
| ROC2 | W33_XC4K5LT | 24B |
| ROC3 | W33_XC4K5LT | 23D |
| ROC4 | W33_XC4K5LT | 28A |
| ROC5 | W33_XC4K5LT | 28B |
| ROC6 | W33_XC4K5LT | 28D |
| ROC7 | W33_XC4K5LT | 29A |
Inspected by Arndt Kirk on date 2/28/2007
| Picture | Comment |
|---|---|

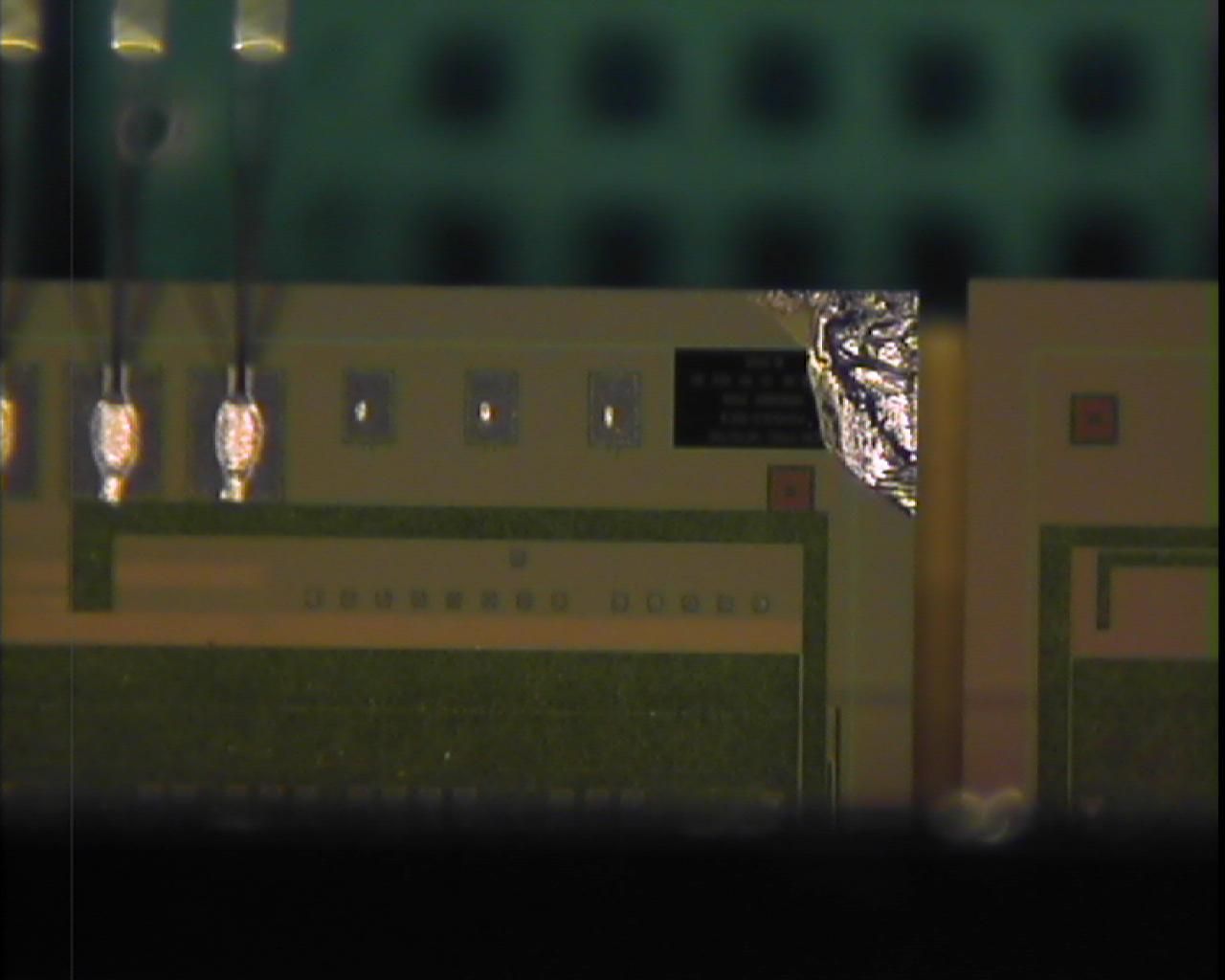

| Chip out of corner of ROC2 nearest channel 1 (noticed during post-wirebonding inspection). |
Inspected by Lockwood Gale on date 2/28/2007
| LR_dev | 0.060 |
| LL_dev | 0.065 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 2/28/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/5/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/5/2007 by Ozhan Koybasi
P_2x4T_038_Aon 3/6/2007 11:07 AM
P_2x4T_038_Aon 3/6/2007 11:07 AM
PLAQUETTE TESTED on 2007-03-06 by Joseph Clampitt

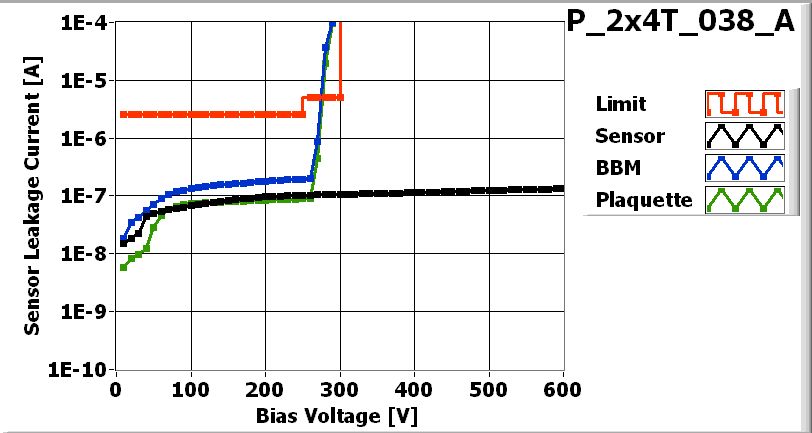

![[IMAGE] of](P_2x4T_038_A_IV.jpg) |
|
|||

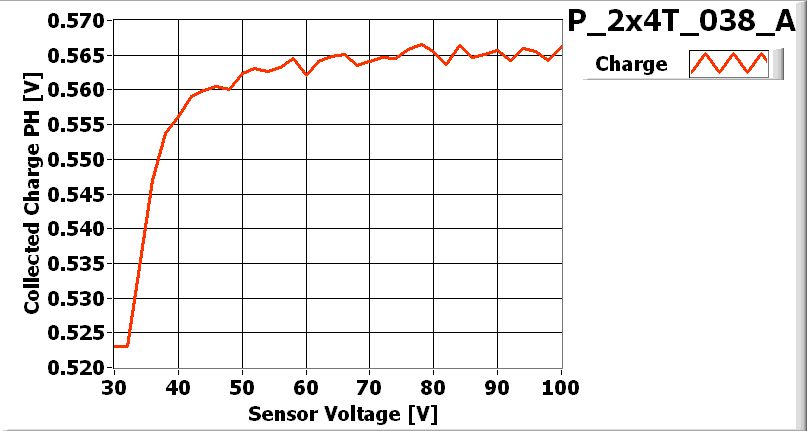

![[IMAGE] of](P_2x4T_038_A_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 142 | 132 | 126 | 130 | 128 | 144 | 134 | 138 | |
| Vana | 154 | 127 | 138 | 130 | 134 | 133 | 140 | 149 | |
| Cal_Del | 78 | 83 | 75 | 80 | 85 | 76 | 83 | 79 | |
| Vthrs_Comp | 94 | 76 | 80 | 72 | 77 | 80 | 86 | 93 | |
| Unbumped | 196 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 72 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 268 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_038_A_Ibias-dac.jpg) |

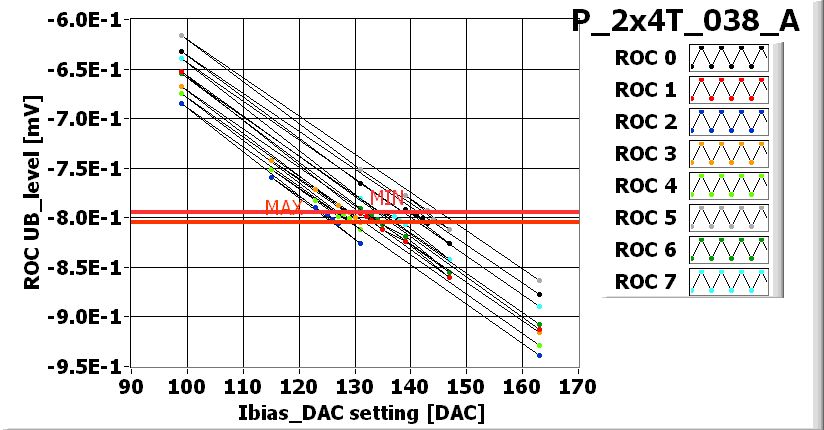

I_BIAS_DAC_XML-File |

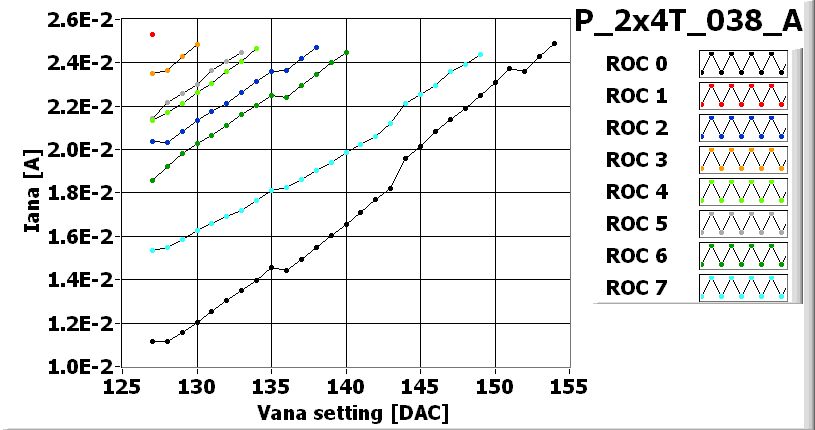

![[IMAGE] of](P_2x4T_038_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_038_ADead-PixelAlivetest.jpg){kind=tracking} |

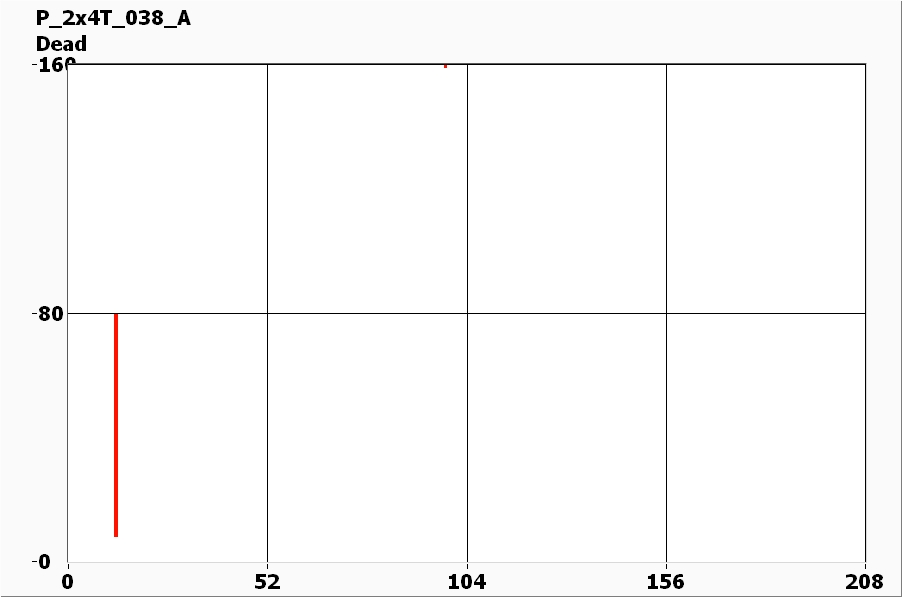

DEAD_XML-File |
![[IMAGE] of](P_2x4T_038_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_038_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_038_Ano-bump-light.jpg) |

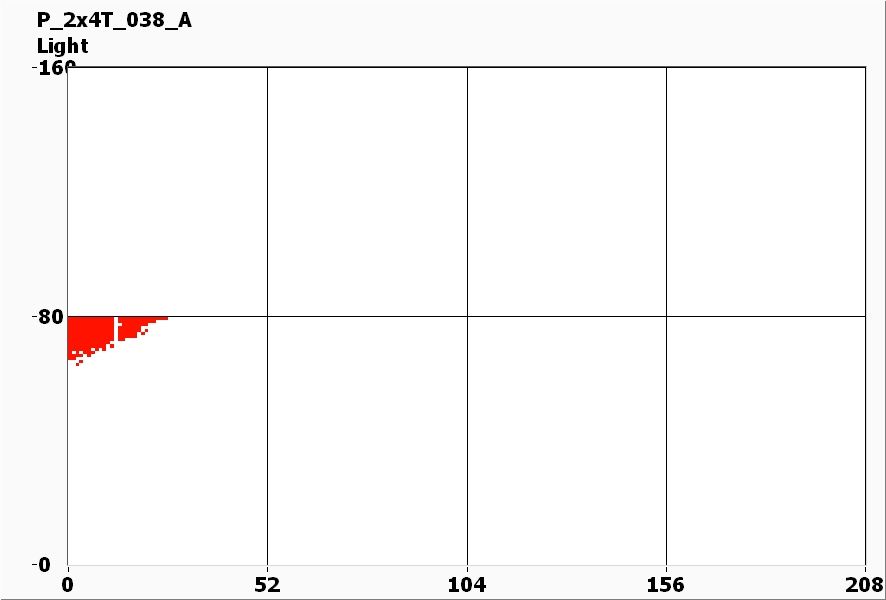

LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 125 | 115 | 115 | 120 | 120 | 105 | 100 |
| Vsf | 145 | 140 | 145 | 140 | 140 | 140 | 140 | 145 |
| VoffsetOp | 110 | 70 | 75 | 90 | 70 | 75 | 80 | 110 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 105 | 100 | 105 |

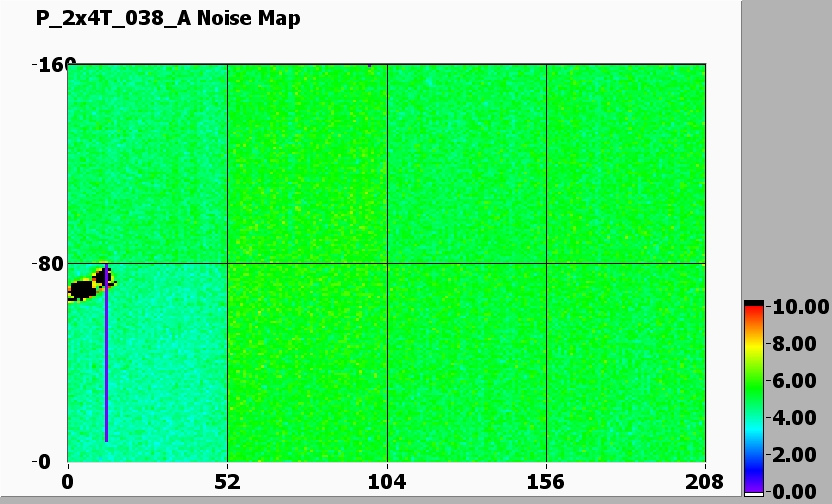

Noise MAP
![[IMAGE] of](P_2x4T_038_A-270-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_038_A-270-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
