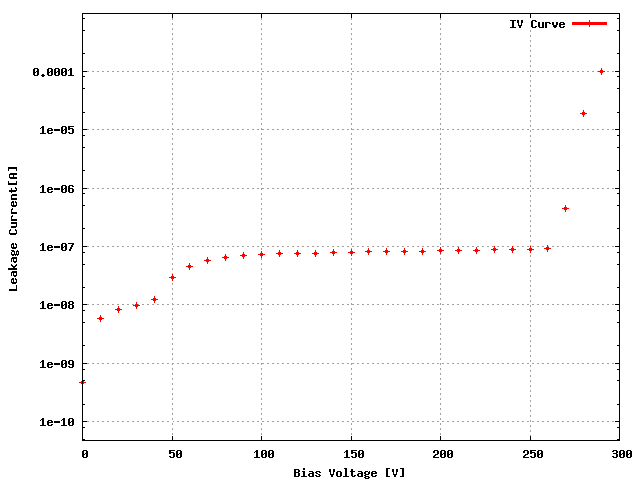

Sensor: S_2x4T_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W33_XC4K5LT	24D
ROC1	W33_XC4K5LT	24C
ROC2	W33_XC4K5LT	24B
ROC3	W33_XC4K5LT	23D
ROC4	W33_XC4K5LT	28A
ROC5	W33_XC4K5LT	28B
ROC6	W33_XC4K5LT	28D
ROC7	W33_XC4K5LT	29A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	142	132	126	130	128	144	134	138
Vana, VanaData	154	127	138	130	134	133	140	149
CalDelData and plots	78	83	75	80	85	76	83	79
VthrCompData and plots	94	76	80	72	77	80	86	93
TestDdata ,TestD Plots	255	0	0	0	0	0	1	0
LightData ,Light Plots	196	0	0	0	0	0	0	0
Pass/Fail TestD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

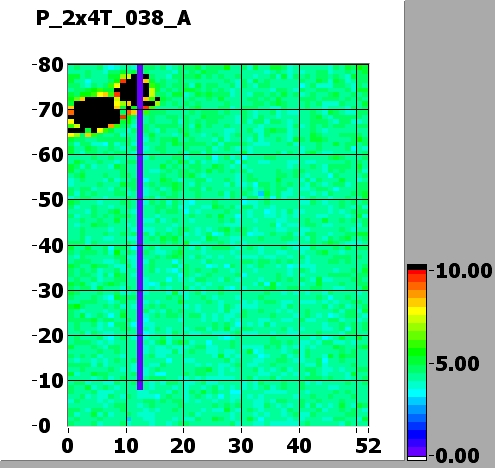

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

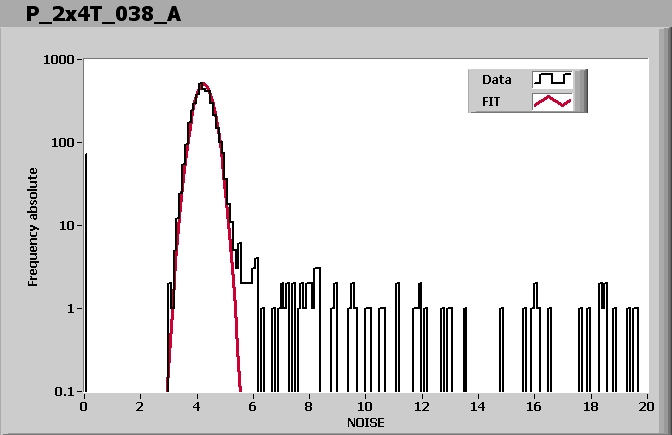

ROC0 NOISE			MEAN = 4.240371 SIGMA = 0.315579

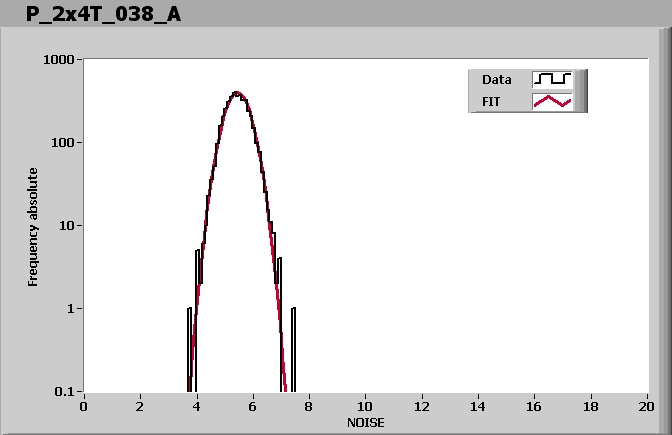

ROC1 NOISE			MEAN = 5.442560 SIGMA = 0.420148
ROC2 NOISE			MEAN = 5.166047 SIGMA = 0.411453
ROC3 NOISE			MEAN = 5.127012 SIGMA = 0.428747

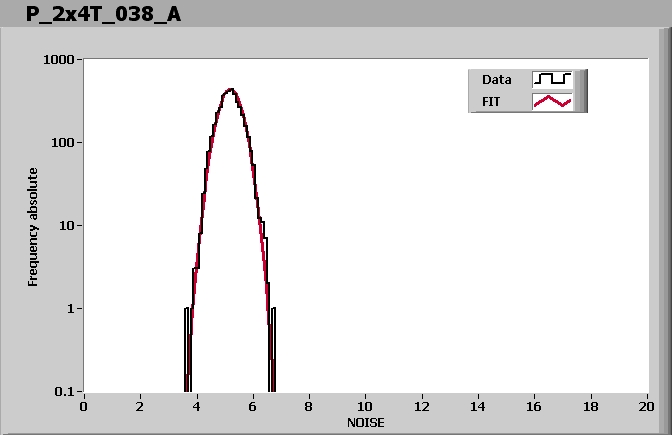

ROC4 NOISE			MEAN = 5.186485 SIGMA = 0.382433
ROC5 NOISE			MEAN = 5.025295 SIGMA = 0.366654
ROC6 NOISE			MEAN = 5.421741 SIGMA = 0.425761
ROC7 NOISE			MEAN = 4.776722 SIGMA = 0.374808

Comment (if any): Many unbumped and dead pixels on ROC 0.

End testing time: 11:27 AM
