P_2x4T_036_C

Parts committed by Bolla Gino on date 1/3/2007

PartID
BBMBBM_036-2x4T
VHDI2x4_394

ROCROC waferLabel
ROC0XE4KFET14A
ROC1XE4KFET05C
ROC2XE4KFET15A
ROC3XE4KFET16D
ROC4XE4KFET12C
ROC5XE4KFET17D
ROC6XE4KFET14C
ROC7XE4KFET06A

Inspected by Arndt Kirk on date 1/5/2007
LR_dev0.083
LL_dev0.003
FINAL COMMENT by Arndt KirkNo assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 1/5/2007 by Arndt Kirk

P_2x4T_036_Con 1/5/2007 3:19 PM P_2x4T_036_C-1on 1/8/2007 1:52 PM P_2x4T_036_C-2on 1/8/2007 2:04 PM P_2x4T_036_C-3on 1/8/2007 2:09 PM P_2x4T_036_C-4on 1/8/2007 3:39 PM P_2x4T_036_C-5on 1/8/2007 3:43 PM P_2x4T_036_C-6on 1/8/2007 3:44 PM P_2x4T_036_C-7on 1/9/2007 10:27 AM

P_2x4T_036_C-8on 1/17/2007 8:55 AM

P_2x4T_036_C-8on 1/17/2007 8:55 AM

PLAQUETTE TESTED on 2007-01-17 by Gino Bolla

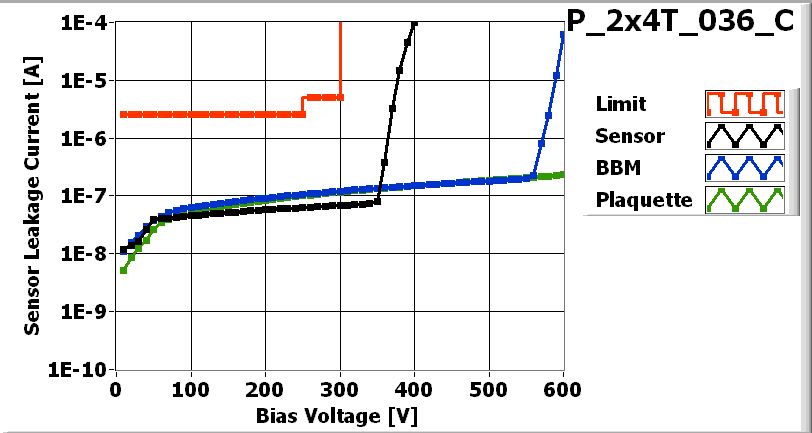

[IMAGE] of
IV_XML-File
Maximum Voltage 600 V

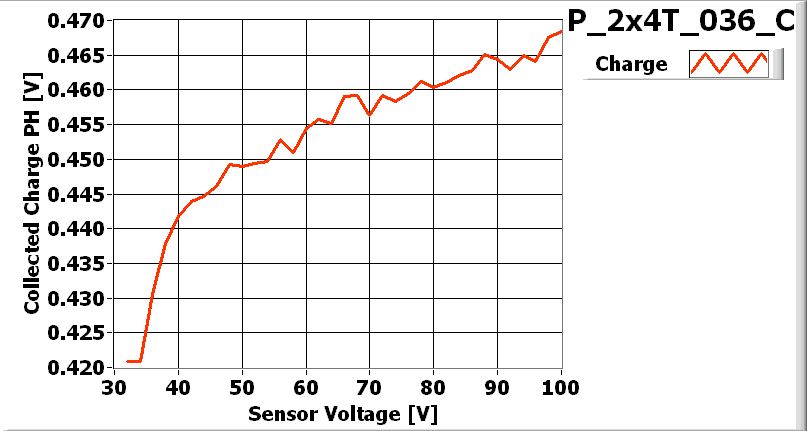

[IMAGE] of
LASER_XML-File
Depletion Voltage 50 V
Operational Voltage 90 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7
Ibias_DAC138132150138124128136132
Vana141135140120129138138140
Cal_Del7891738885867383
Vthrs_Comp7970856376727683
Unbumped101210010
Dead00000000
Noisy00000001
Undecoded00000000
Total BAD101210011

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

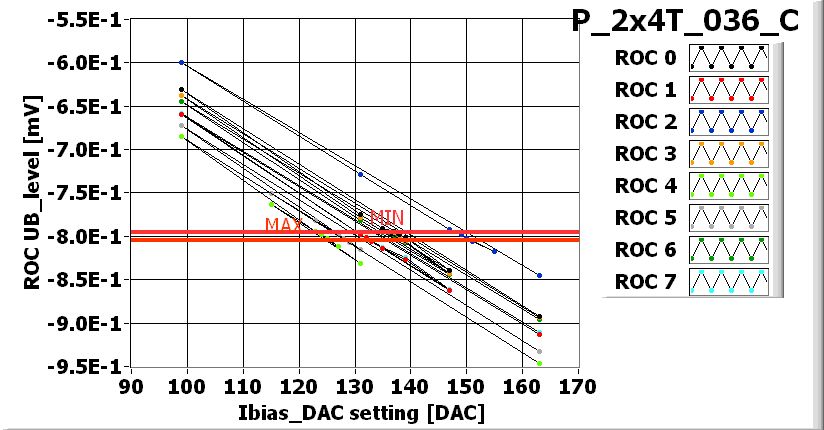

[IMAGE] of I_BIAS_DAC_XML-File

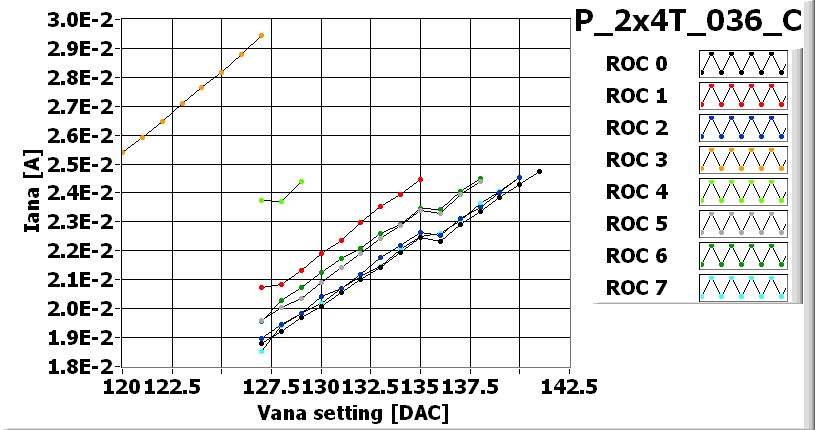

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 1/19/2007 by Arndt Kirk

P_2x4T_036_C-9on 1/19/2007 2:11 PM

P_2x4T_036_C-9on 1/19/2007 2:11 PM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/03/31/3
ROC10/00/00/00/00/0
ROC20/00/00/00/012/10
ROC30/00/00/02/01/0
ROC40/00/00/00/00/0
ROC50/00/00/00/00/0
ROC60/00/00/00/11/0
ROC70/01/10/00/00/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-01-24
