![[IMAGE] of](P_2x4T_029_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_029_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_029-2x4T |
| VHDI | 2x4_521 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XI4K3GT | 65B |
| ROC1 | XI4K3GT | 66A |
| ROC2 | XI4K3GT | 66B |
| ROC3 | XI4K3GT | 67A |
| ROC4 | XI4K3GT | 76C |
| ROC5 | XI4K3GT | 74D |
| ROC6 | XI4K3GT | 74C |
| ROC7 | XI4K3GT | 68A |
Inspected by Arndt Kirk on date 2006-08-11
| LR_dev | 0.032 |
| LL_dev | 0.048 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-11 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-14 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 139 | 154 | 167 | 157 | 160 | 153 | 153 | 148 | |
| Vana | 101 | 121 | 129 | 145 | 121 | 131 | 120 | 130 | |
| Cal_Del | 100 | 100 | 97 | 79 | 68 | 75 | 88 | 83 | |
| Vthrs_Comp | 69 | 71 | 73 | 90 | 89 | 77 | 71 | 73 | |
| Unbumped | 2 | 0 | 1 | 2 | 1 | 1 | 1 | 22 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | |
| Total BAD | 3 | 0 | 1 | 3 | 1 | 1 | 1 | 25 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

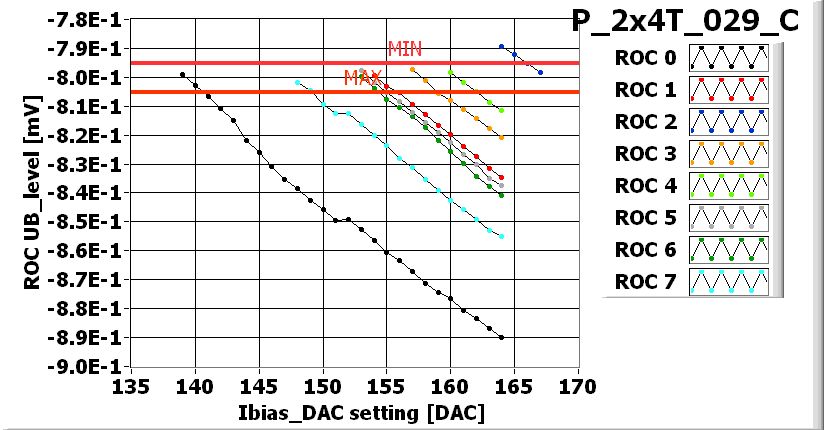

![[IMAGE] of](P_2x4T_029_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

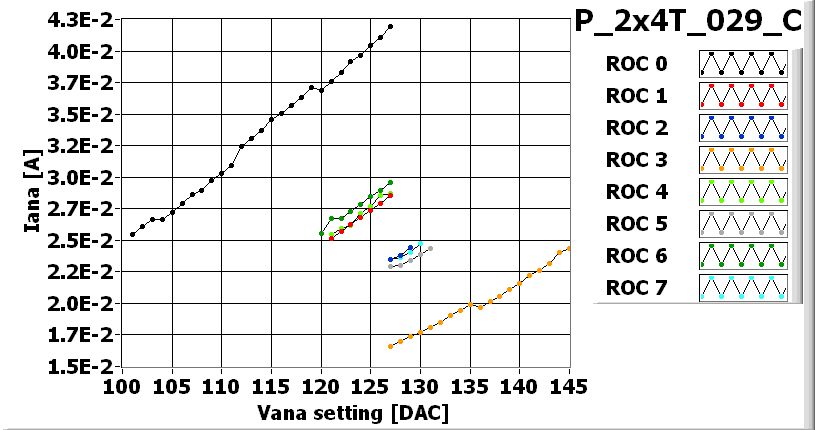

![[IMAGE] of](P_2x4T_029_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_029_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_029_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_029_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_029_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-17
