Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
---|---|---|---|---|

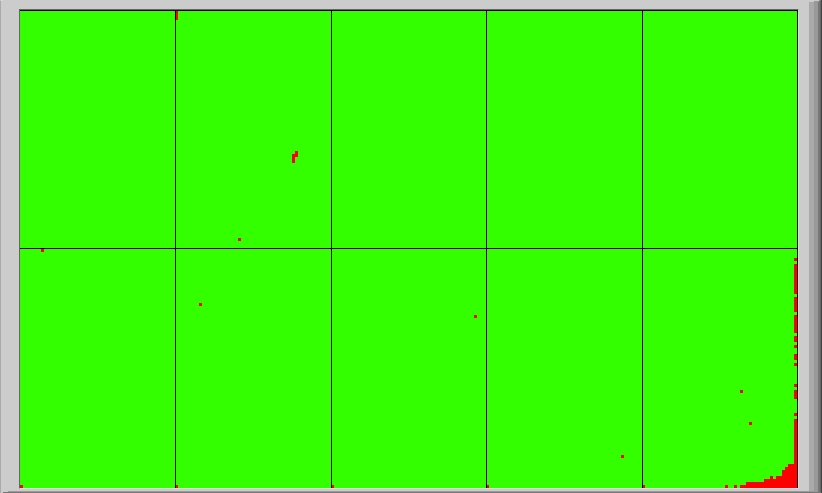

P_2x5_026_C | 3 | |||

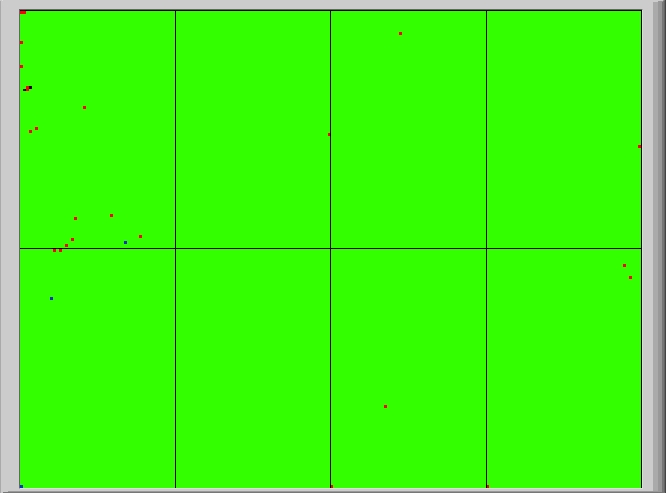

P_2x4T_029_C | 2 | |||

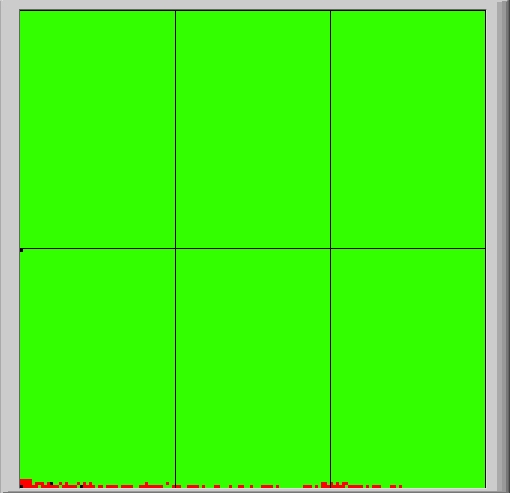

P_2x3T_095_A | 1 |
Panel assembly comments |
---|
24Feb07/Sudhir: This panel was light tested and PTA verified today by Sudhir. 12Mar2007/ME: Max voltage = 360V, not traceable to any plaquette. 24apr07/ME: Breakdown due to outer loop. Upgraded to A-. |
