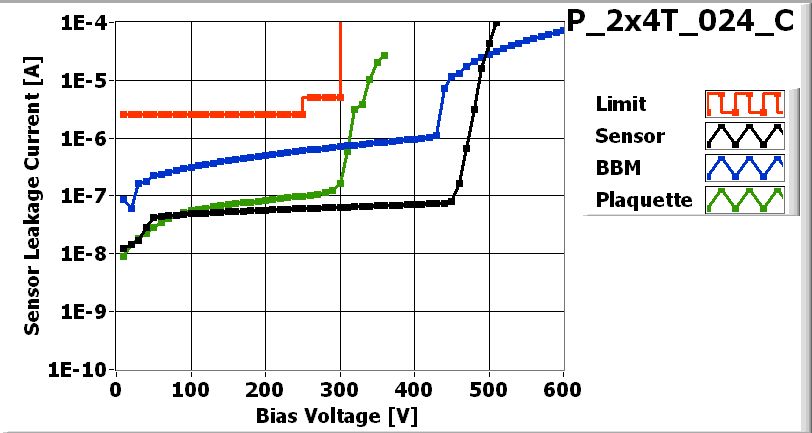

![[IMAGE] of](P_2x4T_024_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 360 V |

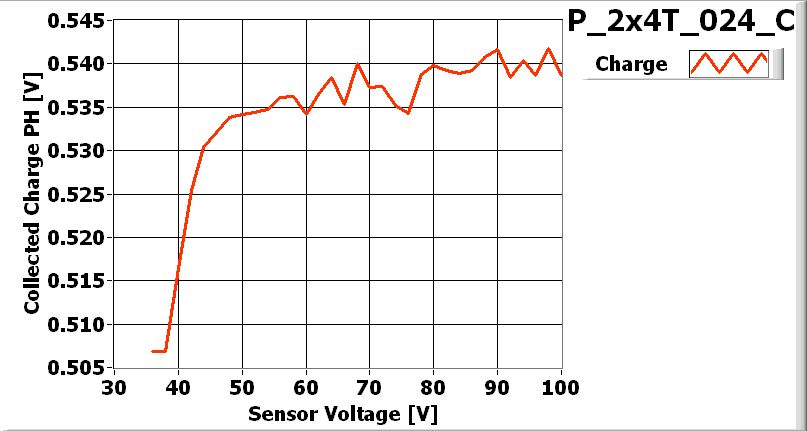

![[IMAGE] of](P_2x4T_024_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/24/2007
| Part | ID |
|---|---|
| BBM | BBM_024-2x4T |
| VHDI | 2x4_573 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 04D |
| ROC1 | DWLQFTT | 21D |
| ROC2 | DWLQFTT | 11D |
| ROC3 | DWLQFTT | 22D |
| ROC4 | DWLQFTT | 11A |
| ROC5 | DWLQFTT | 06A |
| ROC6 | DWLQFTT | 06D |
| ROC7 | DWLQFTT | 06B |
Inspected by Lockwood Gale on date 4/27/2007
| LR_dev | 0.066 |
| LL_dev | 0.061 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 2 ch 35, ROC 1 ch 8, no problems wirebonding. |
PLAQUETTE made READY for ENCAPSULATION on 4/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/1/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/1/2007 by Ozhan Koybasi
P_2x4T_024_Con 5/2/2007 3:12 PM
P_2x4T_024_Con 5/2/2007 3:12 PM
PLAQUETTE TESTED on 2007-05-02 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 130 | 136 | 136 | 140 | 126 | 132 | 144 | 142 | |
| Vana | 145 | 130 | 145 | 134 | 134 | 142 | 144 | 148 | |
| Cal_Del | 85 | 97 | 90 | 100 | 101 | 74 | 85 | 93 | |
| Vthrs_Comp | 83 | 75 | 79 | 85 | 74 | 91 | 90 | 80 | |
| Unbumped | 1 | 0 | 0 | 7 | 1 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 7 | 2 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

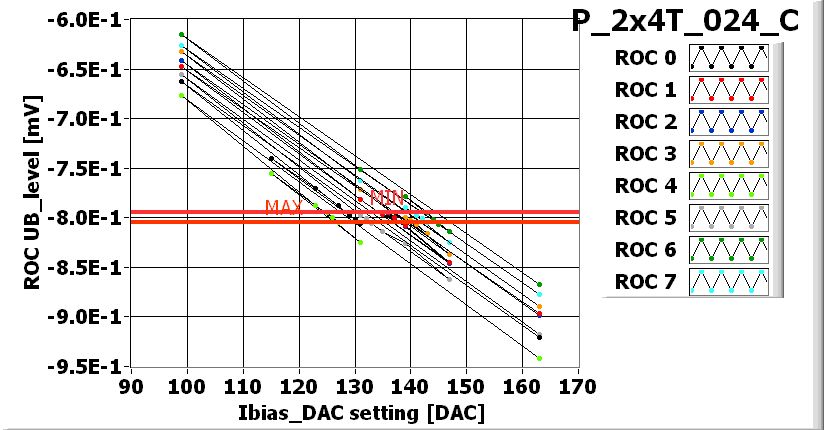

![[IMAGE] of](P_2x4T_024_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

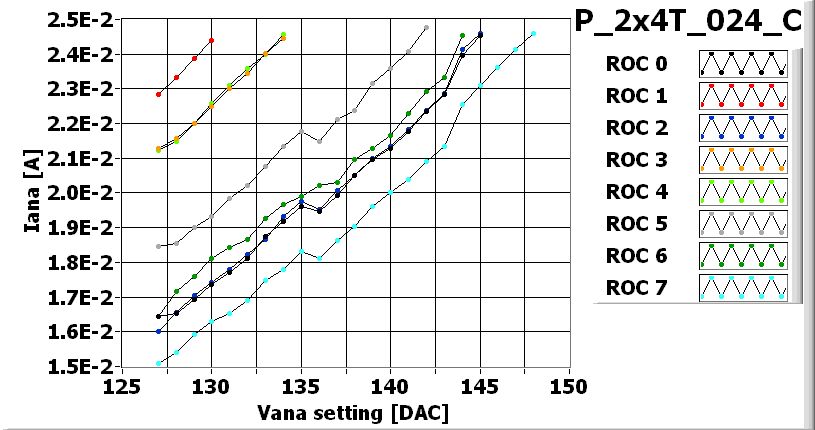

![[IMAGE] of](P_2x4T_024_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_024_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_024_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_024_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_024_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 120 | 95 | 110 | 105 | 100 | 95 | 90 |
| Vsf | 145 | 140 | 150 | 140 | 140 | 145 | 145 | 145 |
| VoffsetOp | 90 | 80 | 105 | 90 | 85 | 105 | 125 | 120 |
| VIbias_PH | 100 | 100 | 95 | 105 | 100 | 95 | 100 | 105 |

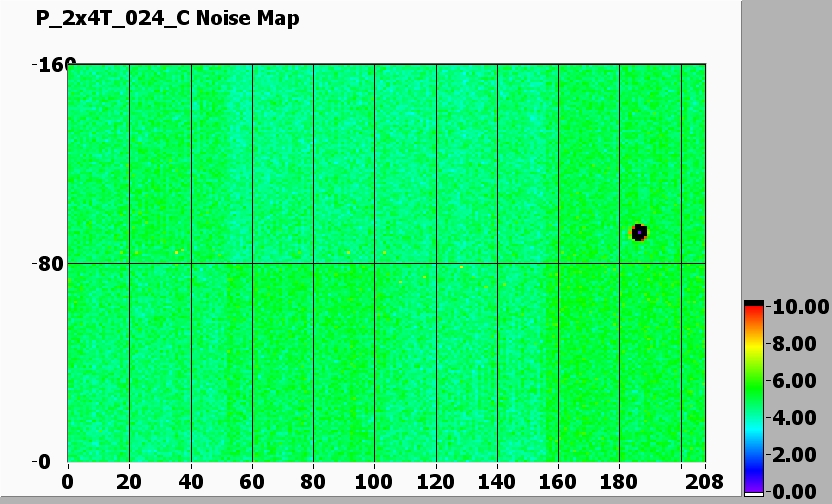

Noise MAP
![[IMAGE] of](P_2x4T_024_C-340-noise.jpg)

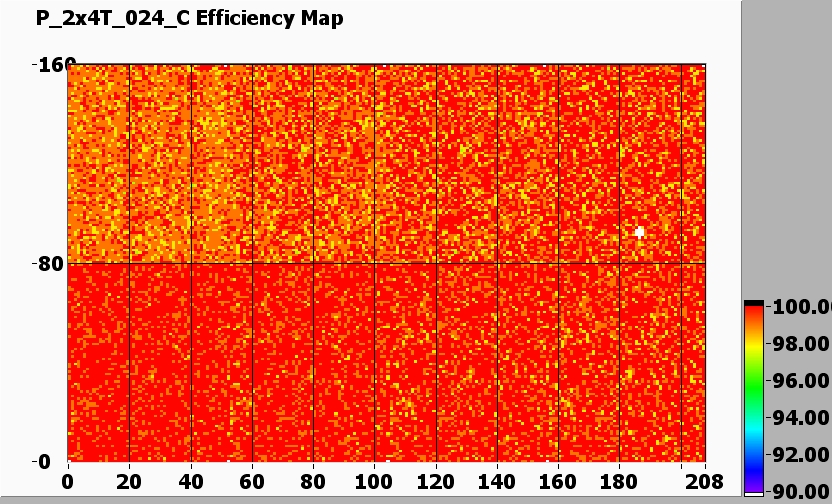

Efficiency MAP
![[IMAGE] of](P_2x4T_024_C-340-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
