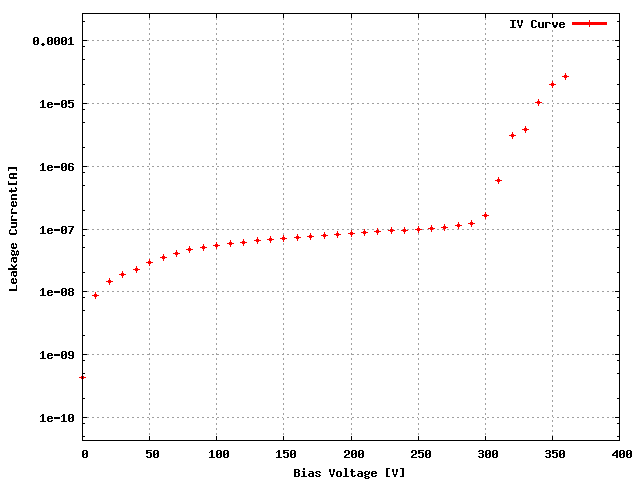

Sensor: S_2x4T_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	DWLQFTT	04D
ROC1	DWLQFTT	21D
ROC2	DWLQFTT	11D
ROC3	DWLQFTT	22D
ROC4	DWLQFTT	11A
ROC5	DWLQFTT	06A
ROC6	DWLQFTT	06D
ROC7	DWLQFTT	06B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	130	136	136	140	126	132	144	142
Vana, VanaData	145	130	145	134	134	142	144	148
CalDelData and plots	85	97	90	100	101	74	85	93
VthrCompData and plots	83	75	79	85	74	91	90	80
TestDdata ,TestD Plots	1	0	0	7	2	0	1	4
LightData ,Light Plots	1	0	0	7	1	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

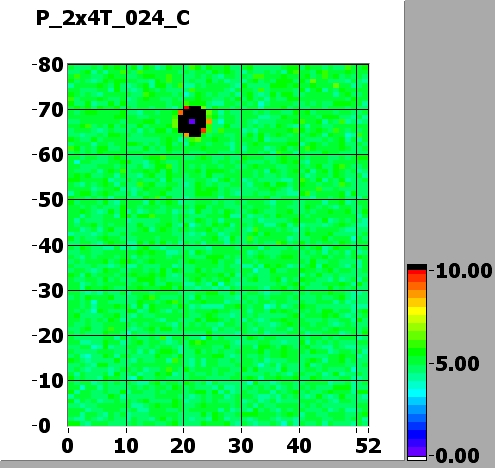

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.637659 SIGMA = 0.360770

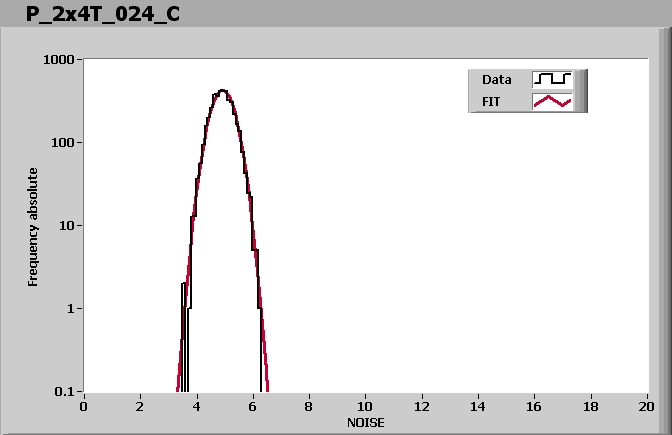

ROC1 NOISE			MEAN = 4.914253 SIGMA = 0.389162
ROC2 NOISE			MEAN = 4.575577 SIGMA = 0.346699
ROC3 NOISE			MEAN = 5.073758 SIGMA = 0.387877

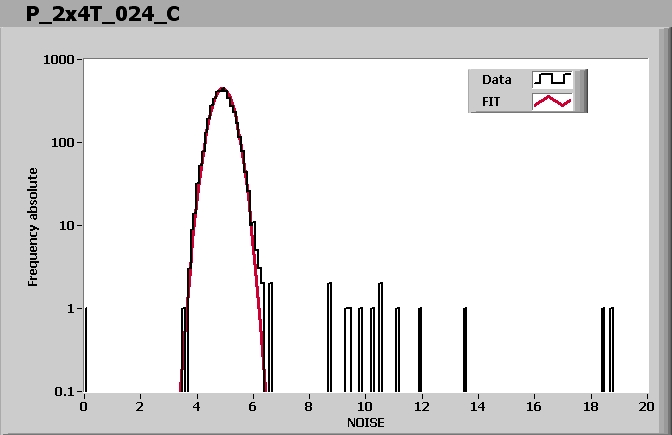

ROC4 NOISE			MEAN = 4.916823 SIGMA = 0.367339
ROC5 NOISE			MEAN = 4.502716 SIGMA = 0.338997

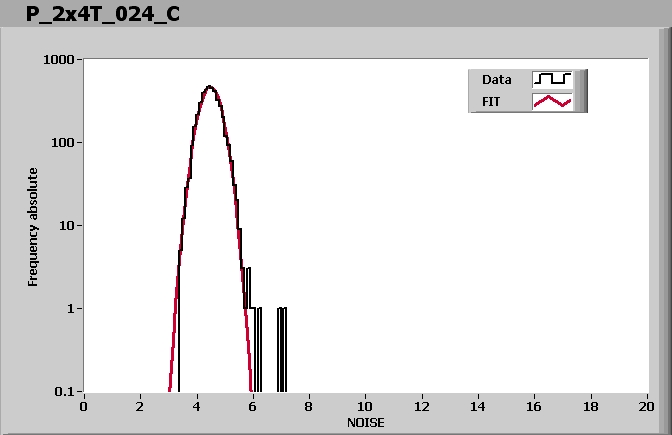

ROC6 NOISE			MEAN = 4.476127 SIGMA = 0.353092

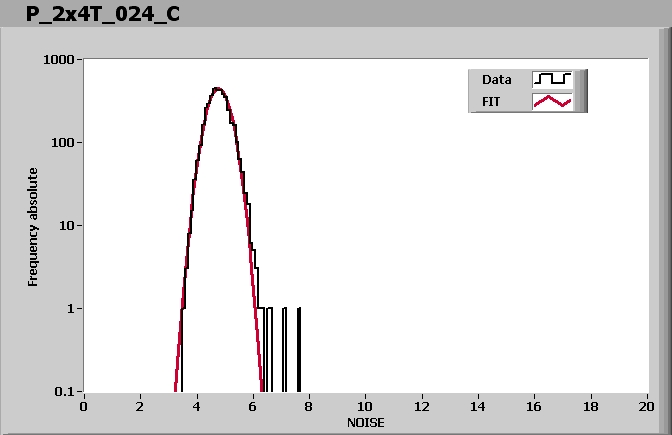

ROC7 NOISE			MEAN = 4.770799 SIGMA = 0.372456

Comment (if any): good

End testing time: 3:34 PM
