P_2x4T_014

P_2x4T_014_C

Parts committed by Bolla Gino on date 2/5/2007

Part	ID
BBM	BBM_014-2x4T
VHDI	2x4_437

ROC ROC wafer Label

ROC0 XE4K3KT 27C

ROC1 XE4K3KT 26D

ROC2 XE4K3KT 26C

ROC3 XE4K3KT 25D

ROC4 XE4K3KT 23C

ROC5 XE4K3KT 24C

ROC6 XE4K3KT 24D

ROC7 XE4K3KT 25C

ROC	ROC wafer	Label
ROC0	XE4K3KT	27C
ROC1	XE4K3KT	26D
ROC2	XE4K3KT	26C
ROC3	XE4K3KT	25D
ROC4	XE4K3KT	23C
ROC5	XE4K3KT	24C
ROC6	XE4K3KT	24D
ROC7	XE4K3KT	25C

Inspected by Lockwood Gale on date 2/9/2007

LR_dev 0.068

LL_dev 0.086

FINAL COMMENT by Lockwood Gale No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale

P_2x4T_014_Con 2/9/2007 2:13 PM

PLAQUETTE TESTED on 2007-02-09 by Isaac Childres

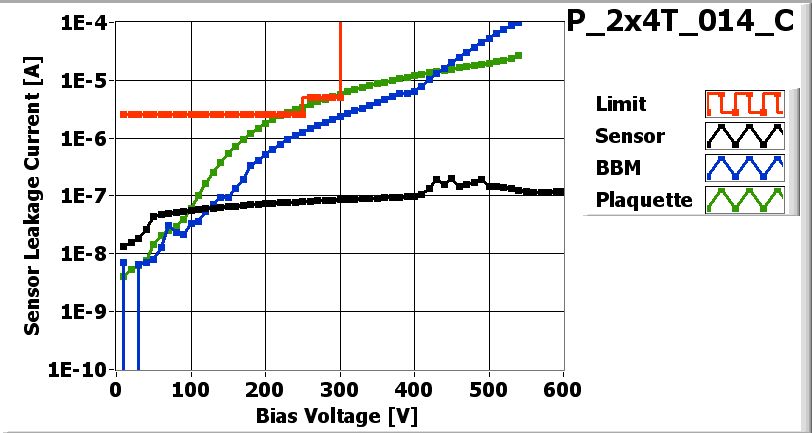

IV_XML-File

Maximum Voltage 540 V

LASER_XML-File

Depletion Voltage 48 V

Operational Voltage 88 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	150	132	128	132	132	126	130	130
Vana	126	133	127	127	117	138	135	130
Cal_Del	90	79	79	89	77	88	98	92
Vthrs_Comp	71	75	71	68	76	76	67	76
Unbumped	1	0	0	0	0	0	0	0
Dead	1	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	4	0	0
Total BAD	2	0	0	0	0	4	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

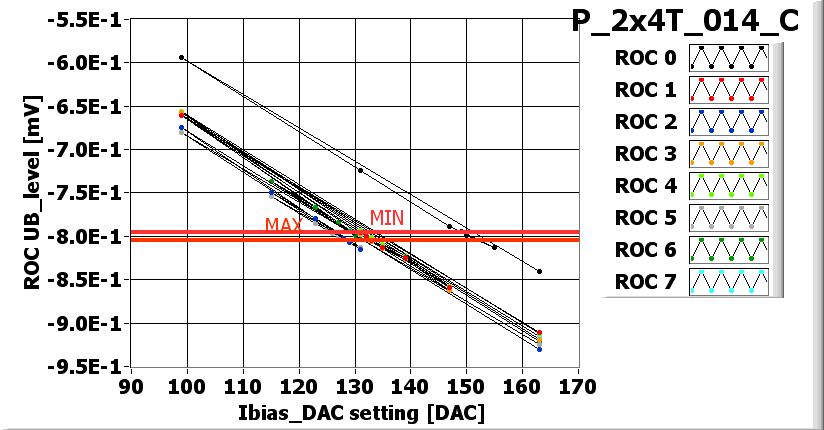

	I_BIAS_DAC_XML-File

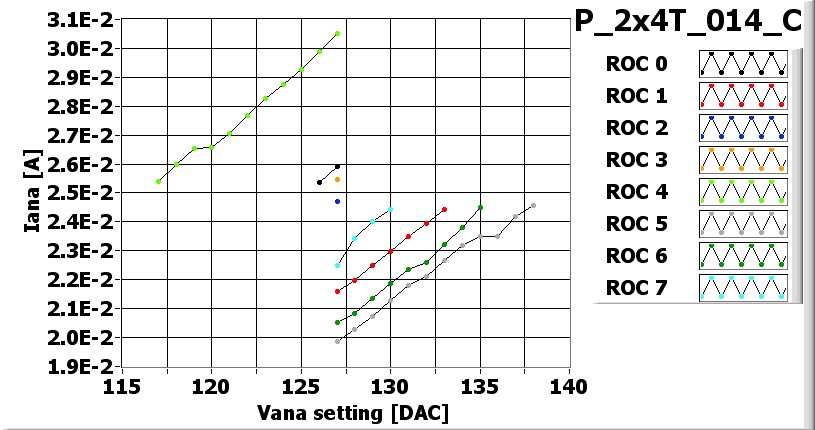

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

Noise MAP

Efficiency MAP

ROC0 NOISE			MEAN = 4.983450 SIGMA = 0.392088
ROC1 NOISE			MEAN = 4.840634 SIGMA = 0.403290
ROC2 NOISE			MEAN = 4.485577 SIGMA = 0.353365
ROC3 NOISE			MEAN = 4.633396 SIGMA = 0.356063
ROC4 NOISE			MEAN = 4.208270 SIGMA = 0.317836
ROC5 NOISE			MEAN = 4.805614 SIGMA = 0.362132
ROC6 NOISE			MEAN = 5.392822 SIGMA = 0.443454
ROC7 NOISE			MEAN = 5.036388 SIGMA = 0.394343

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/20/2007 by Arndt Kirk

P_2x4T_014_C-1on 2/20/2007 3:08 PM

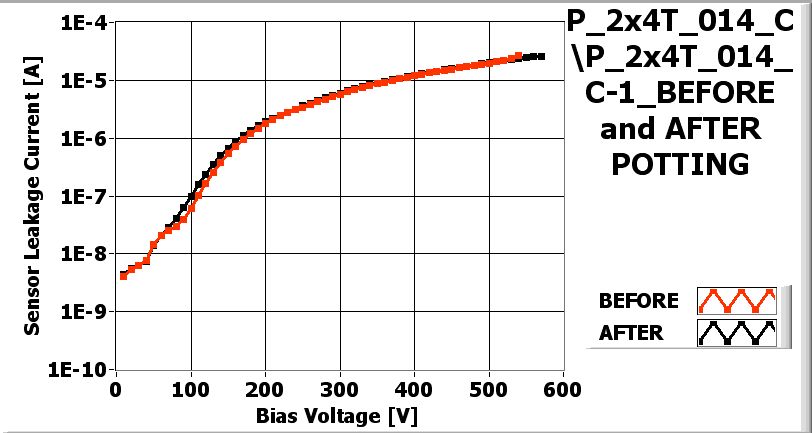

P_2x4T_014_C-1on 2/20/2007 3:08 PM AFTER POTTING

BAD CHANNELS COMPARISON XML-files/NOW

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 1/1 0/0 0/0 0/1 1/1

ROC1 0/0 0/0 0/0 0/0 0/0

ROC2 0/0 0/0 0/0 0/1 0/0

ROC3 0/0 0/0 0/0 0/0 0/0

ROC4 0/0 0/0 0/0 0/0 0/0

ROC5 0/0 0/0 4/11 0/0 0/0

ROC6 0/0 0/0 0/0 0/0 0/0

ROC7 0/0 0/0 0/0 1/0 0/0

Plaquette Ready for SHIPPING

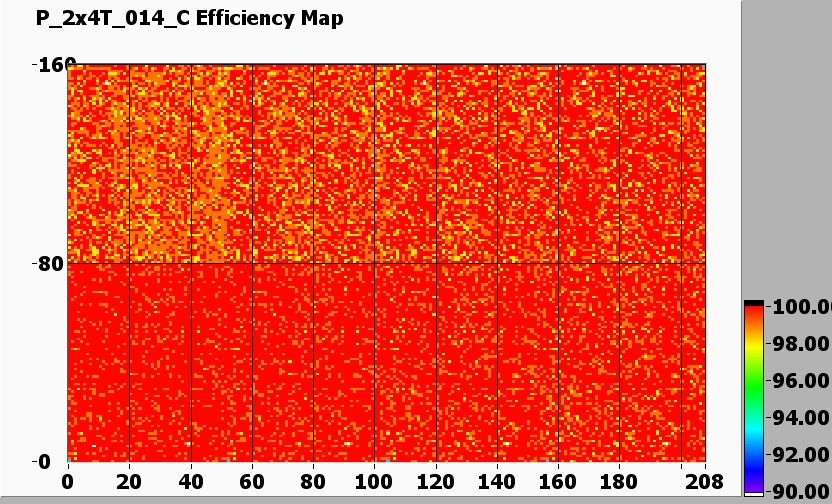

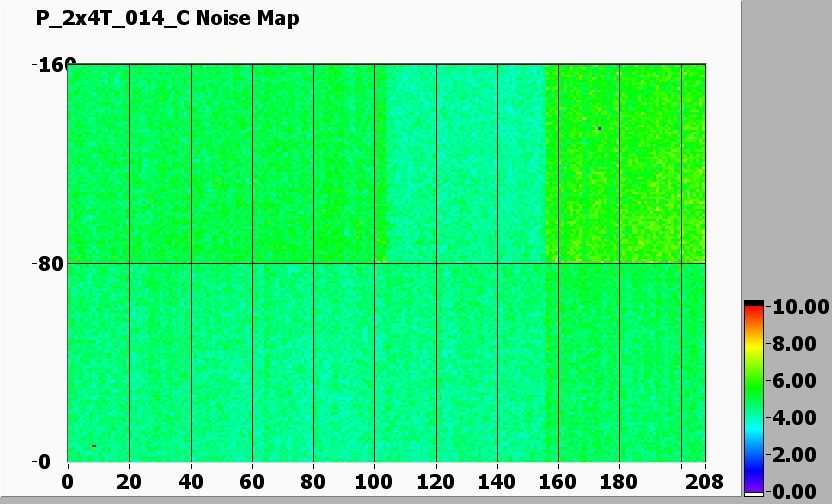

NOISE measurement taken at -250 V and current -4.120570E-06 , Acurrent 0.226364, Dcurrent 0.400108

Noise MAP

Efficiency MAP

NOISE HISTO

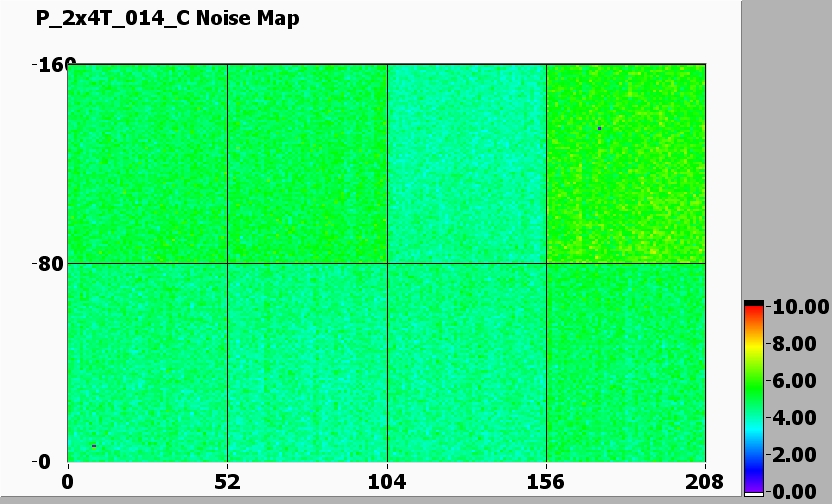

NOISE measurement taken at -300 V and current -6.616323E-06 , Acurrent 0.226517, Dcurrent 0.400093

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -350 V and current -9.786583E-06 , Acurrent 0.226594, Dcurrent 0.400102

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -400 V and current -1.312977E-05 , Acurrent 0.226489, Dcurrent 0.400088

Noise MAP

Efficiency MAP

NOISE HISTO

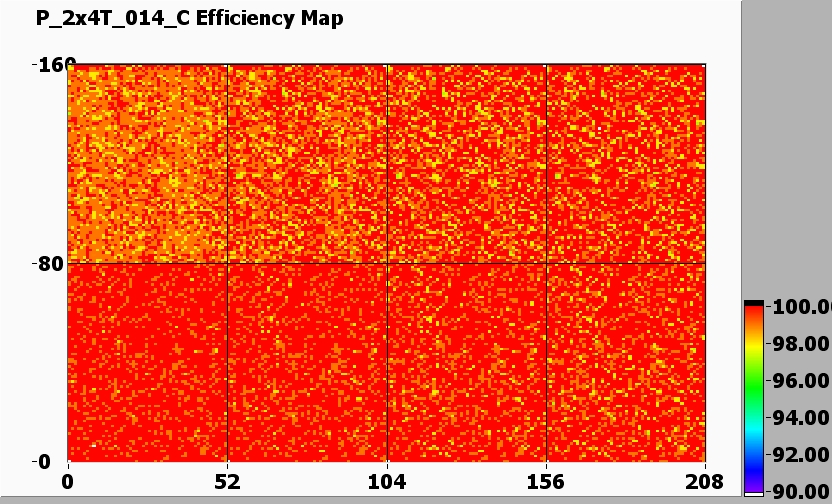

NOISE measurement taken at -450 V and current -1.749009E-05 , Acurrent 0.226396, Dcurrent 0.400127

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -500 V and current -2.099845E-05 , Acurrent 0.226634, Dcurrent 0.400123

Noise MAP

Efficiency MAP

NOISE HISTO

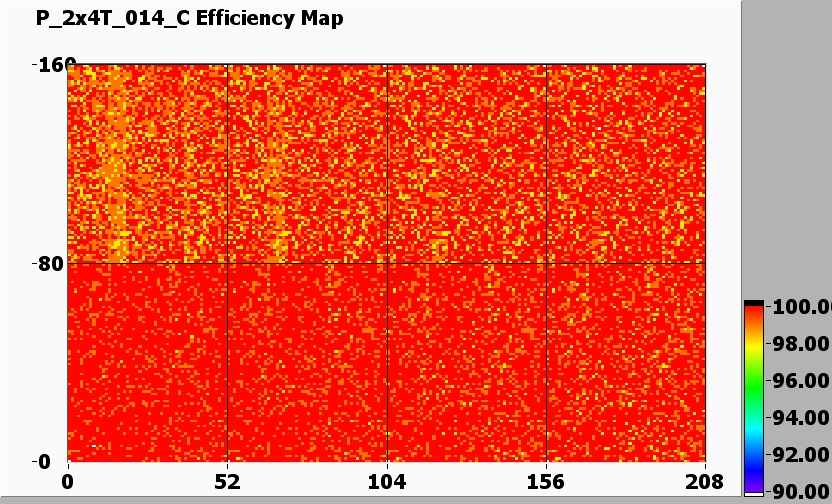

NOISE measurement taken at -550 V and current -2.551059E-05 , Acurrent 0.226788, Dcurrent 0.400145

Noise MAP

Efficiency MAP

NOISE HISTO

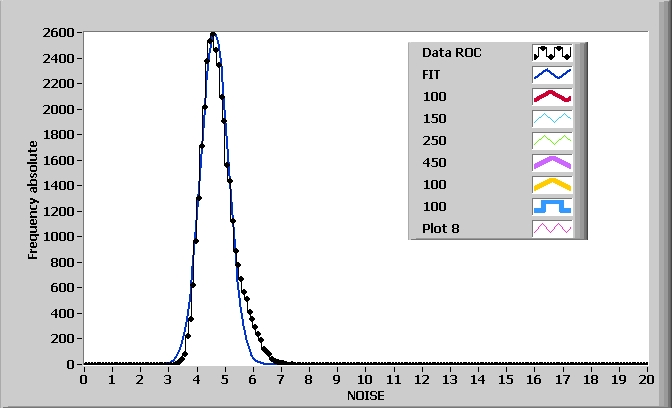

NOISE measurement taken at -800 V and current -5.889817E-05 , Acurrent 0.226582, Dcurrent 0.400086

Noise MAP

Efficiency MAP

NOISE HISTO

Shipped on date 2007-02-22
