![[IMAGE] of](P_2x4T_006_A_IV.jpg)
| IV_XML-File |

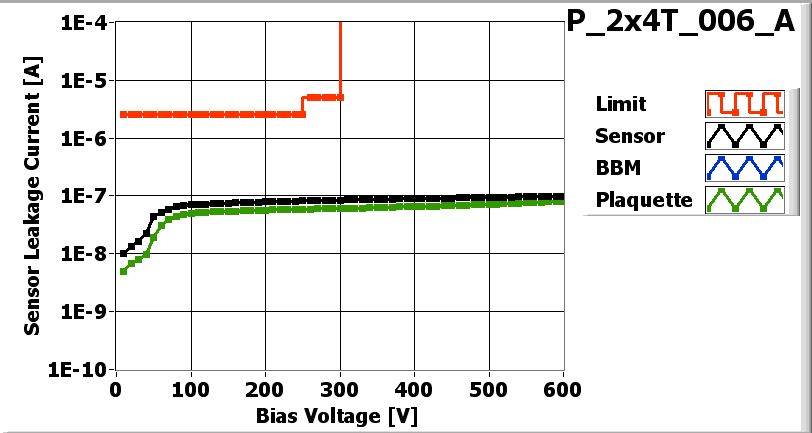

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_006_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 8/9/2007
| Part | ID |
|---|---|
| BBM | BBM_006-2x4T |
| VHDI | 2x4_435 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 57D |
| ROC1 | X14JP6T | 57C |
| ROC2 | X14JP6T | 57B |
| ROC3 | X14JP6T | 56D |
| ROC4 | X14JP6T | 38A |
| ROC5 | X14JP6T | 38C |
| ROC6 | XX4JPAT | 04D |
| ROC7 | XX4JPAT | 05B |
This plaquette was reworked. Old results here
Inspected by Lockwood Gale on date 8/15/2007
| LR_dev | 0.025 |
| LL_dev | 0.013 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | NO ASSEMBLY PROBLEMS No wirebonding problems |
PLAQUETTE made READY for ENCAPSULATION on 8/15/2007 by Lockwood Gale
PLAQUETTE encapsulated on 8/15/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/15/2007 by Ozhan Koybasi
P_2x4T_006_Aon 8/15/2007 3:09 PM
P_2x4T_006_Aon 8/15/2007 3:09 PM
PLAQUETTE TESTED on 2007-08-15 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 150 | 150 | 140 | 148 | 140 | 146 | 144 | 160 | |
| Vana | 137 | 138 | 115 | 108 | 122 | 131 | 127 | 138 | |
| Cal_Del | 79 | 71 | 80 | 72 | 80 | 90 | 77 | 81 | |
| Vthrs_Comp | 75 | 76 | 75 | 67 | 72 | 72 | 73 | 79 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_006_A_Ibias-dac.jpg) |

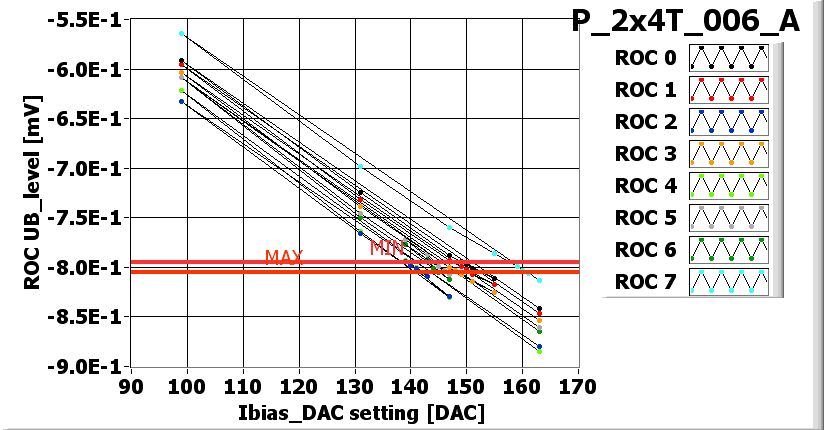

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_006_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_006_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_006_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_006_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_006_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 110 | 140 | 160 | 140 | 115 | 120 | 110 |
| Vsf | 140 | 140 | 125 | 130 | 135 | 140 | 135 | 140 |
| VoffsetOp | 60 | 50 | 35 | 30 | 65 | 65 | 65 | 90 |
| VIbias_PH | 100 | 100 | 95 | 105 | 105 | 105 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x4T_006_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_006_A-580-efficiency.jpg)

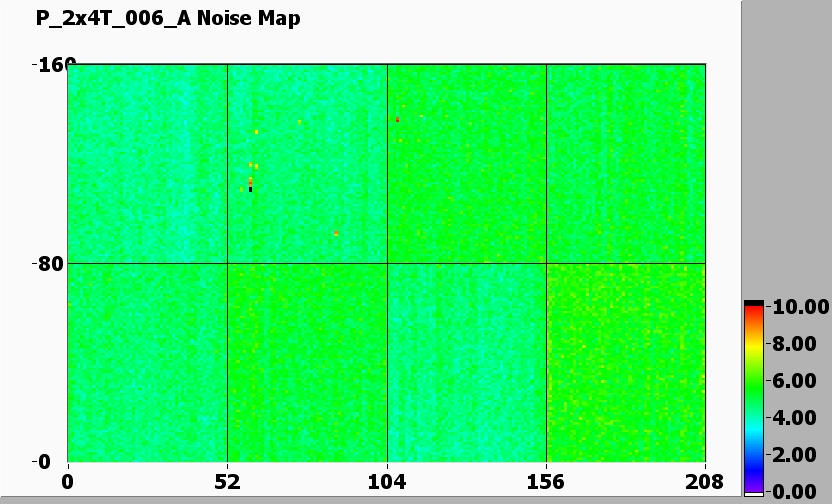

Noise MAP at -200 V
![[IMAGE] of](P_2x4T_006_A-200-noise.jpg)

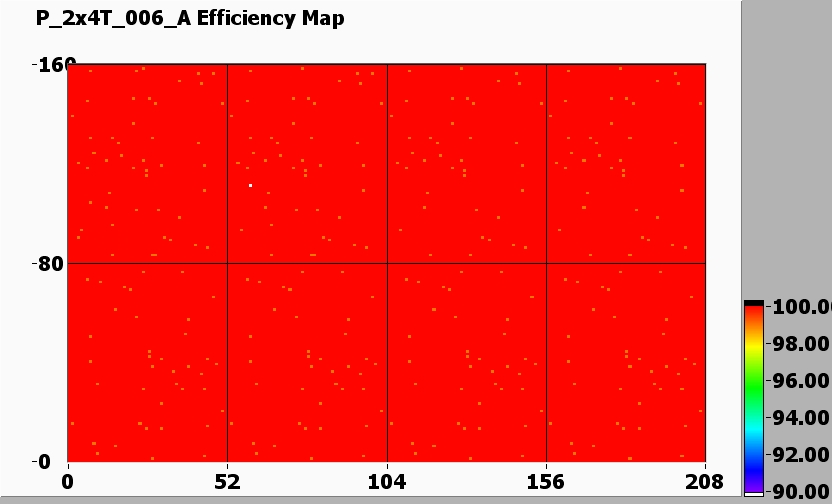

Efficiency MAP
![[IMAGE] of](P_2x4T_006_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
