P_2x4B_181_C-1

Production testing

Date:5/21/2007

Operator: Emily Grace

start testing time:10:22 AM

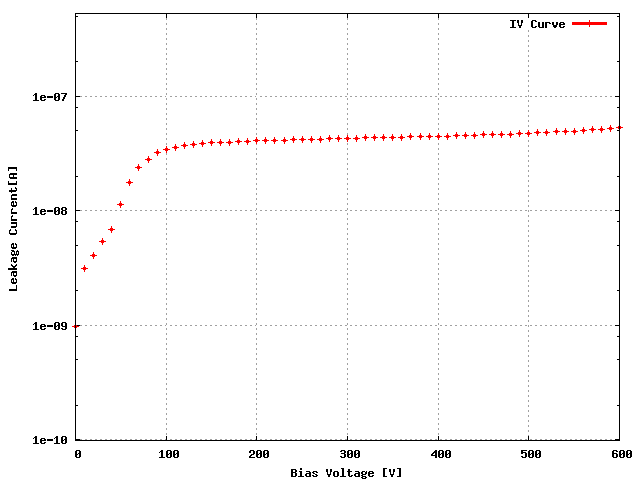

Sensor: S_2x4B_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KBNG0QT27B
ROC1KBNG0QT66A
ROC2KBNG0QT36B
ROC3KBNG0QT36D
ROC4KBNG0QT26A
ROC5KBNG0QT47C
ROC6KBNG0QT58C
ROC7KBNG0QT47A

Depletion Voltage is -56 and suggested operational voltage is -96
Ibias_DAC, Ibias_DAC Data 158 164 150 156 144 166 164 154
Vana, VanaData 127 143 138 131 127 157 135 143
CalDelData and plots7780767274747178
VthrCompData and plots8090797773928782
TestDdata ,TestD Plots80102000
LightData ,Light Plots80200000
Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe9510010013011510011590
Vsf140145140140135155140145
VoffsetOp70115907575959085
VIbias_PH1051009510010010095100
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.693218

SIGMA = 0.370446
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 3.921193

SIGMA = 0.317737

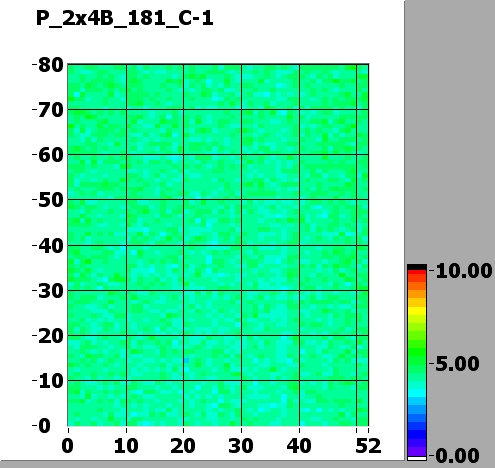

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.233957

SIGMA = 0.338659
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.126784

SIGMA = 0.322494
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.821911

SIGMA = 0.398347

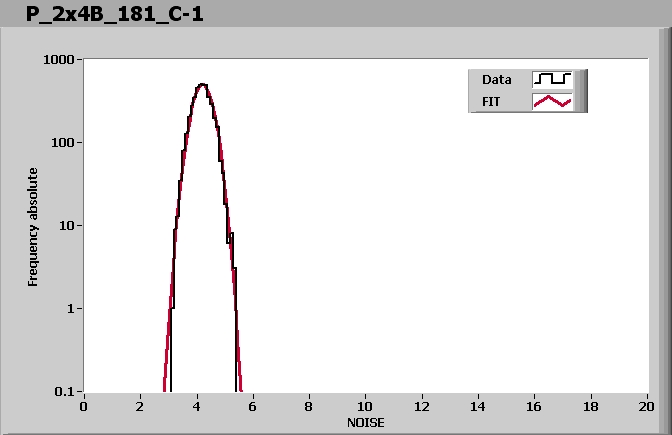

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.202294

SIGMA = 0.331214
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.086914

SIGMA = 0.348177

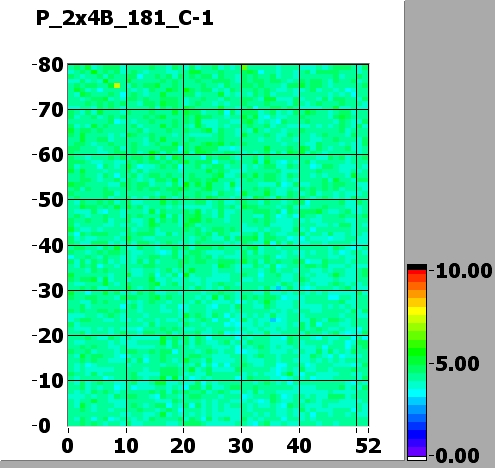

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.139702

SIGMA = 0.349562

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x4B_181_C.html,

End testing time: 10:47 AM
