P_2x4B_169

P_2x4B_169_A

Parts committed by Isaac Childres on date 5/10/2007

Part	ID
BBM	BBM_169-2x4B
VHDI	2x4_644

ROC ROC wafer Label

ROC0 W46_D3LQC5T 54A

ROC1 W46_D3LQC5T 53B

ROC2 W46_D3LQC5T 53A

ROC3 W46_D3LQC5T 52D

ROC4 W45_D3LQFCT 14D

ROC5 W45_D3LQFCT 15A

ROC6 W45_D3LQFCT 15B

ROC7 W45_D3LQFCT 15C

ROC	ROC wafer	Label
ROC0	W46_D3LQC5T	54A
ROC1	W46_D3LQC5T	53B
ROC2	W46_D3LQC5T	53A
ROC3	W46_D3LQC5T	52D
ROC4	W45_D3LQFCT	14D
ROC5	W45_D3LQFCT	15A
ROC6	W45_D3LQFCT	15B
ROC7	W45_D3LQFCT	15C

Inspected by Lockwood Gale on date 5/31/2007

LR_dev 0.043

LL_dev 0.047

PLAQUETTE GLUED with FULL PRESSURE

FINAL COMMENT by Lockwood Gale

No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 5/31/2007 by Lockwood Gale

PLAQUETTE encapsulated on 5/31/2007 by Kozak Brian

PLAQUETTE made READY for testing on 5/31/2007 by Kozak Brian

P_2x4B_169_Aon 6/1/2007 9:55 AM

P_2x4B_169_A-1on 6/1/2007 10:23 AM

P_2x4B_169_A-2on 6/1/2007 10:44 AM

PLAQUETTE TESTED on 2007-06-01 by Gino Bolla

IV_XML-File

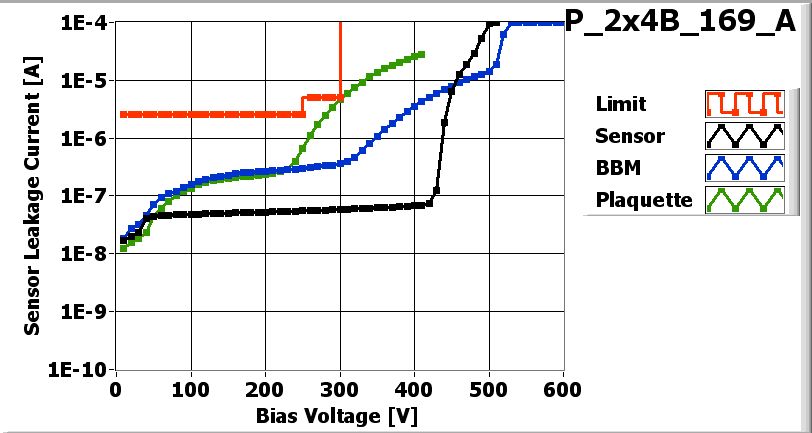

Maximum Voltage 410 V

LASER_XML-File

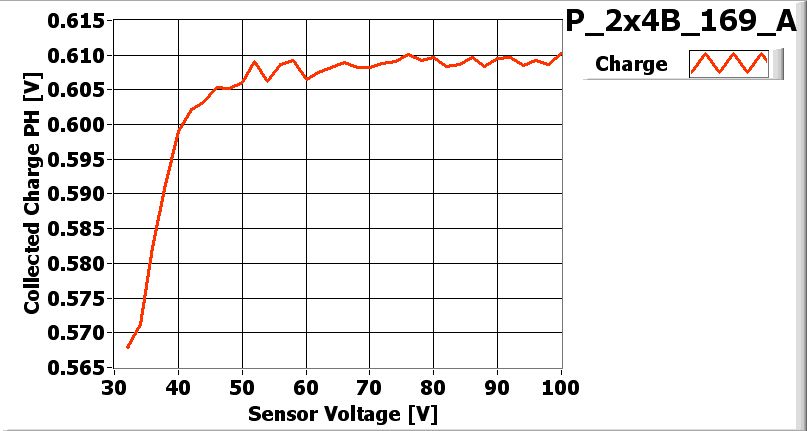

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

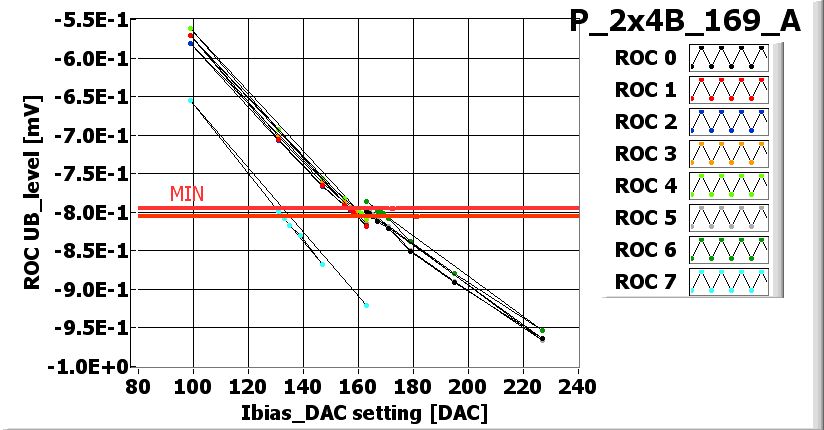

Ibias_DAC	164	158	158	158	160	164	168	132

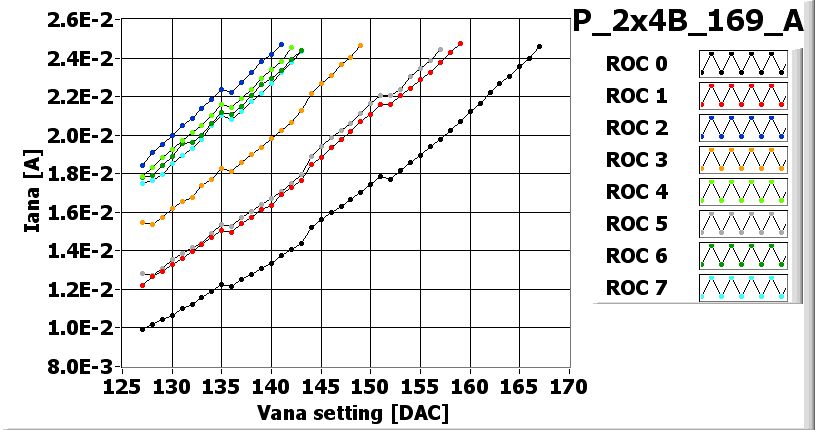

Vana	167	159	141	149	142	157	143	143
Cal_Del	72	77	77	75	72	76	81	101
Vthrs_Comp	87	89	90	92	90	90	88	76
Unbumped	0	0	0	0	0	0	0	0
Dead	5	0	0	0	0	0	1	49
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	5	0	0	0	0	0	1	49

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	105	95	95	100	95	90	100	105
Vsf	165	155	145	155	145	155	145	145
VoffsetOp	130	120	100	105	95	125	100	95
VIbias_PH	95	95	100	105	100	100	100	100

Noise MAP at VMAX

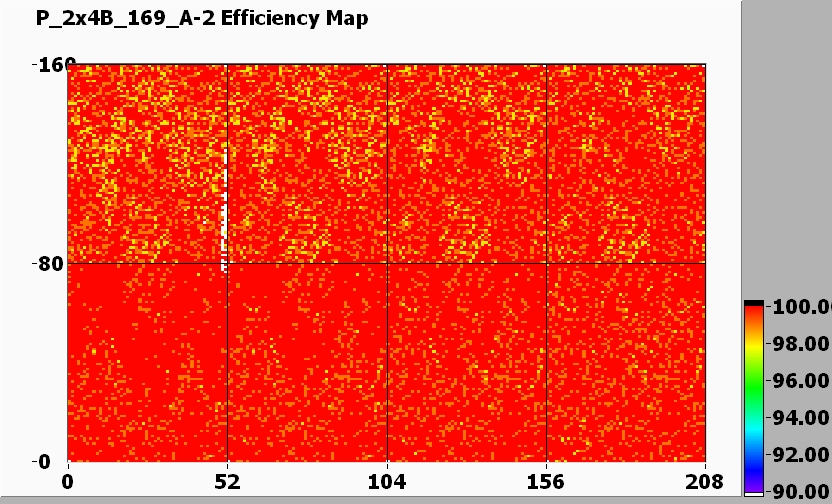

Efficiency MAP

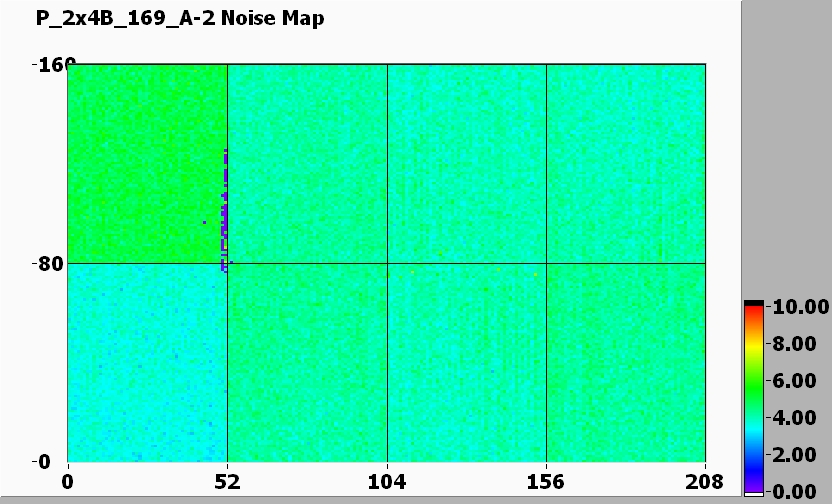

Noise MAP at -200 V

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-04
