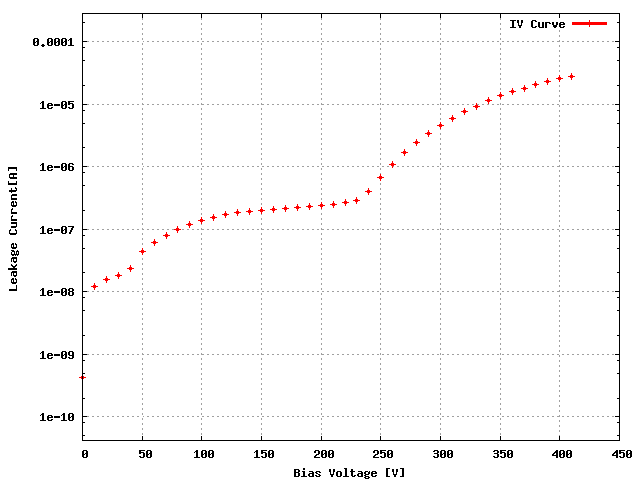

Sensor: S_2x4B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W46_D3LQC5T | 54A |
ROC1 | W46_D3LQC5T | 53B |
ROC2 | W46_D3LQC5T | 53A |
ROC3 | W46_D3LQC5T | 52D |
ROC4 | W45_D3LQFCT | 14D |
ROC5 | W45_D3LQFCT | 15A |
ROC6 | W45_D3LQFCT | 15B |
ROC7 | W45_D3LQFCT | 15C |
Ibias_DAC, Ibias_DAC Data | 164 | 158 | 158 | 158 | 160 | 164 | 168 | 132 |
Vana, VanaData | 167 | 159 | 141 | 149 | 142 | 157 | 143 | 143 |
CalDelData and plots | 72 | 77 | 77 | 75 | 72 | 76 | 81 | 101 |
VthrCompData and plots | 87 | 89 | 90 | 92 | 90 | 90 | 88 | 76 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 5 | 0 | 0 | 0 | 1 | 0 | 1 | 49 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

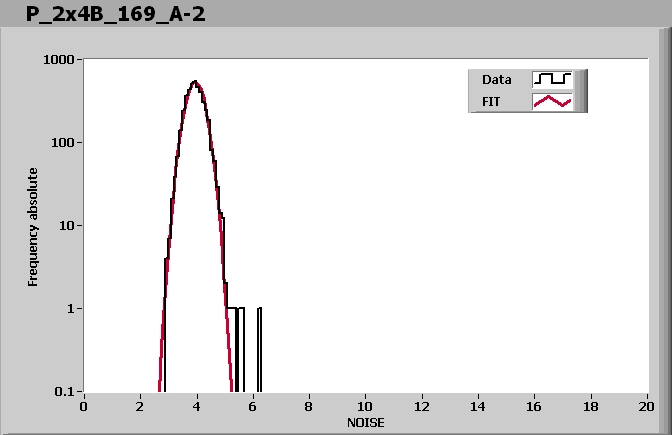

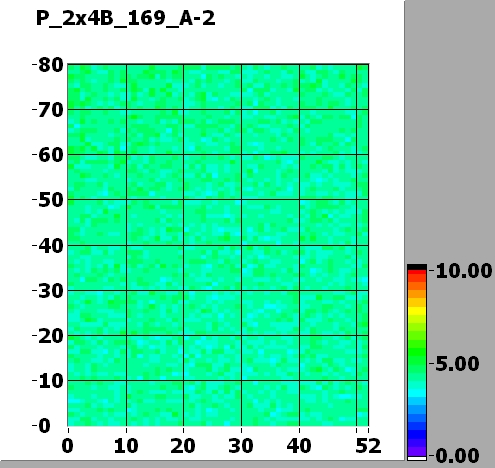

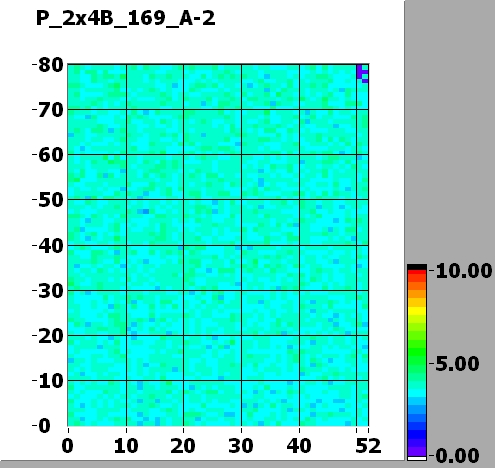

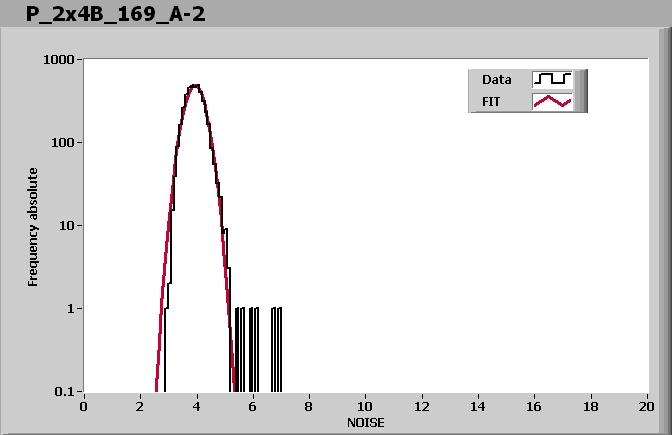

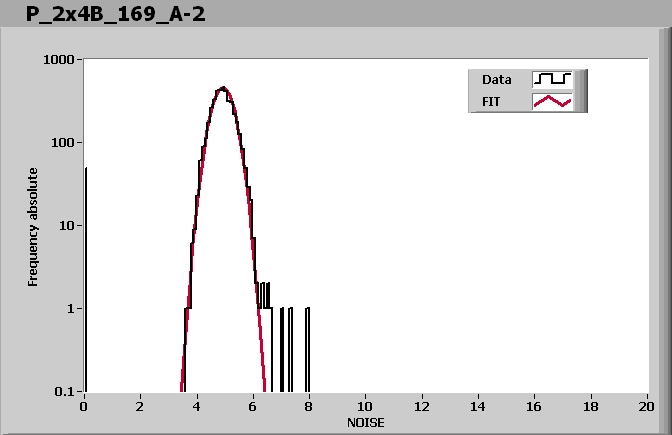

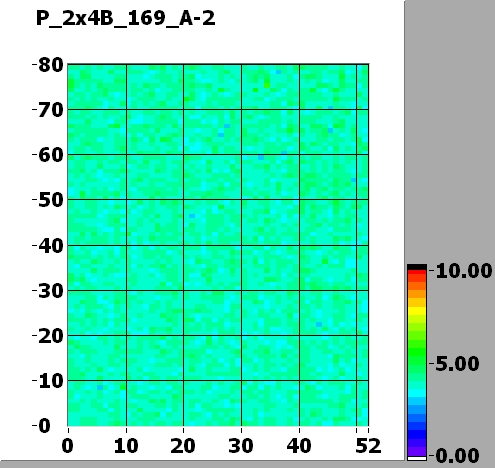

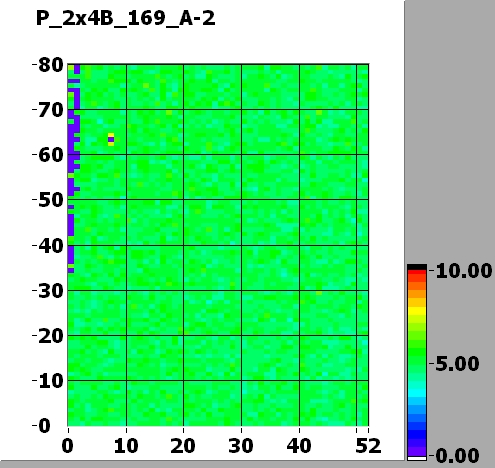

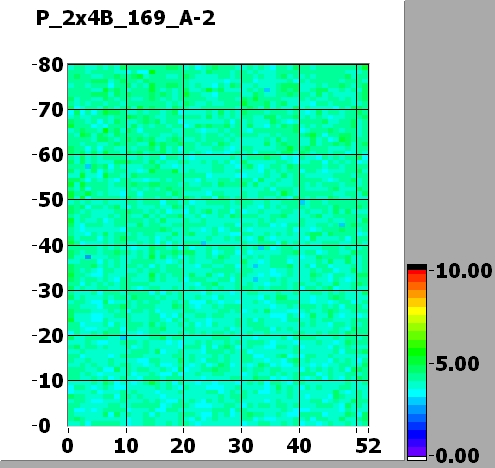

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 105 | 95 | 95 | 100 | 95 | 90 | 100 | 105 |
Vsf | 165 | 155 | 145 | 155 | 145 | 155 | 145 | 145 |
VoffsetOp | 130 | 120 | 100 | 105 | 95 | 125 | 100 | 95 |
VIbias_PH | 95 | 95 | 100 | 105 | 100 | 100 | 100 | 100 |
Comment (if any):
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 11:11 AM
