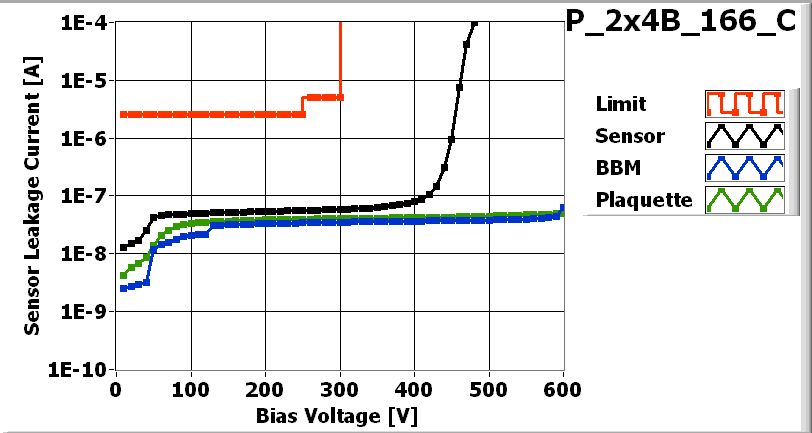

![[IMAGE] of](P_2x4B_166_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_166_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 56 V |
| Operational Voltage 96 V |
Parts committed by Bolla Gino on date 3/19/2007
| Part | ID |
|---|---|
| BBM | BBM_166-2x4B |
| VHDI | 2x4_486 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 65B |
| ROC1 | XH4KFBT | 65A |
| ROC2 | XH4KFBT | 64B |
| ROC3 | XH4KFBT | 63B |
| ROC4 | XH4KFBT | 62B |
| ROC5 | XH4KFBT | 62A |
| ROC6 | XH4KFBT | 61A |
| ROC7 | XH4KFBT | 66C |
Inspected by Arndt Kirk on date 3/20/2007
| LR_dev | 0.018 |
| LL_dev | 0.065 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. Solder seen on VHDI pad for ROC0 chn 8 wirebond. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 3/20/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/21/2007 by Ozhan Koybasi
P_2x4B_166_Con 3/22/2007 12:19 PM
P_2x4B_166_Con 3/22/2007 12:19 PM
PLAQUETTE TESTED on 2007-03-22 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 160 | 140 | 124 | 138 | 130 | 130 | 138 | 144 | |
| Vana | 141 | 126 | 107 | 114 | 117 | 116 | 133 | 139 | |
| Cal_Del | 64 | 75 | 100 | 92 | 94 | 83 | 75 | 71 | |
| Vthrs_Comp | 82 | 89 | 66 | 67 | 65 | 65 | 76 | 79 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 15 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 15 | 0 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

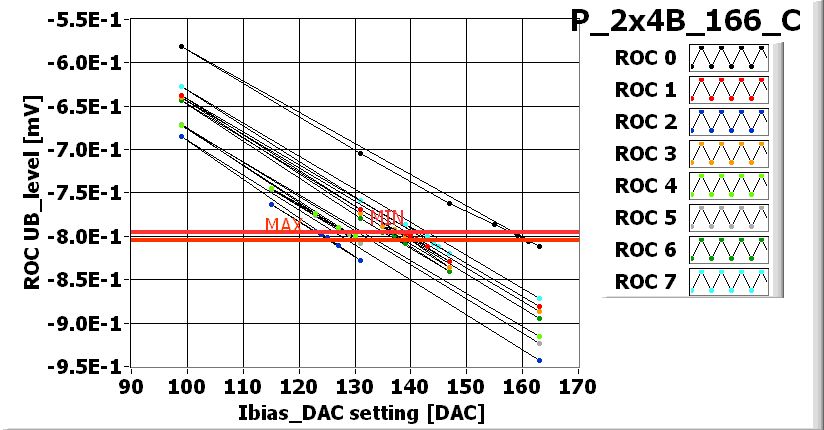

![[IMAGE] of](P_2x4B_166_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4B_166_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_166_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_166_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |

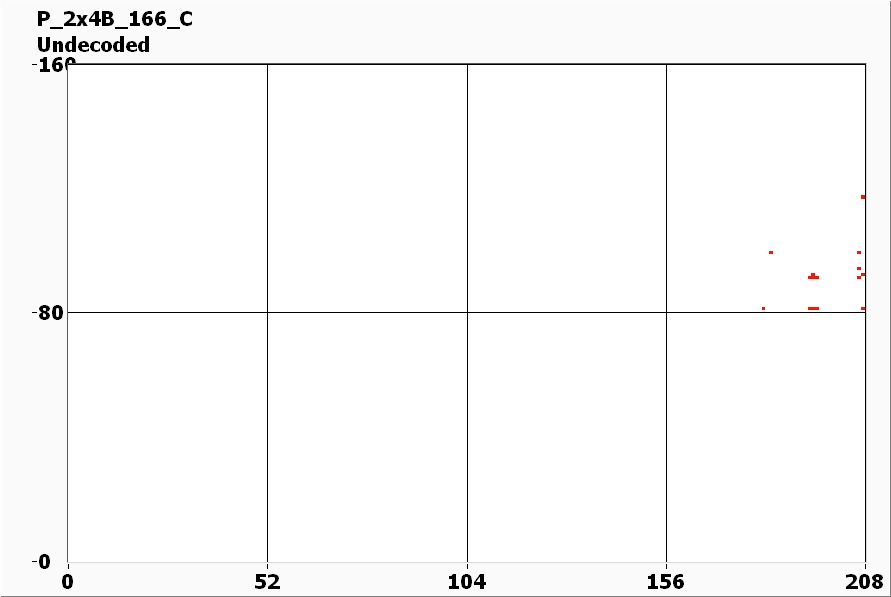

![[IMAGE] of](P_2x4B_166_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_166_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 140 | 175 | 130 | 130 | 125 | 120 | 85 |
| Vsf | 140 | 140 | 130 | 130 | 135 | 140 | 140 | 145 |
| VoffsetOp | 105 | 85 | 65 | 75 | 70 | 60 | 65 | 60 |
| VIbias_PH | 100 | 100 | 100 | 100 | 100 | 95 | 100 | 100 |

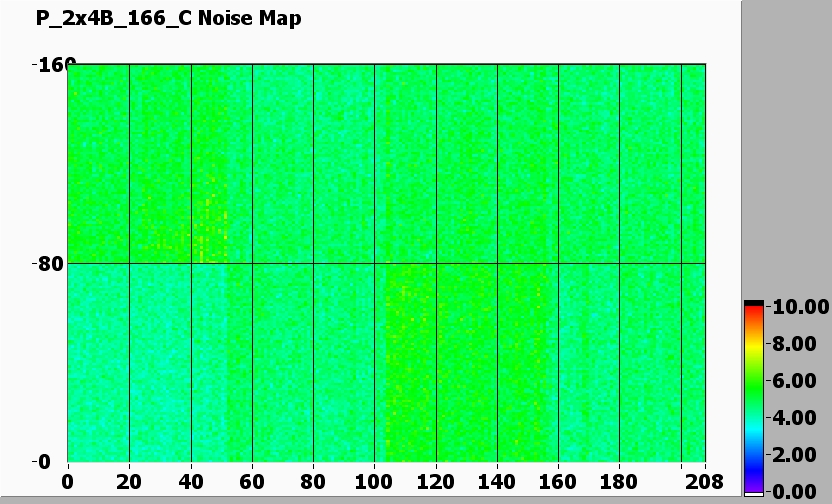

Noise MAP
![[IMAGE] of](P_2x4B_166_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_166_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
