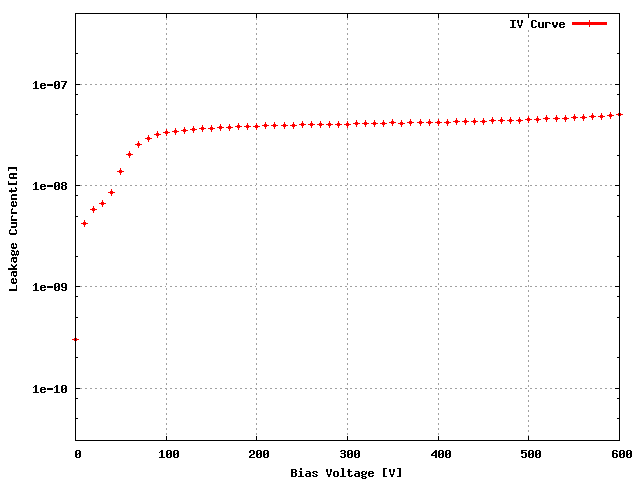

Sensor: S_2x4B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	65B
ROC1	XH4KFBT	65A
ROC2	XH4KFBT	64B
ROC3	XH4KFBT	63B
ROC4	XH4KFBT	62B
ROC5	XH4KFBT	62A
ROC6	XH4KFBT	61A
ROC7	XH4KFBT	66C

Depletion Voltage is -56 and suggested operational voltage is -96

Ibias_DAC, Ibias_DAC Data	160	140	124	138	130	130	138	144
Vana, VanaData	141	126	107	114	117	116	133	139
CalDelData and plots	64	75	100	92	94	83	75	71
VthrCompData and plots	82	89	66	67	65	65	76	79
TestDdata ,TestD Plots	0	0	0	1	15	0	1	2
LightData ,Light Plots	1	0	0	0	0	0	0	2
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

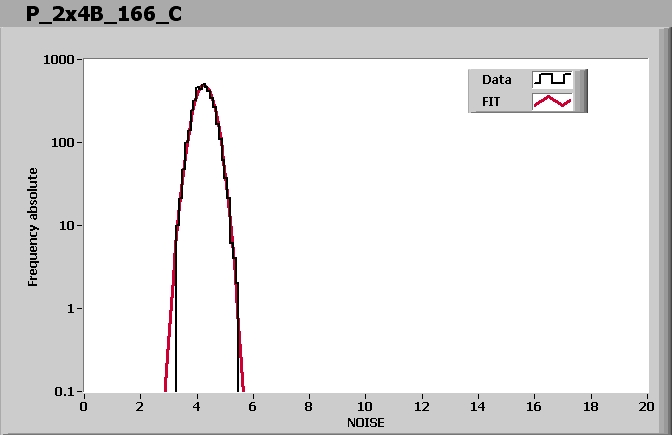

ROC0 NOISE			MEAN = 4.256361 SIGMA = 0.336690
ROC1 NOISE			MEAN = 4.594975 SIGMA = 0.350828

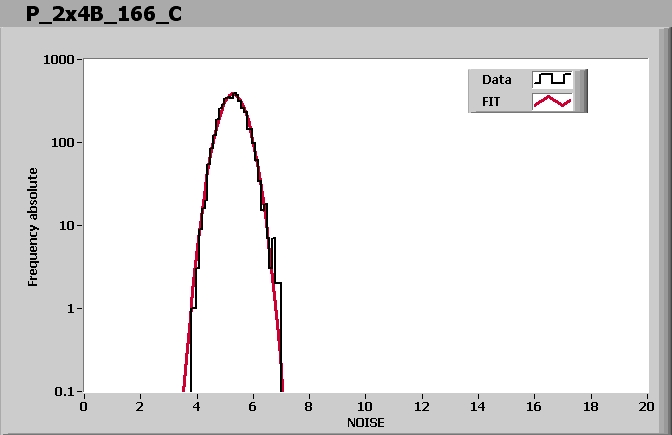

ROC2 NOISE			MEAN = 5.289838 SIGMA = 0.435986
ROC3 NOISE			MEAN = 4.600449 SIGMA = 0.369772

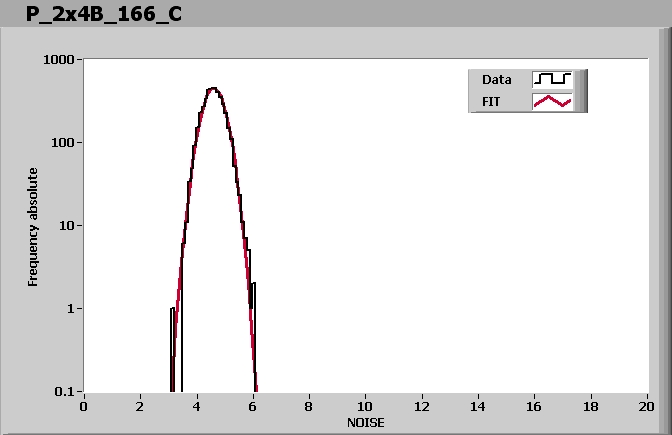

ROC4 NOISE			MEAN = 4.734237 SIGMA = 0.373887
ROC5 NOISE			MEAN = 4.890091 SIGMA = 0.396772
ROC6 NOISE			MEAN = 4.636717 SIGMA = 0.354301

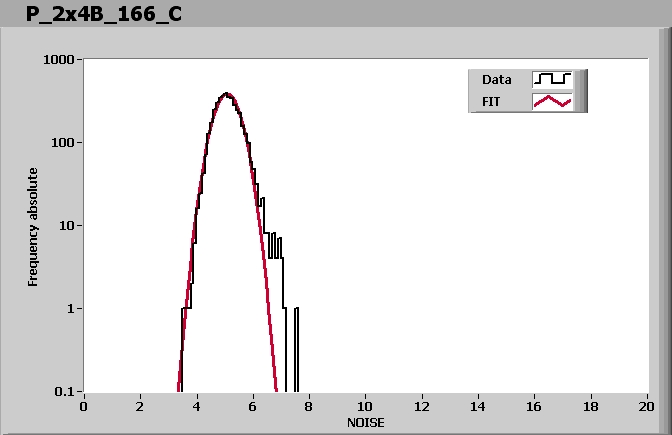

ROC7 NOISE			MEAN = 5.074371 SIGMA = 0.426464

Comment (if any): Good

End testing time: 12:39 PM
